CLEARANCE & BACK SONAR

5201

8606

89341ASENSOR, ULTRASONIC, NO.1

main89341-28480-A0×2i201203-201210

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,WHITE PEARL CS.,070

main89341-28480-A1×2i201203-201210

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SUPER WHITE 2,040

main89341-28480-B1×2i201203-201210

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,SILVER ME.,1F7

main89341-28480-B5×2i201504-202108

BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),GRAY ME.,1G3

main89341-28480-C0×2i201203-201210

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK,202

main89341-28480-C2×2i201504-202108

HEADLAMP-LED & *AHB&BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),ATTITUDE BLACK MC.,218

main89341-28480-C3×2i201605-202108

HEADLAMP-LED & *AHB&BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),BLACKISH AGEHA GF.,221

main89341-28480-D0×2i201711-202008

BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),DK. RED M.M.,3Q3

main89341-28480-D1×2i201203-201504

HEADLAMP-LED&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,RED M.M.,3R3

main89341-28480-D6×2i202008-202108

BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),RED MC.,3T3

main89341-28480-E3×2i201504-202108

HEADLAMP-LED & *AHB&BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),DARK SHERRY M.M.,4W4

main89341-28480-E4×2i201711-202108

HEADLAMP-LED & *AHB&BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),STEEL BLONDE ME.,4X1

main89341-28480-J2×2i201504-201605

BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),DK.BLUE MC.,8T5

main89341-28480-P1×2i202008-202108

BACK MONITOR-WITH(INTELLIGENT PARKING ASSIST),SILVER ME.,1D6

89348DCLIP, ULTRASONIC SENSOR

main89348-33090×2i201203-201210

AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH

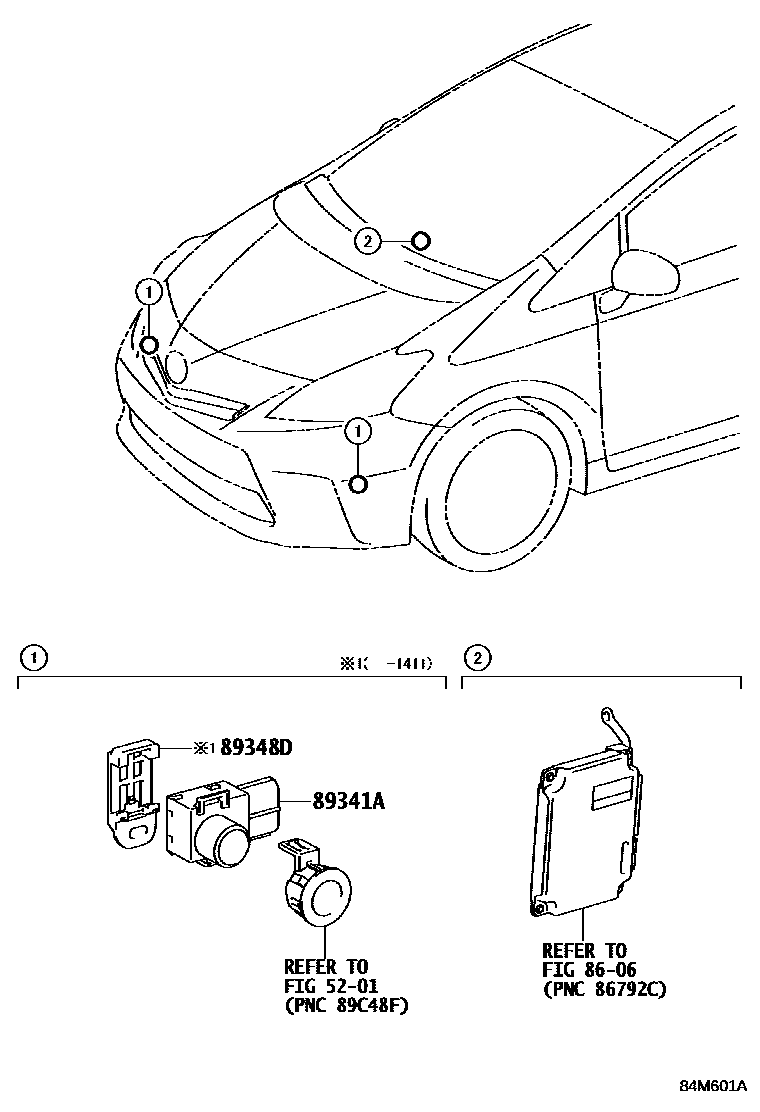

4 parts on this diagram · 1 diagram in section
