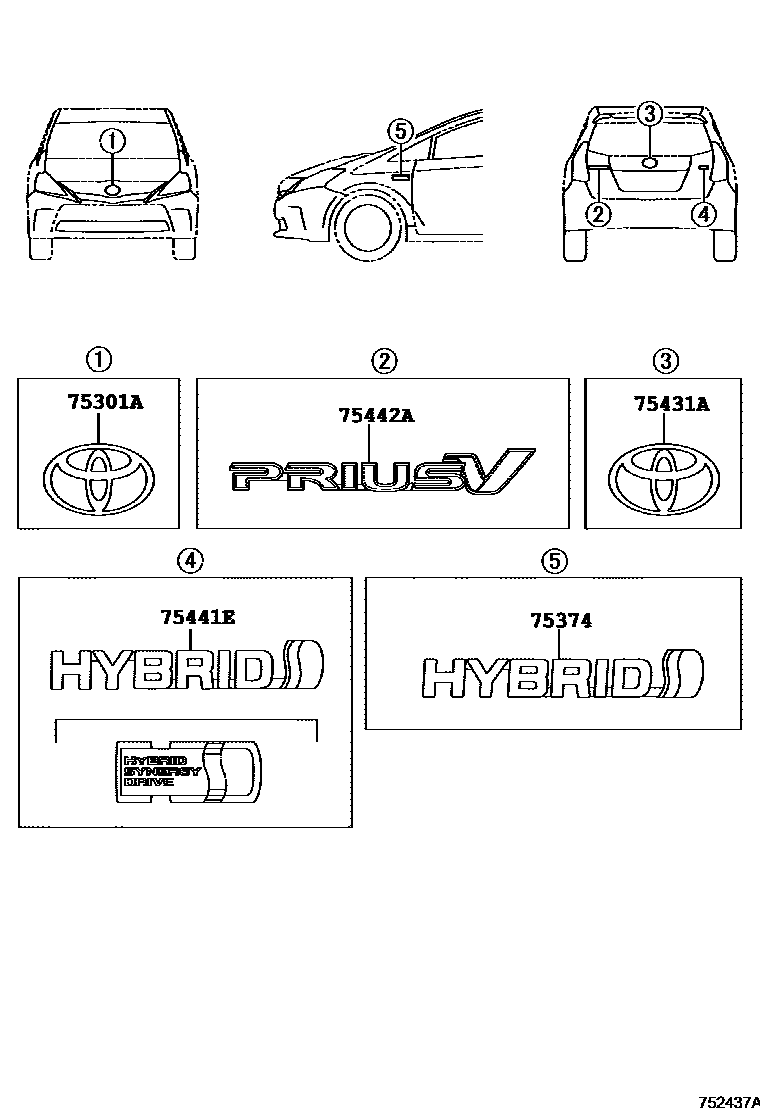

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75301AEMBLEM SUB-ASSY, FRONT BUMPER

main53141-33140iZVW40201712-202108

main53141-47011supersedes 75310-47010iZVW40201709-201712

PRE-COLLISION SYSTEM-WITH

main53141-47012supersedes 75310-47010iZVW40201504-201709

PRE-COLLISION SYSTEM-WITH

75374EMBLEM, SIDE PANEL

main75374-47061iZVW40201203-201504

LH

main75374-47062iZVW40202008-202108

LH

main75374-47111iZVW40201504-202008

RH

main75374-47112iZVW40202008-202108

RH

75431AEMBLEM, BACK DOOR, NO.1

main75310-47020iZVW40201203-201504

75441EPLATE, BACK DOOR NAME, NO.1

main75441-47021iZVW40201203-201504

HYBRID SYNERGY DRIVE

main75441-47130iZVW40201712-202108

HYBRID S

75442APLATE, BACK DOOR NAME, NO.2

main75442-47060iZVW40201203-201504

PRIUS V

5 parts on this diagram · 1 diagram in section
