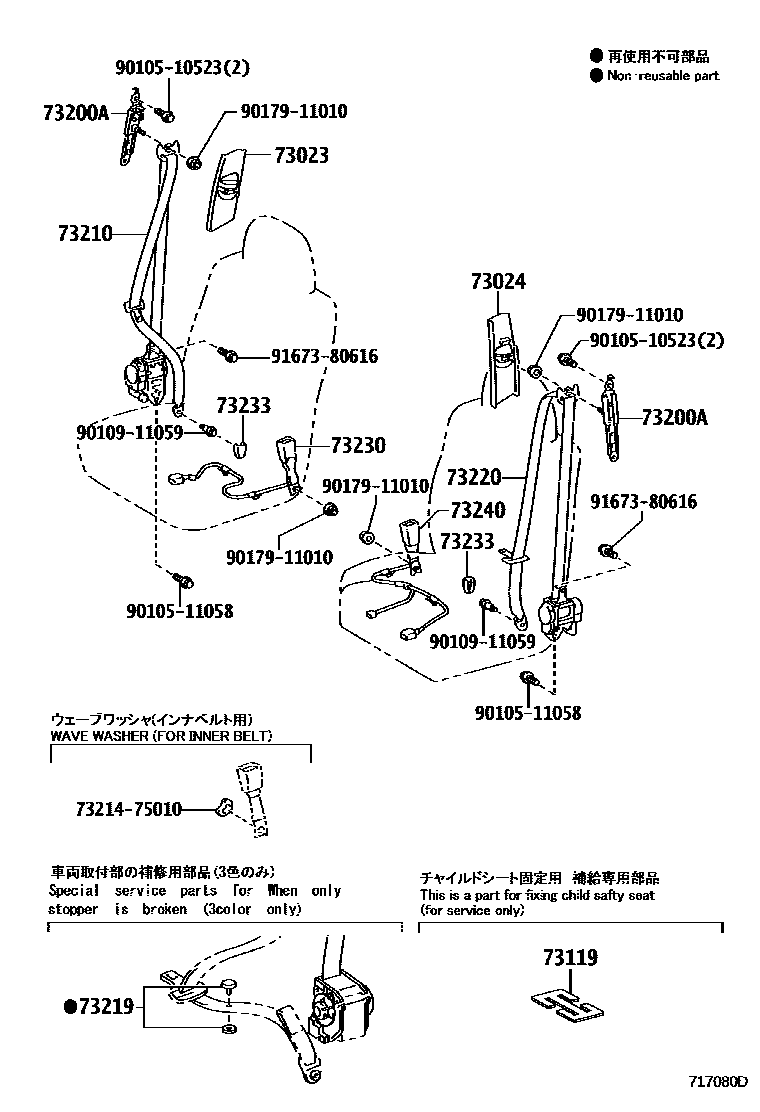

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0iZVW40201203-201504

LT.GRAY,TRIM1#,6#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0iZVW40201504-202108

LT.GRAY,TRIM1#,2#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZVW40201203-201504

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iZVW40201507-202108

main73200-53010×2iZVW40201203-201504

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47310-B0iZVW40201504-201507

BLACK,TRIM1#,2#

main73210-47311-B0iZVW40201508-202108

BLACK,TRIM1#,2#

main73210-47200-B0iZVW40201210-201301

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#

main73210-47200-B1iZVW40201210-201301

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,GRAY,TRIM6#

main73210-47201-B0supersedes 73210-47191-B0iZVW40201302-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#

main73210-47201-B1supersedes 73210-47191-B1iZVW40201302-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,GRAY,TRIM6#

73219STOPPER, TONGUE PLATE

main73219-33010iZVW40201203-201504

BLACK

main73219-33020iZVW40201504-202108

GRAY

main73219-33030iZVW40201203-201504

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47250-B0iZVW40201504-201507

BLACK,TRIM1#,2#

main73220-47251-B0iZVW40201508-202108

BLACK,TRIM1#,2#

main73220-47170-B0iZVW40201210-201301

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#

main73220-47170-B1iZVW40201210-201301

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,GRAY,TRIM6#

main73220-47171-B0supersedes 73220-47161-B0iZVW40201302-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#

main73220-47171-B1supersedes 73220-47161-B1iZVW40201302-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,GRAY,TRIM6#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-47150-C0iZVW40201203-201504

BLACK,TRIM1#

sub73230-47110

main73230-47150-G0iZVW40201203-201504

AQUA,TRIM6#

sub73230-47110

main73230-47160-C0iZVW40201210-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#

sub73230-47120

main73230-47160-G0iZVW40201210-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,AQUA,TRIM6#

sub73230-47120

main73230-47510-C0supersedes 73230-47380-C0iZVW40201504-202108

LUXURY PACKAGE,BLACK,TRIM1#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iZVW40201203-201504

BLACK,TRIM1#,6#

sub73233-35010

main73233-60020-C1×2iZVW40201610-202108

BLACK,TRIM1#,2#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-47060-C0iZVW40201203-201504

BLACK,TRIM1#

main73240-47060-G0iZVW40201203-201504

AQUA,TRIM6#

main73240-47140-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main73240-47070-C0iZVW40201210-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#

main73240-47070-G0iZVW40201210-201504

LUXURY PACKAGE&PRE-COLLISION SYSTEM-WITH,AQUA,TRIM6#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9017911010

main90179-11010

9167380616

main91673-80616

16 parts on this diagram · 3 diagrams in section
