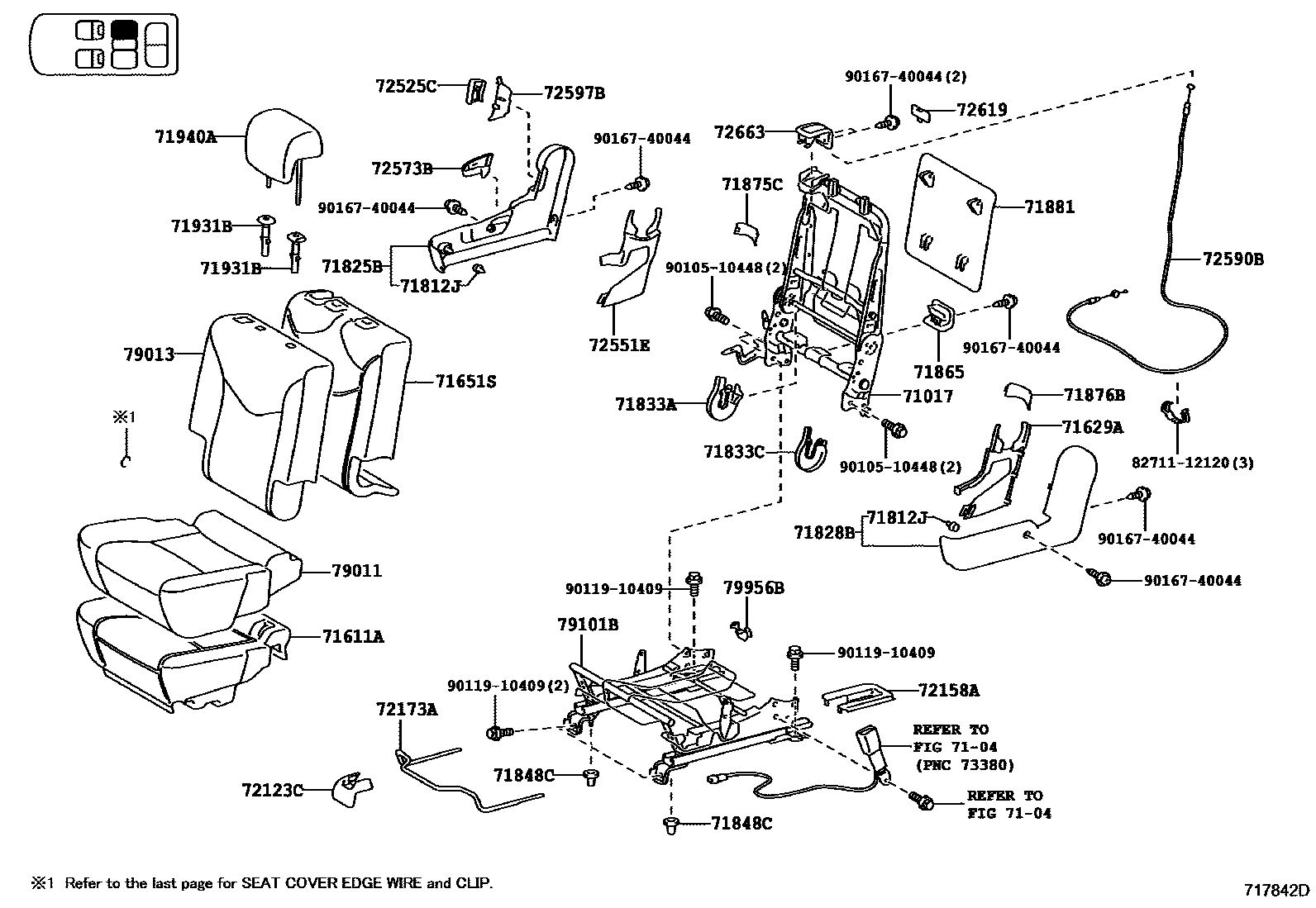

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT,RH 0002 1REAR NO.1 SEAT,CENTER 0003 1REAR NO.1 SEAT,LH 0004 1REAR NO.2 SEAT 0005 1SEAT COVER EDGE WIRE & CLIP 0006 1SEAT COVER EDGE WIRE & CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47210iZVW40201504-202108

7104

71611APAD, REAR SEAT CUSHION, RH

main71611-47070iZVW40201203-201504

71629ACOVER, REAR SEAT CUSHION HINGE, RH

main71629-47020-B0iZVW40201203-201504

DK.GRAY,TRIM1#

main71629-47020-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main71629-47020-G0iZVW40201203-201504

AQUA,TRIM6#

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47110iZVW40201203-201504

71812JCLIP, REAR SEAT COVER

main71769-47020×6iZVW40201207-201504

71825BMOULDING, REAR SEAT CUSHION, RH

main71825-47030-B0iZVW40201203-201504

DK.GRAY,TRIM1#

main71825-47030-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main71825-47030-G0iZVW40201203-201504

AQUA,TRIM6#

71828BMOULDING, REAR SEAT CUSHION, REAR RH

main71828-47020-B0×2iZVW40201203-201504

DK.GRAY,TRIM1#

main71828-47020-C0×2iZVW40201504-202108

BLACK,TRIM1#,2#

main71828-47020-G0×2iZVW40201203-201504

AQUA,TRIM6#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-47020-B1iZVW40201203-201504

DK.GRAY,TRIM1#

main71833-47020-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main71833-47020-G0iZVW40201203-201504

AQUA,TRIM6#

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71834-47050-B0iZVW40201203-201504

DK.GRAY,TRIM1#

main71834-47050-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main71834-47050-G0iZVW40201203-201504

AQUA,TRIM6#

71848CCAP, SEAT ADJUSTER COVER, RH

main71848-47020×2iZVW40201203-201504

71865BEZEL, REAR SEAT COVER, NO.1

main71865-47010-B0×3iZVW40201203-201504

DK.GRAY,TRIM1#,6#

main71865-47010-C0×3iZVW40201504-202108

BLACK,TRIM1#,2#

71875CCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-47050-B1iZVW40201203-201504

DK.GRAY,TRIM1#

main71875-47050-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main71875-47050-G0iZVW40201203-201504

AQUA,TRIM6#

71876BCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-47050-B1iZVW40201203-201504

DK.GRAY,TRIM1#

main71876-47050-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main71876-47050-G0iZVW40201203-201504

AQUA,TRIM6#

71881BOARD, REAR SEATBACK, RH

main71881-47020-B0iZVW40201203-201504

DK.GRAY,TRIM1#

main71881-47020-B1iZVW40201504-202108

MD.GRAY,TRIM19

main71881-47020-C0iZVW40201504-202108

BLACK,TRIM19,2#

main71881-47020-G0iZVW40201203-201504

AQUA,TRIM6#

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71930-44020-21×3iZVW40201710-202108

W(LOCK),BLACK,TRIM2#

sub71930-02370

main71930-44020-B0×3iZVW40201203-201504

W(LOCK),DK.GRAY,TRIM1#

sub71930-02370

main71930-44020-B1×3iZVW40201504-202108

W(LOCK),MD.GRAY,TRIM1#

sub71930-02370

main71930-44020-C0×3iZVW40201504-201710

W(LOCK),BLACK,TRIM2#

sub71930-02370

main71930-44020-G0×3iZVW40201203-201504

W(LOCK),AQUA,TRIM6#

sub71930-02370

main71931-47010-B2×3iZVW40201203-201504

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-42020

main71931-47010-B8×3iZVW40201504-202108

W/O(LOCK),MD.GRAY,TRIM1#

sub71931-42020

main71931-47010-C0×3iZVW40201504-201710

W/O(LOCK),BLACK,TRIM2#

sub71931-42020

main71931-47010-C8×3iZVW40201710-202108

W/O(LOCK),BLACK,TRIM2#

sub71931-42020

main71931-47010-G0×3iZVW40201203-201504

W/O(LOCK),AQUA,TRIM6#

sub71931-42020

71940AHEADREST ASSY, REAR SEAT

main71940-47420-C0×3iZVW40201504-202108

BLACK,TRIM2#

main71940-47210-B0×3iZVW40201210-201504

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,DK.GRAY,TRIM1#

sub71940-47211

main71940-47210-G0×3iZVW40201210-201504

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,AQUA,TRIM6#

sub71940-47211

main71940-47290-B0×3iZVW40201210-201303

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

main71940-47290-B1×3supersedes 71940-47420-B0iZVW40201303-201504

SEAT COVER MATERIAL-LEATHER,MD GRAY,TRIM1#

main71940-47290-G0×3iZVW40201210-201303

SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6#

main71940-47290-G1×3supersedes 71940-47280-G0iZVW40201303-201504

SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6#

main71940-47450-B2×3iZVW40201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

main71940-47450-C3×3iZVW40201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

main71940-47451-B3×3iZVW40201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

main71940-47451-C4×3iZVW40201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47030-C0iZVW40201203-201504

BLACK,TRIM1#,6#

72158ACOVER, REAR SEAT TRACK BRACKET, INNER LH

main72157-47070-C0iZVW40201203-201504

BLACK,TRIM1#,6#

72173HANDLE, REAR SEAT TRACK ADJUSTING

main72173-47030iZVW40201203-201504

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-47020iZVW40201203-201504

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-47030-B1iZVW40201203-201504

DK.GRAY,TRIM1#

main72525-47030-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main72525-47030-G0iZVW40201203-201504

AQUA,TRIM6#

72551ECOVER, RECLINING HINGE, RH

main72551-47020-B0iZVW40201203-201504

DK.GRAY,TRIM1#

main72551-47020-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main72551-47020-G0iZVW40201203-201504

AQUA,TRIM6#

72573BLEVER, RECLINING CONTROL, RH

main72573-47010-B1iZVW40201203-201504

DK.GRAY,TRIM1#

main72573-47010-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main72573-47010-G0iZVW40201203-201504

AQUA,TRIM6#

72590BCABLE ASSY, RECLINING REMOTE CONTROL

main72590-47040iZVW40201203-201504

72597BBEZEL, RECLINING REMOTE CONTROL LEVER, NO.1

main72597-47010-B1iZVW40201203-201504

DK.GRAY,TRIM1#

main72597-47010-C0iZVW40201504-202108

BLACK,TRIM1#,2#

main72597-47010-G0iZVW40201203-201504

AQUA,TRIM6#

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-47010-B0×3iZVW40201504-202108

MD.GRAY,TRIM19

main72615-47010-B1×3iZVW40201203-201504

DK.GRAY,TRIM1#

main72615-47010-C0×3iZVW40201504-202108

BLACK,TRIM19,2#

main72615-47010-G0×3iZVW40201203-201504

AQUA,TRIM6#

72663LEVER, REAR SEAT LOCK CONTROL, NO.1

main72057-47010-B0×3iZVW40201504-201712

MD.GRAY,TRIM1#

main72057-47010-B1×3iZVW40201203-201504

DK.GRAY,TRIM1#

main72057-47010-C0×3iZVW40201712-202108

BLACK,TRIM19,2#

main72057-47010-G0×3iZVW40201203-201504

AQUA,TRIM6#

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-47060-B0supersedes 79011-47050-B0iZVW40201407-201504

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#

sub79011-47062

main79011-47060-G1iZVW40201210-201406

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,AQUA,TRIM6#

sub79011-47062

main79011-47070-B0supersedes 79011-47050-B0iZVW40201210-201406

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

sub79011-47072

main79011-47070-G1supersedes 79011-47050-G1iZVW40201407-201504

SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6#

sub79011-47072

main79011-47160-B3supersedes 79011-47150-B2iZVW40201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

sub79011-47410

main79011-47160-C4supersedes 79011-47150-C3iZVW40201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

sub79011-47410

main79011-47161-B3supersedes 79011-47151-B2iZVW40201712-202008

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

main79011-47161-C4supersedes 79011-47151-C3iZVW40201712-202008

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

main79011-47162-B4supersedes 79011-47152-B3iZVW40202008-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

sub79011-47163

main79011-47162-C5supersedes 79011-47152-C4iZVW40202008-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

sub79011-47163

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-47100-B0iZVW40201203-201308

GRAY,TRIM1#

main79013-47100-G0iZVW40201203-201308

AQUA,TRIM6#

main79013-47110-B0iZVW40201210-201308

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#

sub79013-47111

main79013-47110-B1supersedes 79013-47100-B1iZVW40201308-201504

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,GRAY,TRIM1#

sub79013-47111

main79013-47110-G0iZVW40201210-201308

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,AQUA,TRIM6#

sub79013-47111

main79013-47110-G1supersedes 79013-47100-G1iZVW40201308-201504

SEAT COVER MATERIAL-FABRIC-HIGH GRADE,AQUA,TRIM6#

sub79013-47111

main79013-47120-B0iZVW40201210-201308

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

main79013-47120-B1supersedes 79013-47100-B1iZVW40201308-201504

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

main79013-47120-G0iZVW40201210-201308

SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6#

main79013-47120-G1supersedes 79013-47100-G1iZVW40201308-201504

SEAT COVER MATERIAL-LEATHER,AQUA,TRIM6#

main79013-47270-B5supersedes 79013-47260-B4iZVW40201504-202008

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

main79013-47270-C5supersedes 79013-47260-C4iZVW40201504-202008

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

main79013-47271-B6supersedes 79013-47261-B5iZVW40202008-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

sub79013-47272

main79013-47271-C6supersedes 79013-47261-C5iZVW40202008-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

sub79013-47272

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-47030iZVW40201203-201504

79956BCOVER, REAR SEAT LEG SIDE, RH

main79956-47010iZVW40201203-201504

8271112120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12120

9010510448

main90105-10448

9011910409

main90119-10409

9016740044

main90167-40044
