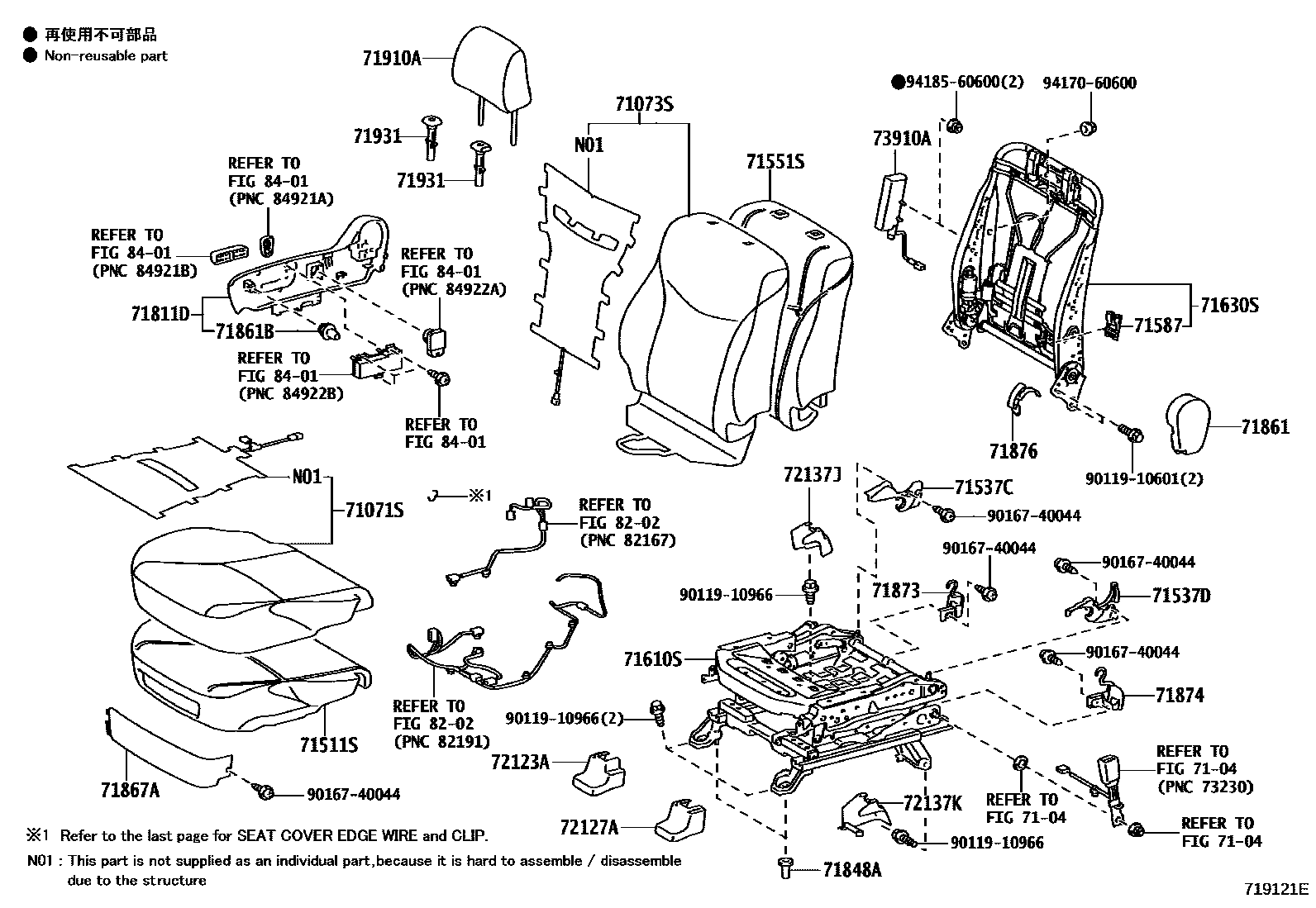

FRONT SEAT & SEAT TRACK

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47810-C1i201504-202108

BLACK,TRIM2#

sub71071-47811

main71071-47580-B0i201210-201301

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71071-47581

main71071-47580-B1supersedes 71071-47810-B1i201301-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71071-47581

main71071-47580-G0i201210-201301

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71071-47581

main71071-47580-G1supersedes 71071-47570-G2i201301-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71071-47581

main71071-47590-B0i201210-201301

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71071-47591

main71071-47590-B1supersedes 71071-47810-B1i201301-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71071-47591

main71071-47590-G0i201210-201301

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71071-47591

main71071-47590-G1supersedes 71071-47570-G2i201301-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71071-47591

main71071-47650-B0i201210-201301

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71071-47651

main71071-47650-B1supersedes 71071-47810-B1i201301-201504

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71071-47651

main71071-47650-G0i201210-201301

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71071-47651

main71071-47650-G1supersedes 71071-47570-G2i201301-201504

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71071-47651

main71071-47800-B2i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

sub71071-47801

main71071-47800-C2i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

sub71071-47801

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47440-B1i201203-201209

GRAY,TRIM1#

main71073-47440-G1i201203-201209

AQUA,TRIM6#

main71073-47441-B3i201209-201308

GRAY/MEDIUM GRAY,TRIM1#

sub71073-47442

main71073-47441-G3i201209-201308

AQUA/AQUA,TRIM6#

sub71073-47442

main71073-47650-B3i201504-202108

GRAY,TRIM1#

sub71073-47651

main71073-47650-C3i201504-202108

BLACK,TRIM2#

sub71073-47651

main71073-47451-B2i201210-201308

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY/MEDIUM GRAY,TRIM1#

sub71073-47453

main71073-47451-B3supersedes 71073-47441-B4i201308-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71073-47453

main71073-47451-G2i201210-201308

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA/AQUA,TRIM6#

sub71073-47453

main71073-47451-G3supersedes 71073-47441-G4i201308-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71073-47453

main71073-47460-B1i201210-201308

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY/GRAY,TRIM1#

main71073-47460-B2supersedes 71073-47441-B4i201308-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

main71073-47460-G1i201210-201308

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA/AQUA,TRIM6#

main71073-47460-G2supersedes 71073-47441-G4i201308-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

main71073-47511-B2i201210-201308

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY/MEDIUM GRAY,TRIM1#

sub71073-47512

main71073-47511-B3supersedes 71073-47441-B4i201308-201504

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

sub71073-47512

main71073-47511-G2i201210-201308

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA/AQUA,TRIM6#

sub71073-47512

main71073-47511-G3supersedes 71073-47441-G4i201308-201504

SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71073-47512

main71073-47850-B5i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#

main71073-47850-C5i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-47110i201203-201504

main71511-47160i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-47010-B1i201203-201504

DK.GRAY,TRIM1#

main71537-47010-C0i201504-202108

BLACK,TRIM1#,2#

main71537-47010-G0i201203-201504

AQUA,TRIM6#

main71537-52100-C0i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM1#,2#

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71538-47010-B1i201203-201504

DK.GRAY,TRIM1#

main71538-47010-C0i201504-202108

BLACK,TRIM1#,2#

main71538-47010-G0i201203-201504

AQUA,TRIM6#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-47180i201203-201504

main71551-47240i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-52030×2i201203-201504

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-47170i201203-201209

sub73214-75010

main71610-47171i201209-201504

main71610-47360i201504-202108

main71610-47260i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-47130i201203-201504

main71630-47150i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-47060-B1i201203-201504

DK.GRAY,TRIM1#

main71811-47060-C0i201504-202108

BLACK,TRIM1#,2#

main71811-47060-G0i201203-201504

AQUA,TRIM6#

main71811-47130-C0i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM1#,2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-47010×2i201203-201504

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-47040-B1i201203-201504

DK.GRAY,TRIM1#

main71861-47040-C0i201504-202108

BLACK,TRIM1#,2#

main71861-47040-G0i201203-201504

AQUA,TRIM6#

main71861-22150-C0i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#

71861BCLIP(FOR FRONT SEAT SHIELD, RH)

main71769-47020i201203-201504

71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

main71867-60050-C0i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM1#,2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-47040i201203-201504

main71873-60030i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040i201203-201504

main71874-60110i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-47030-B1i201203-201504

DK.GRAY,TRIM1#

main71876-47030-C0i201504-202108

BLACK,TRIM1#,2#

main71876-47030-G0i201203-201504

AQUA,TRIM6#

main71876-60210-C0i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM1#,2#

71910AHEADREST ASSY, FRONT SEAT

main71910-47320-C0×2i201504-202108

BLACK,TRIM2#

main71910-47160-B0×2i201210-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),DK.GRAY,TRIM1#

sub71910-47161

main71910-47160-G0×2i201210-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-FABRIC-HIGH GRADE&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

sub71910-47161

main71910-47220-B0×2i201210-201303

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),GRAY,TRIM1#

main71910-47220-B1×2supersedes 71910-47320-B0i201303-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),MD GRAY,TRIM1#

main71910-47220-G0×2i201210-201303

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

main71910-47220-G1×2supersedes 71910-47210-G0i201303-201504

PRE-COLLISION SYSTEM-WITH&SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER SEAT),AQUA,TRIM6#

main71910-47340-B2×2i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),GRAY,TRIM1#

main71910-47340-C3×2i201504-201712

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE),BLACK,TRIM2#

main71910-47341-B3×2i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM1#

main71910-47341-C4×2i201712-202108

LUXURY PACKAGE&FRONT SEAT-POWER SEAT(DRIVER SIDE)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47020-B0×2i201504-202108

W(LOCK),MD.GRAY,TRIM1#

main71930-47020-B2×2i201203-201504

W(LOCK),DK.GRAY,TRIM1#

main71930-47020-C0×2i201504-201710

W(LOCK),BLACK,TRIM2#

main71930-47020-C4×2i201710-202108

W(LOCK),BLACK,TRIM2#

main71930-47020-G0×2i201203-201504

W(LOCK),AQUA,TRIM6#

main71931-47020-B0×2i201504-202108

W/O(LOCK),MD.GRAY,TRIM1#

main71931-47020-B2×2i201203-201504

W/O(LOCK),DK.GRAY,TRIM1#

main71931-47020-C0×2i201504-201710

W/O(LOCK),BLACK,TRIM2#

main71931-47020-C4×2i201710-202108

W/O(LOCK),BLACK,TRIM2#

main71931-47020-G0×2i201203-201504

W/O(LOCK),AQUA,TRIM6#

72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-47020-C0i201203-201504

BLACK,TRIM1#,6#

72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH

main72127-47010-C0i201203-201504

BLACK,TRIM1#,6#

72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER

main72137-47050-C0i201504-202108

BLACK,TRIM1#,2#

72137KCOVER, FRONT SEAT TRACK, RH REAR INNER

main72157-47050-C0i201203-201504

BLACK,TRIM1#,6#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-47050i201203-201504

8202

8401

9011910601

main90119-10601

9011910966

main90119-10966

9016740044

main90167-40044

9417060600

main94170-60600

9418560600

main94185-60600

32 parts on this diagram · 5 diagrams in section
