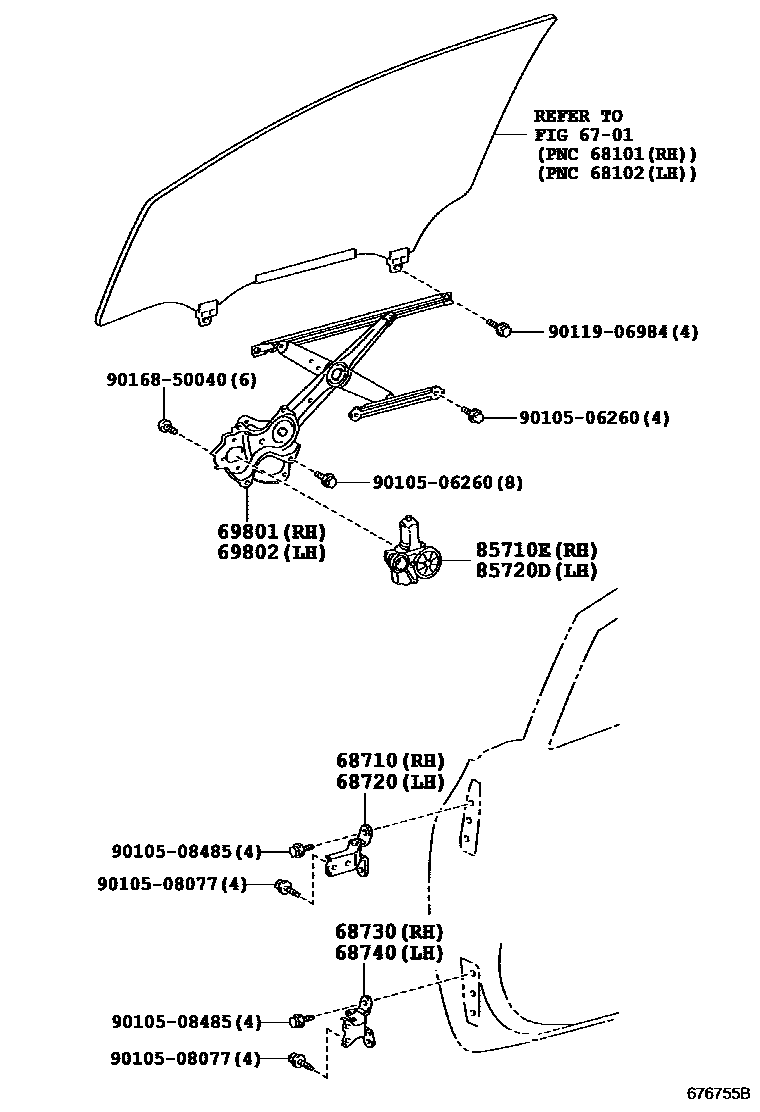

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iZVW40201504-202108

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iZVW40201203-201504

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iZVW40201203-201504

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iZVW40201203-201504

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-21020iZVW40201504-202108

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-21010iZVW40201203-201504

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-12490iZVW40201208-201504

main85710-47060iZVW40201203-201207

sub85710-42120

main85710-62010iZVW40201504-202108

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-12490iZVW40201208-201504

main85720-47060iZVW40201203-201207

sub85720-42110

main85720-62010iZVW40201504-202108

9010506260

main90105-06260

9010508077

main90105-08077

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
