EPC Data

DECK BOARD & DECK TRIM COVER

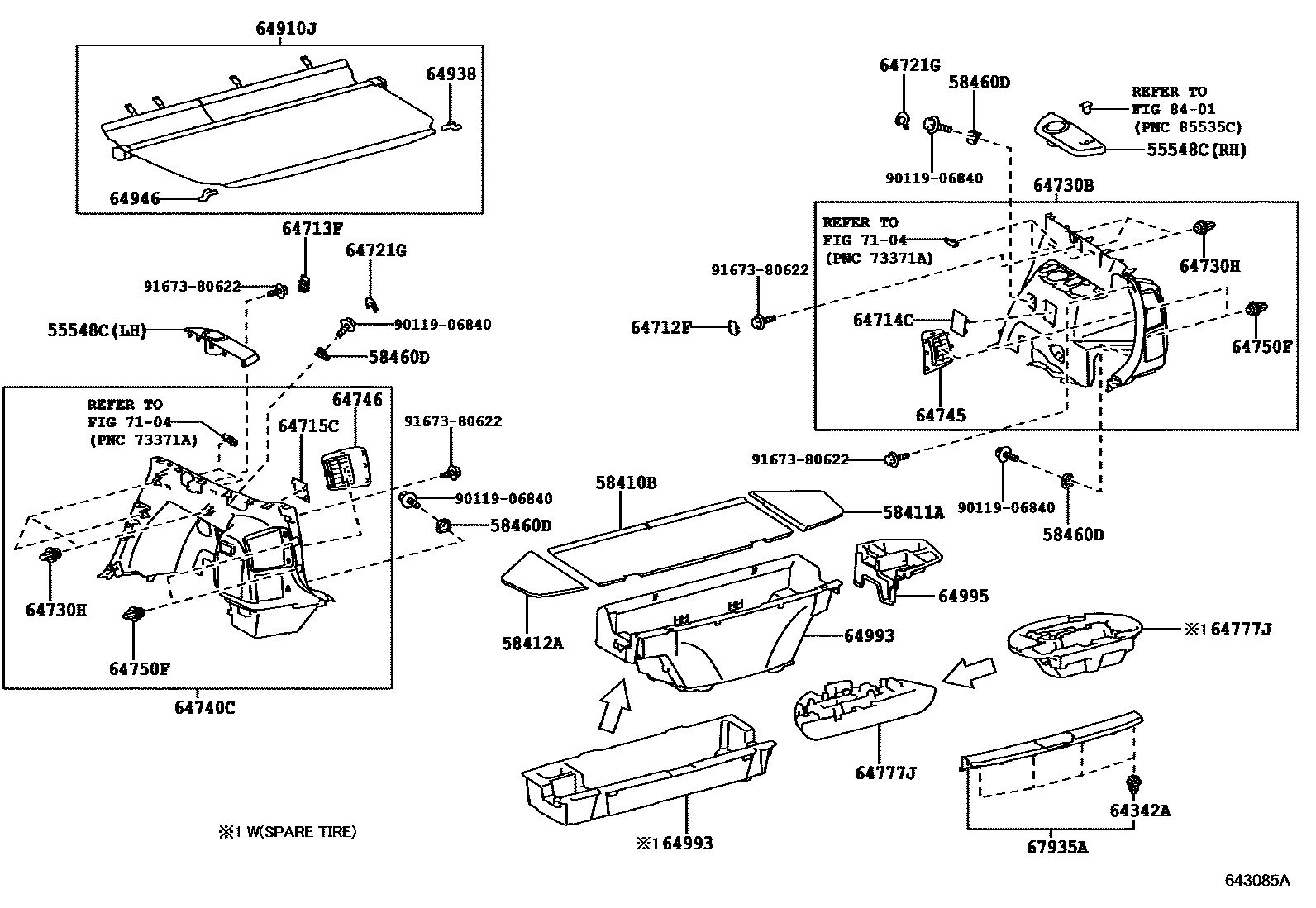

Parts diagram
55548CHOLDER, CUP
main66991-47010-B0i201203-201504
MD.GRAY,TRIM1#,RH
main66991-47010-B1i201504-202108
GRAY,TRIM1#,RH
main66991-47010-C0i201504-202108
BLACK,TRIM2#,RH
main66991-47010-G0i201203-201504
AQUA,TRIM6#,RH
main66992-47010-B0i201203-201504
MD.GRAY,TRIM1#,LH
main66992-47010-B1i201504-202108
GRAY,TRIM1#,LH
main66992-47010-C0i201504-202108
BLACK,TRIM2#,LH
main66992-47010-G0i201203-201504
AQUA,TRIM6#,LH
58410BBOARD ASSY, DECK
main58410-47010-B1i201203-201405
DARK GRAY,TRIM1#
main58410-47010-G2i201203-201405
AQUA,TRIM6#
main58410-47011-B1i201504-202108
DARK GRAY,TRIM1#
main58410-47011-C0i201504-202108
BLACK,TRIM2#
main58410-47011-G2i201405-201504
AQUA,TRIM6#
58411ABOARD, DECK, NO.1
main58411-47010-B1i201203-201504
DARK GRAY,TRIM1#
main58411-47010-C0i201504-202108
BLACK,TRIM2#
main58411-47010-G2i201203-201504
AQUA,TRIM6#
58412ABOARD, DECK, NO.2
main58412-47010-B1i201203-201504
DARK GRAY,TRIM1#
main58412-47010-C0i201504-202108
BLACK,TRIM2#
main58412-47010-G2i201203-201504
AQUA,TRIM6#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020×4i201504-202108
64342ACLIP
main90467-10161×4i201504-202108
64712FCOVER, DECK SIDE TRIM, FRONT RH
main64712-47010-B0i201203-201504
MD.GRAY,TRIM1#
main64712-47010-B1i201504-202108
GRAY,TRIM1#
main64712-47010-C0i201504-202108
BLACK,TRIM2#
main64712-47010-G0i201203-201504
AQUA,TRIM6#
64713FCOVER, DECK SIDE TRIM, FRONT LH
main64712-47010-B0i201203-201504
MD.GRAY,TRIM1#
main64712-47010-B1i201504-202108
GRAY,TRIM1#
main64712-47010-C0i201504-202108
BLACK,TRIM2#
main64712-47010-G0i201203-201504
AQUA,TRIM6#
64714CCOVER, DECK SIDE TRIM, RH
main64714-47040-B0i201203-201504
MD.GRAY,TRIM1#
main64714-47040-B1i201504-202108
GRAY,TRIM1#
main64714-47040-C0i201504-202108
BLACK,TRIM2#
main64714-47040-G0i201203-201504
AQUA,TRIM6#
64715CCOVER, DECK SIDE TRIM, LH
main64715-47040-B0i201203-201504
MD.GRAY,TRIM1#
main64715-47040-B1i201504-202108
GRAY,TRIM1#
main64715-47040-C0i201504-202108
BLACK,TRIM2#
main64715-47040-G0i201203-201504
AQUA,TRIM6#
64721GCOVER, DECK TRIM, NO.1
main64721-47020-B0×2i201203-201504
MD.GRAY,TRIM1#
main64721-47020-B1×2i201504-202108
GRAY,TRIM1#
main64721-47020-C0×2i201504-202108
BLACK,TRIM2#
main64721-47020-G0×2i201203-201504
AQUA,TRIM6#
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-47070-B0i201203-201504
MD.GRAY,TRIM1#
main64730-47070-B1i201504-201903
GRAY,TRIM1#
main64730-47070-C0i201504-201903
BLACK,TRIM2#
main64730-47070-G0i201203-201504
AQUA,TRIM6#
main64730-47150-B0i201903-202108
GRAY,TRIM1#
main64730-47150-C0i201903-202108
BLACK,TRIM2#
64730HCLIP(FOR DECK TRIM SIDE PANEL)
main90467-09236×6i201203-201302
main90467-09240×6i201303-201504
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-47080-B0i201203-201504
MD.GRAY,TRIM1#
main64740-47080-B1i201504-201903
GRAY,TRIM1#
main64740-47080-C0i201504-201903
BLACK,TRIM2#
main64740-47080-G0i201203-201504
AQUA,TRIM6#
main64740-47290-B0i201903-202108
GRAY,TRIM1#
main64740-47290-C0i201903-202108
BLACK,TRIM2#
64745COVER, REAR COMBINATION LAMP SERVICE, RH
main64745-47040-B0i201203-201504
MD.GRAY,TRIM1#
main64745-47040-B1i201504-202108
GRAY,TRIM1#
main64745-47040-C0i201504-202108
BLACK,TRIM2#
main64745-47040-G0i201203-201504
AQUA,TRIM6#
64746COVER, REAR COMBINATION LAMP SERVICE, LH
main64746-47030-B0i201203-201504
MD.GRAY,TRIM1#
main64746-47030-B1i201504-202108
GRAY,TRIM1#
main64746-47030-C0i201504-202108
BLACK,TRIM2#
main64746-47030-G0i201203-201504
AQUA,TRIM6#
64750FCLIP(FOR DECK SIDE TRIM PANEL)
main90467-10161×4i201504-202108
64777JCUSHION, SPARE WHEEL
main64777-47080supersedes 64777-47070i201203-201504
SPARE TIRE-TEMPORARY(T135/70D17)
64910JCOVER ASSY, TONNEAU
main64910-47040-B0i201203-201504
LT.GRAY,TRIM1#,6#
64938HOOK, TONNEAU COVER, A
main64938-47040-B0i201203-201504
LT.GRAY,TRIM1#,6#
64946HOOK, TONNEAU COVER, B
main64946-47040-B0i201203-201504
LT.GRAY,TRIM1#,6#
64993BOX, DECK FLOOR, REAR
main64993-47060supersedes 64993-47040i201504-201712
SPARE TIRE-TEMPORARY(T135/70D17)
64995BOX, DECK FLOOR, RH
main64995-47010i201203-201504
67935APLATE, BACK DOOR SCUFF
main67935-47010-B0i201203-201504
MD.GRAY,TRIM1#
main67935-47010-B1i201504-202108
GRAY,TRIM1#
main67935-47010-C0i201504-202108
BLACK,TRIM2#
main67935-47010-G0i201203-201504
AQUA,TRIM6#
7104
8401
9011906840
main90119-06840
9167380622
main91673-80622

28 parts on this diagram · 1 diagram in section
