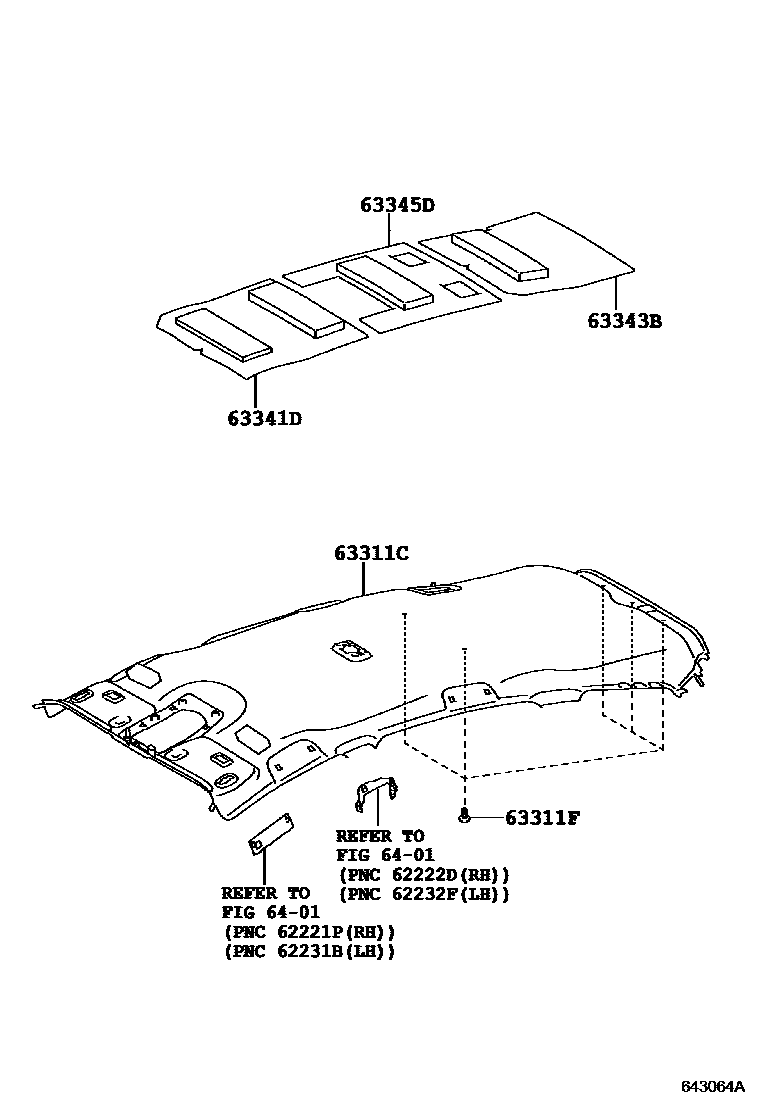

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1PANORAMIC ROOF

63311CHEADLINING, ROOF

main63321-47011-B0supersedes 63311-47010-B0iZVW40201203-201504

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,6#

main63321-47020-B0supersedes 63311-47020-B0iZVW40201605-201711

PANORAMIC ROOF-WITH(FIXED),LT.GRAY,TRIM1#,2#

main63321-47021-B0supersedes 63311-47021-B0iZVW40201712-202108

PANORAMIC ROOF-WITH(FIXED),LT.GRAY,TRIM1#,2#

63311FCLIP, ROOF HEADLINING, NO.1

63341DPAD, ROOF SILENCER, FRONT

main63342-47090iZVW40201203-201504

63343BPAD, ROOF SILENCER, REAR

main63344-47020iZVW40201203-201504

63345DPAD, ROOF SILENCER, CENTER

main63343-47070iZVW40201203-201504

6401

6 parts on this diagram · 2 diagrams in section
