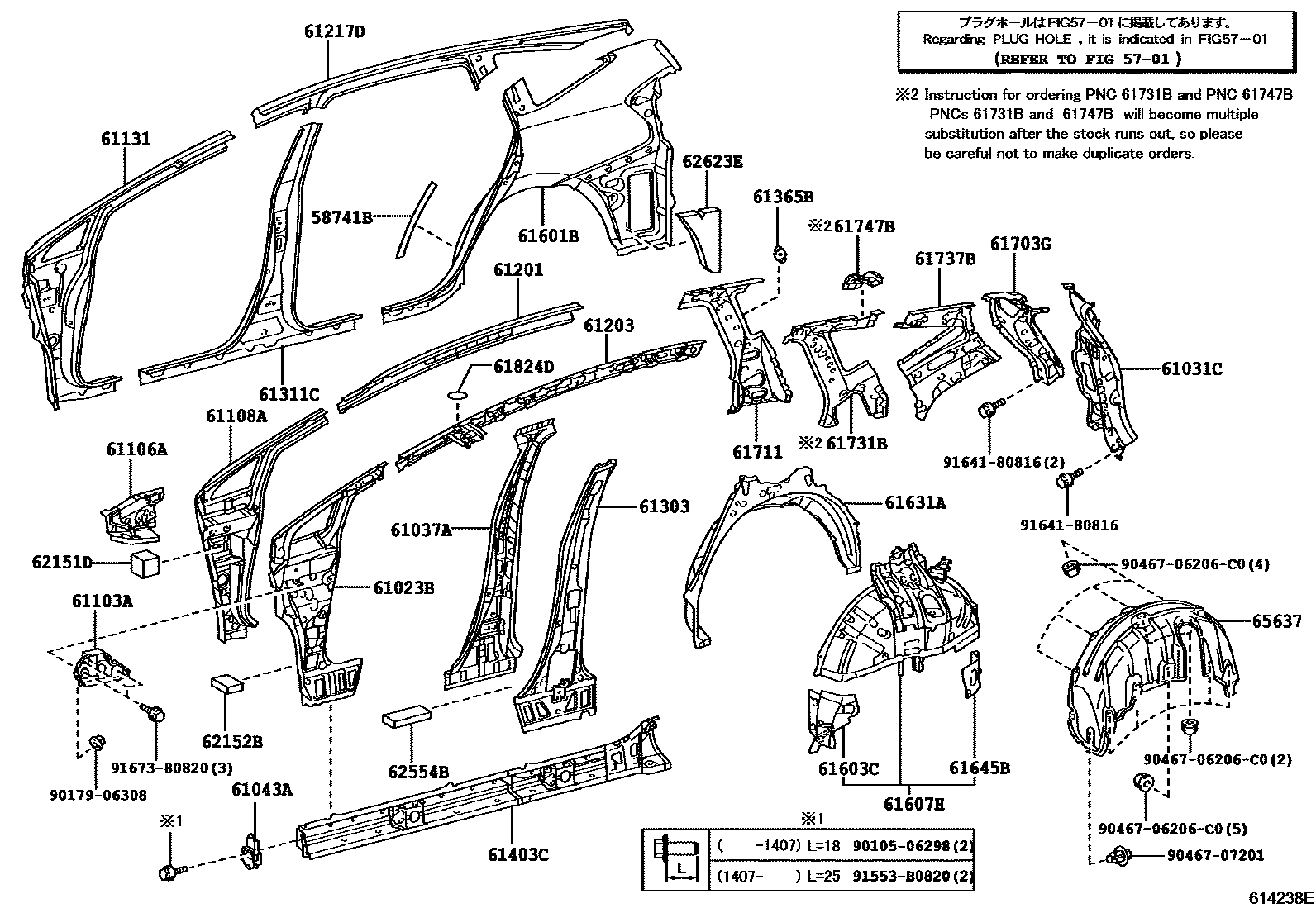

SIDE MEMBER
5701
58741BPROTECTOR, QUARTER PANEL, RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61031CEXTENSION SUB-ASSY, QUARTER PANEL, REAR RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61217DRAIL, ROOF SIDE, OUTER NO.4 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61311CPANEL, REAR BODY FRONT OUTSIDE, RH
61365BREINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH
61601BPANEL SUB-ASSY, QUARTER, RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61703GPANEL SUB-ASSY, QUARTER, INNER RH
61731BPANEL, ROOF SIDE, INNER RH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH
61824DPLATE, NOISE CONTROL, NO.1
62151DPAD, COWL SIDE SILENCER
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH
65637LINER, REAR WHEEL HOUSE, RH
9010506298
main90105-06298
9017906308
main90179-06308
9046706206C0
main90467-06206C0
9046707201
main90467-07201
91553B0820
main91553-B0820
9164180816
main91641-80816
9167380820
main91673-80820
40 parts on this diagram · 2 diagrams in section
