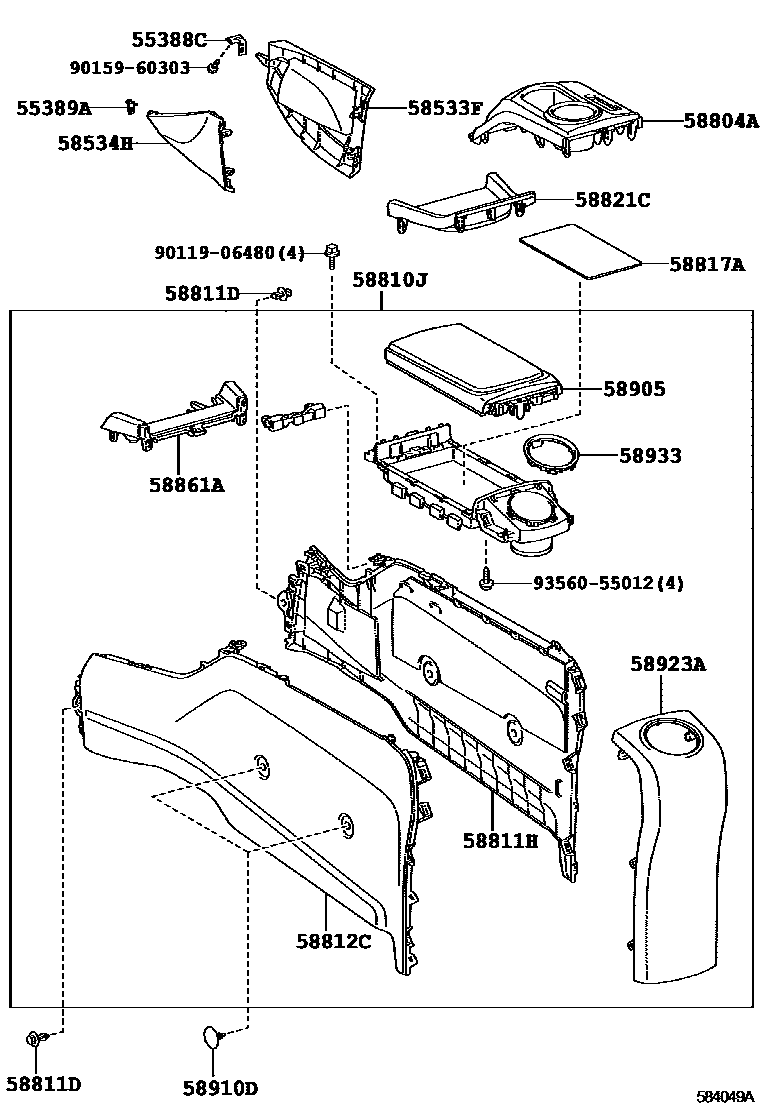

Toyota 136320 — CONSOLE BOX & BRACKET
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
58533FCOVER, FLOOR CARPET, CENTER RH
58534HCOVER, FLOOR CARPET, CENTER LH
58804APANEL SUB-ASSY, CONSOLE, UPPER
58810JBOX ASSY, CONSOLE
58811DCLIP(FOR CONSOLE BOX)
58811HBOX, CONSOLE, RH
58812CBOX, CONSOLE, LH
58817AINSERT, CONSOLE BOX, FRONT NO.2
58821CPANEL, CONSOLE, UPPER
58861ASUPPORT, CONSOLE BOX, NO.1
58910DCLIP(FOR CONSOLE BOX)
58923APANEL, CONSOLE REAR END
58933GARNISH, CONSOLE REAR END PANEL
9011906480
9015960303
9356055012
19 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota 136320
This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota 136320. Key components include: BRACKET, CONSOLE MOUNTING, RH, BRACKET, CONSOLE MOUNTING, LH, COVER, FLOOR CARPET, CENTER RH, COVER, FLOOR CARPET, CENTER LH, PANEL SUB-ASSY, CONSOLE, UPPER.
