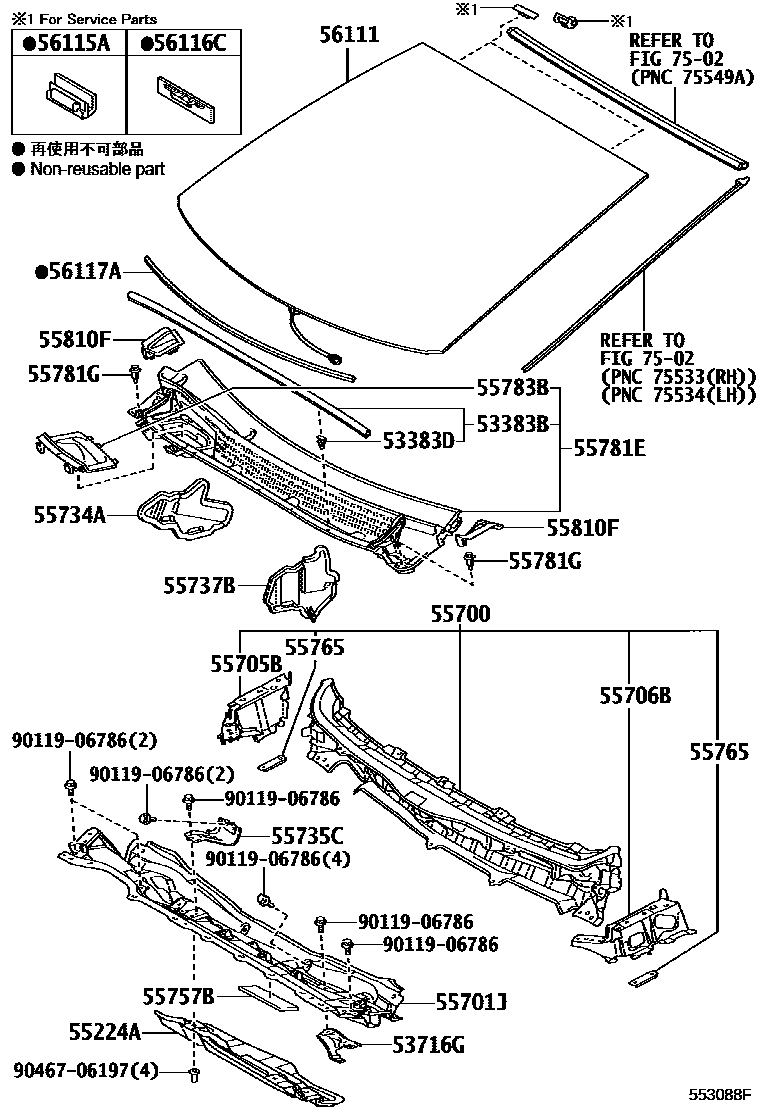

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53716GEXTENSION, FRONT FENDER APRON, REAR LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55700PANEL ASSY, FRONT
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55757BSHEET COWL TOP INSULATOR
55765BRACKET, HOOD DAMPER MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55810FVENTILATOR ASSY, FRONT
RH
LH
56111GLASS, WINDSHIELD
LUXURY PACKAGE&ROOF-PANORAMIC ROOF(FIXED)&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH
LUXURY PACKAGE&CRUISE CONTROL-WITH(MICRO WAVE TYPE)&HEADLAMP-LED & *AHB&AUDIO-AVN& JBL & 8SPEAKER & *BT
LUXURY PACKAGE&AUDIO-AVN & JBL & 8SPEAKER & *BT
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
7502
9011906786
main90119-06786
9046706197
main90467-06197
24 parts on this diagram · 2 diagrams in section
