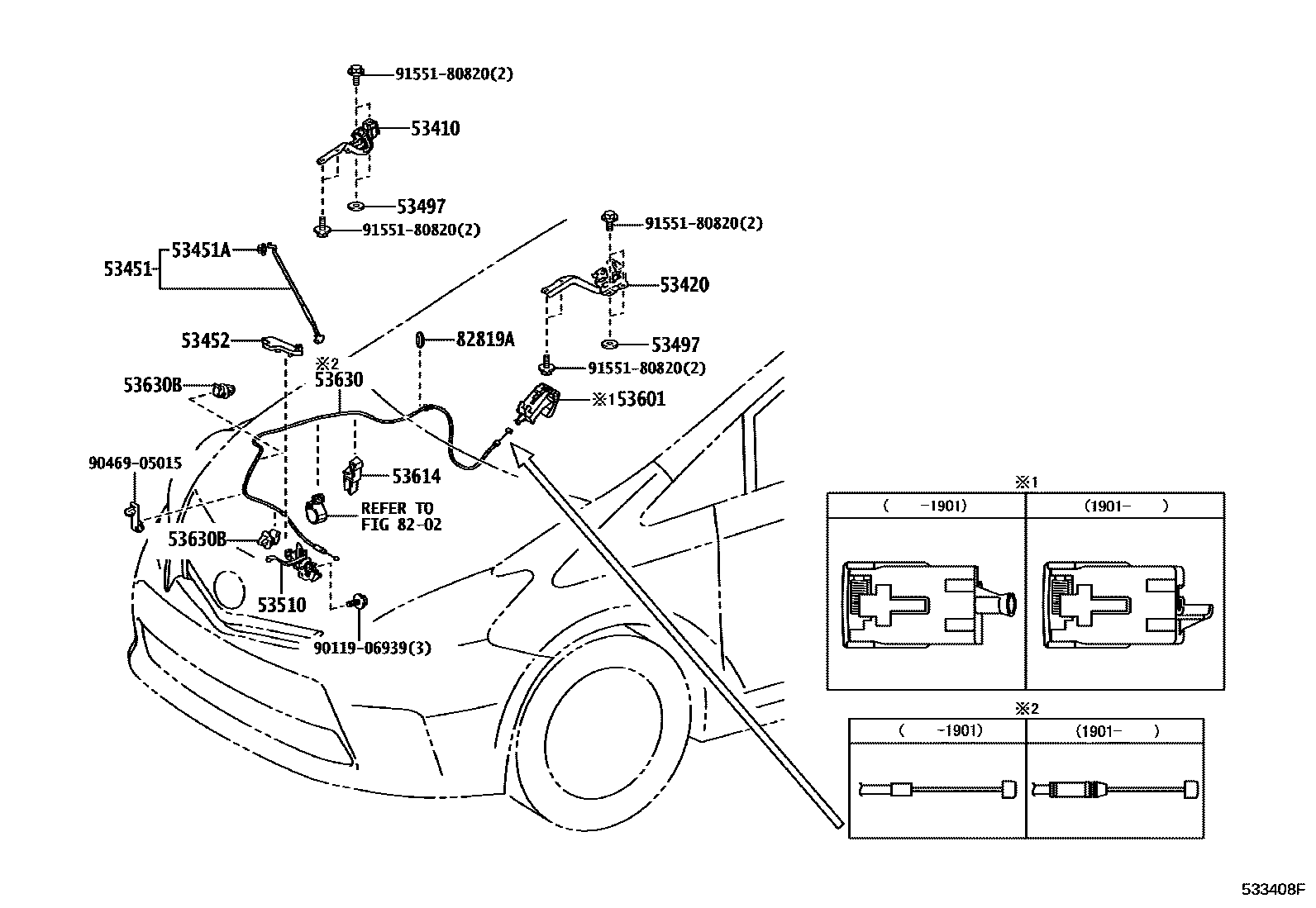

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-47100iZVW40201203-201504

main53410-47160iZVW40201504-202108

53420HINGE ASSY, HOOD, LH

main53420-47100iZVW40201203-201504

main53420-47160iZVW40201504-202108

53451ROD, HOOD SUPPORT

main53440-47041iZVW40201203-201210

main53440-47042iZVW40201211-201504

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iZVW40201504-202108

53452HOLDER, HOOD STAY

main53452-47020iZVW40201504-202108

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZVW40201504-202108

T=2.0

main53497-42010×4iZVW40201203-201504

T=0.5

53510LOCK ASSY, HOOD

main53510-47110iZVW40201203-201206

main53510-47111iZVW40201504-202108

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-B2iZVW40201901-202108

GRAY,TRIM1#

main53601-30100-C0iZVW40201901-202108

BLACK,TRIM2#

main53601-52010-B6iZVW40201203-201504

MD.GRAY,TRIM1#

main53601-52010-B9iZVW40201504-201901

GRAY,TRIM1#

main53601-52010-C0iZVW40201504-201612

BLACK,TRIM2#

main53601-52010-C1iZVW40201612-201901

BLACK,TRIM2#

main53601-52010-G1iZVW40201203-201504

AQUA,TRIM6#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030iZVW40201504-202108

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47060iZVW40201203-201504

main53630-47120iZVW40201901-202108

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×2iZVW40201203-201504

8202

82819AGROMMET, WIRE

main82817-1A810×2iZVW40201203-201504

9011906939

main90119-06939

9046905015

main90469-05015

9155180820

main91551-80820

16 parts on this diagram · 1 diagram in section
