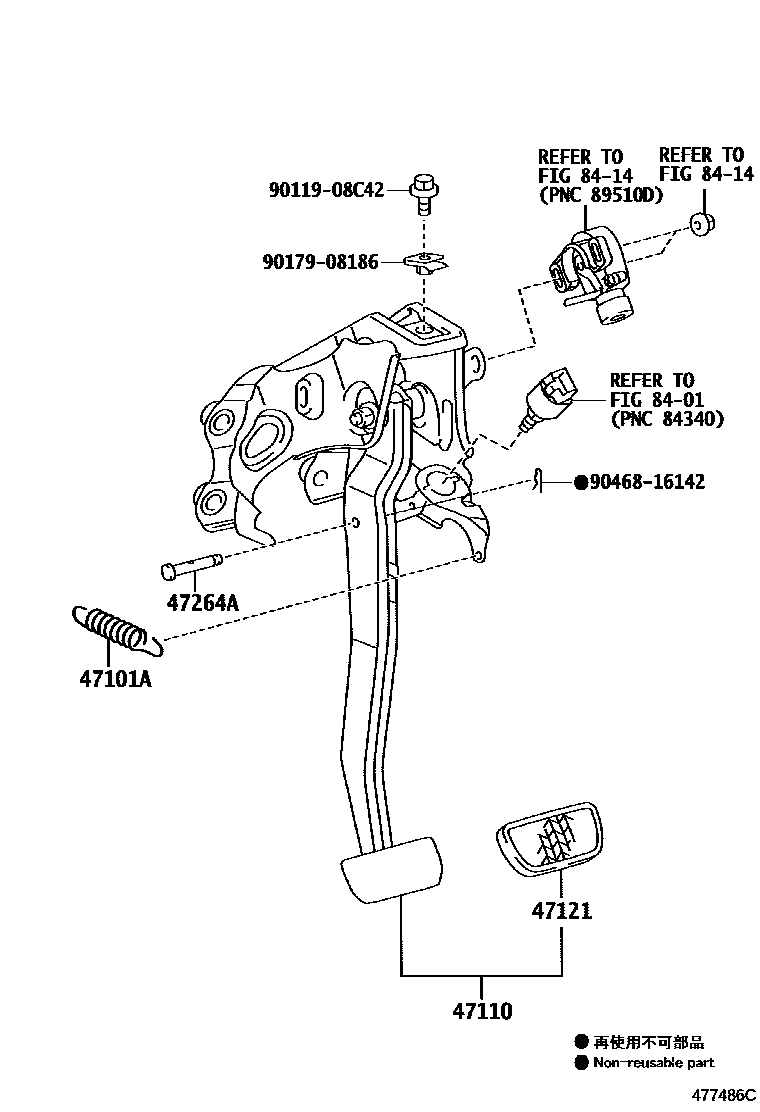

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZVW40201203-201504

47110SUPPORT ASSY, BRAKE PEDAL

main47110-47080iZVW40201203-201504

47121PAD, BRAKE PEDAL

main47121-42010iZVW40201203-201504

47264APIN(FOR PUSH ROD)

main47148-47020iZVW40201203-201504

8401

8414

9011908C42

main90119-08C42

9017908186

main90179-08186

9046816142

main90468-16142

9 parts on this diagram · 1 diagram in section
