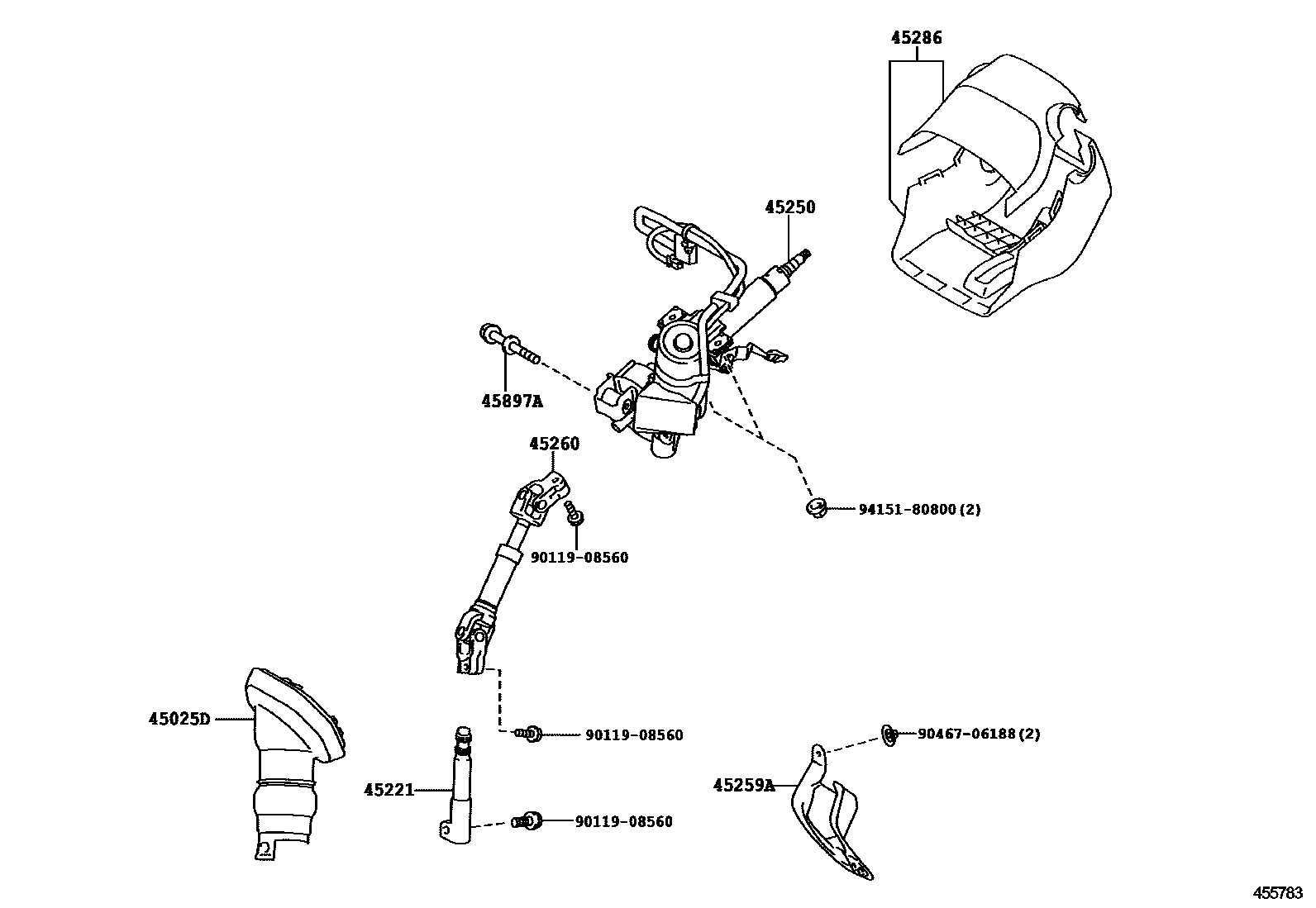

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZVW40201203-201504

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZVW40201203-201504

45250COLUMN ASSY, STEERING

main45250-47290iZVW40201203-201504

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZVW40201203-201504

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12770iZVW40201302-201504

main45260-12771iZVW40201504-202108

main45260-47070iZVW40201203-201301

45286COVER, STEERING COLUMN

main45286-12993-C0iZVW40201203-201504

BLACK,TRIM1#,6#

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZVW40201203-201211

main90119-10980iZVW40201212-201504

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

10 parts on this diagram · 1 diagram in section
