IGNITION COIL & SPARK PLUG / GLOW PLUG

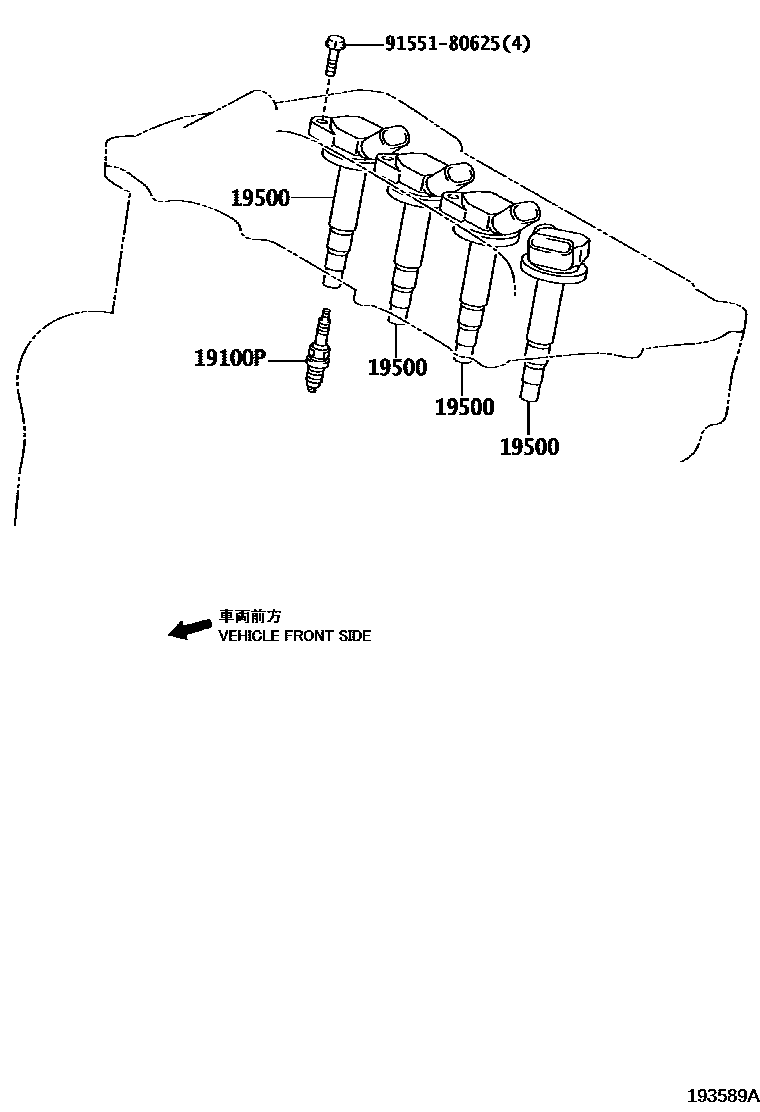

Parts diagram

19100PPLUG, SPARK

main90919-01253×4i201203-201504

SC20HR11

main90919-01275×4i201504-202108

SC16HR11,*119

19500COIL ASSY, IGNITION

main90919-02258×4i201203-201504

9155180625

main91551-80625

3 parts on this diagram · 1 diagram in section
