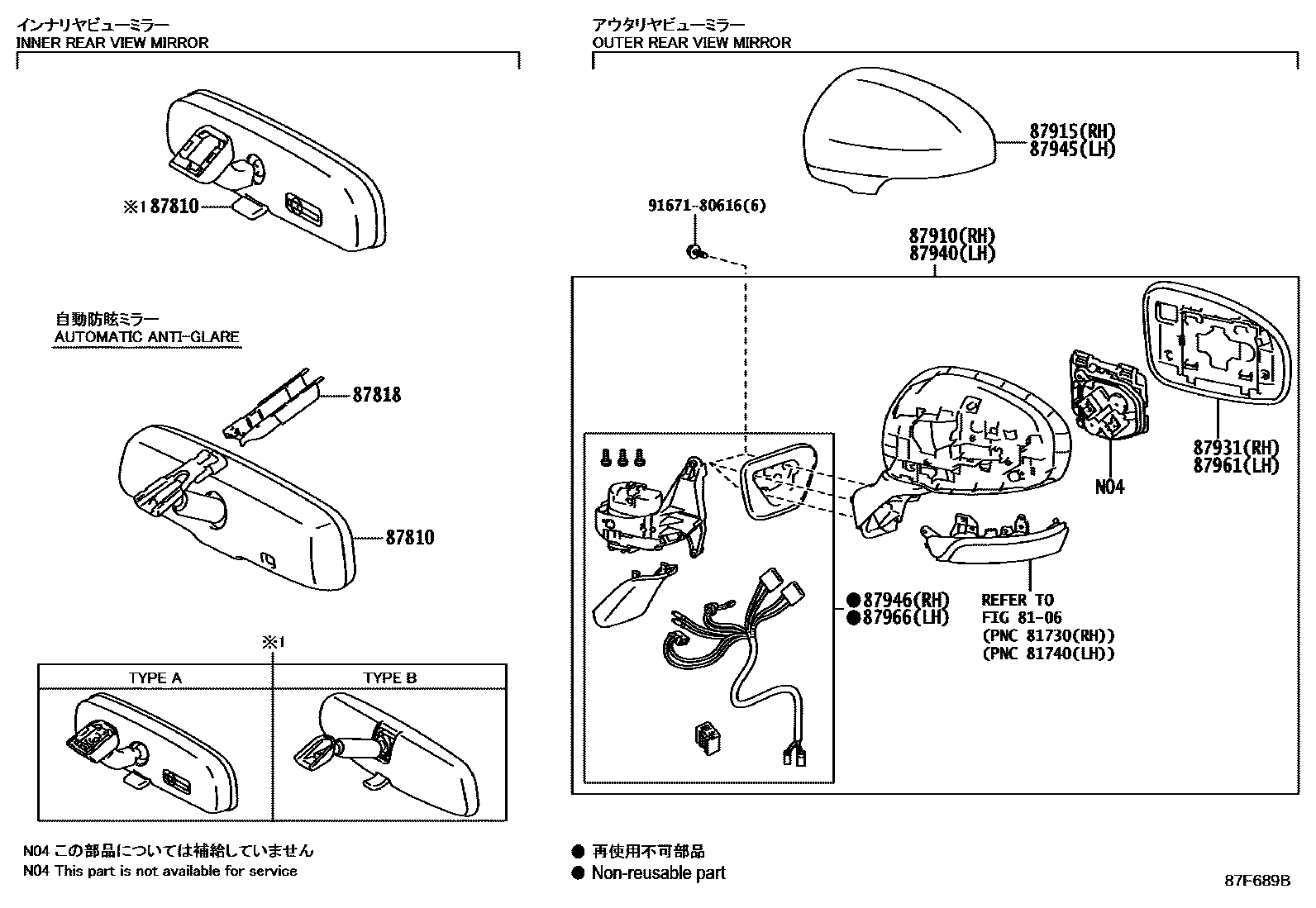

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W260iZVW35201310-201506

main87810-52041iZVW35201201-201310

TYPE A

main87810-AA011iZVW35201201-201310

TYPE B

87818COVER, INNER RR VIEW MIRROR

main87818-47010iZVW35201310-201506

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-47330iZVW35201201-201506

NO PAINT REQ.

87915COVER, OUTER MIRROR, RH

main87915-74010-A0iZVW35201205-201506

SUPER WHITE 2,040

main87915-74010-A1iZVW35201201-201506

WHITE PEARL CS.,070

main87915-74010-B0iZVW35201201-201506

SILVER ME.,1F7

main87915-74010-J2iZVW35201201-201506

ABYSS GRAY ME.,8V1

main87915-74010-J9iZVW35201201-201506

TRUE BLUE M.M.,8W1

87931OUTER MIRROR, RH

main87931-47200iZVW35201201-201506

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-47310iZVW35201201-201506

NO PAINT REQ.

87945COVER, OUTER MIRROR, LH

main87945-74010-A0iZVW35201205-201506

SUPER WHITE 2,040

main87945-74010-A1iZVW35201201-201506

WHITE PEARL CS.,070

main87945-74010-B0iZVW35201201-201506

SILVER ME.,1F7

main87945-74010-J2iZVW35201201-201506

ABYSS GRAY ME.,8V1

main87945-74010-J9iZVW35201201-201506

TRUE BLUE M.M.,8W1

87946RETRACTOR, OUTER MIRROR, RH

main87946-47310iZVW35201201-201506

87961MIRROR OUTER, LH

main87961-47150iZVW35201201-201506

87966RETRACTOR, OUTER MIRROR, LH

main87966-47310iZVW35201201-201506

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
