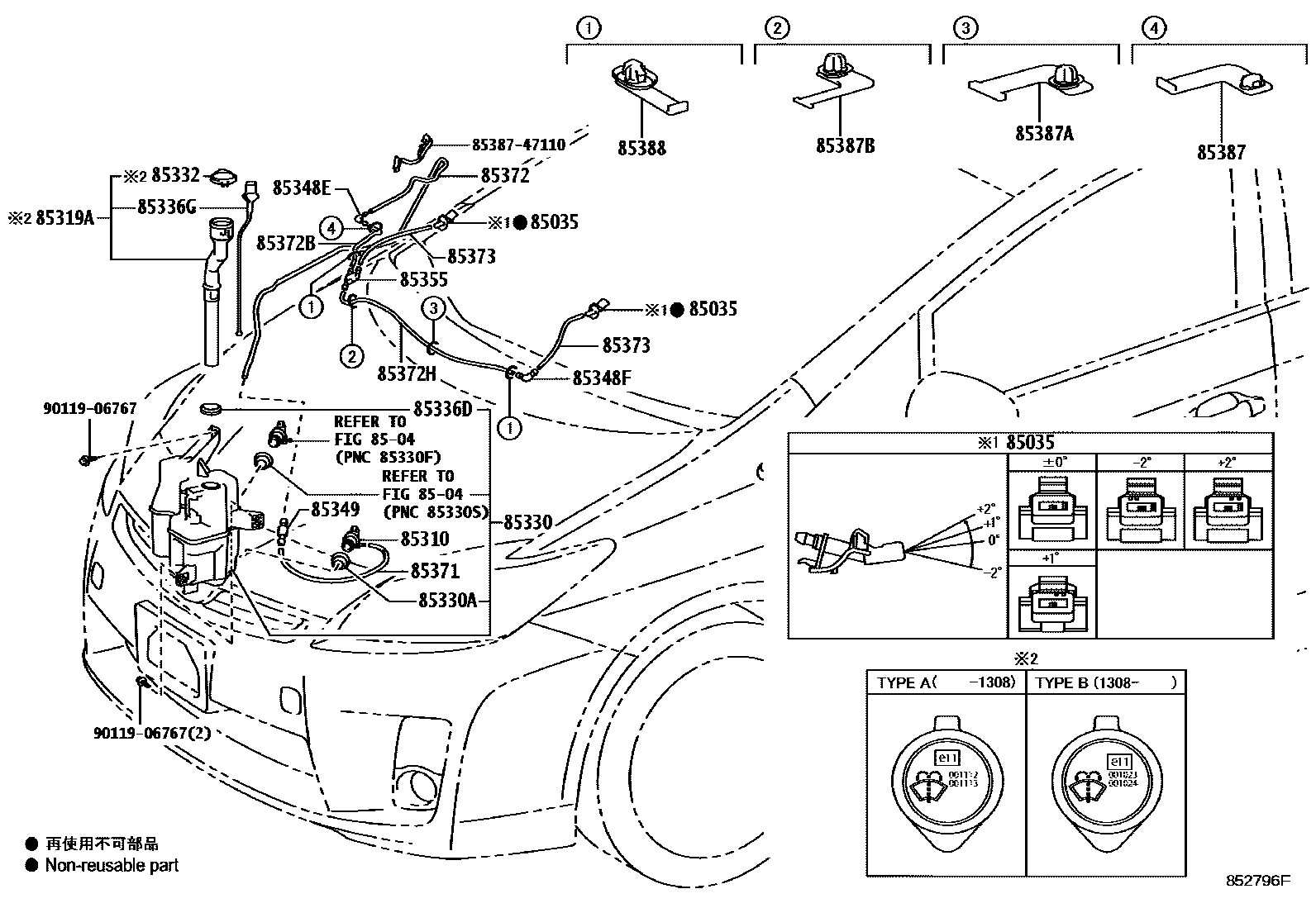

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE +2
ANGLE 0
ANGLE -2
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
HEADLAMP-LED
85332CAP, WINDSHIELD WASHER JAR
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
85336DPACKING, WINDSHIELD WASHER JAR
HEADLAMP-LED
85336GGAGE, WATER LEVEL
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=470
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1380)
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=300)
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=830)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=250)
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
8538747110CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-47110
9011906767
main90119-06767
24 parts on this diagram · 2 diagrams in section
