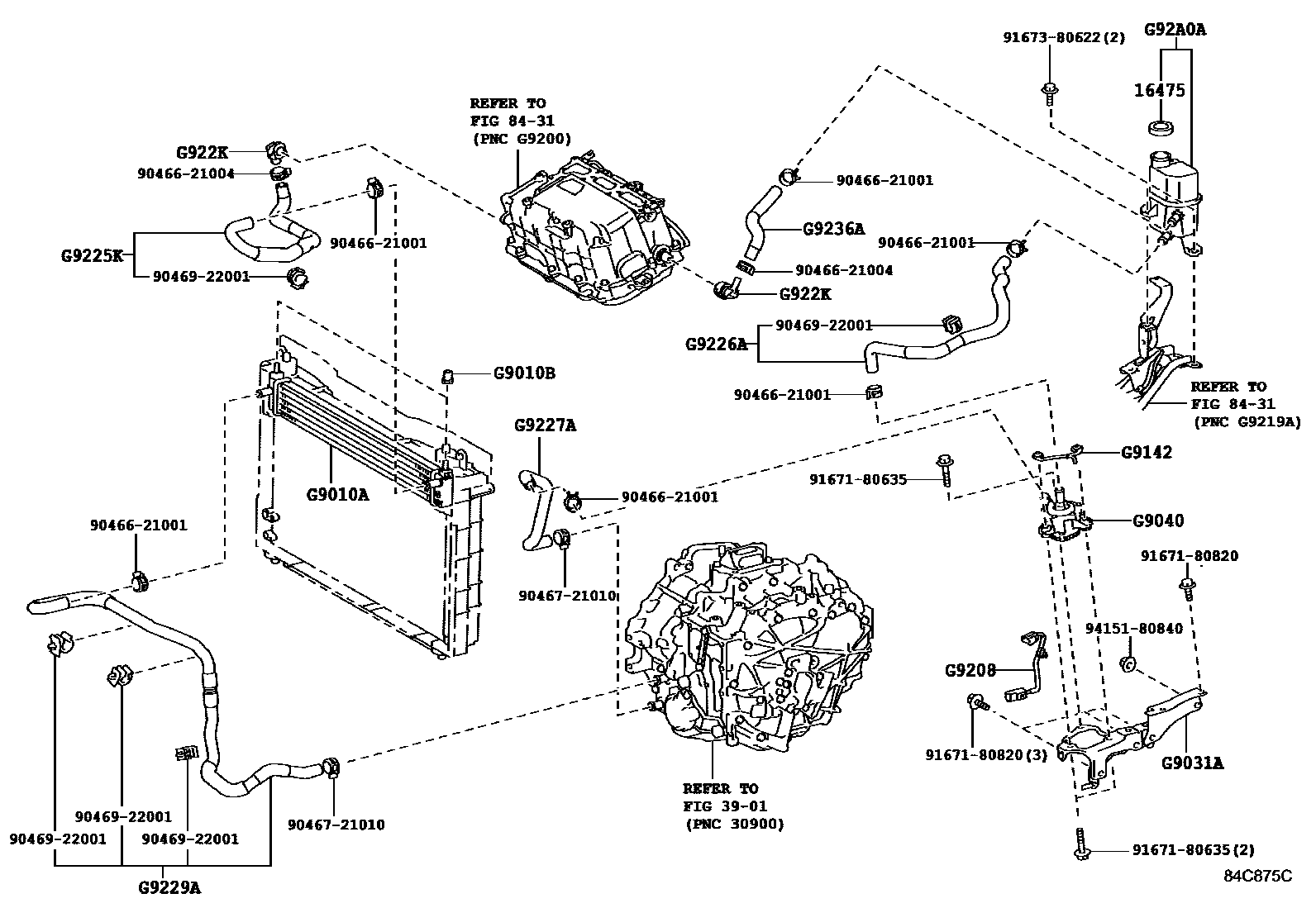

INVERTER COOLING

16475CAP, RESERVE TANK

main16475-37010i2ZRFXE..ZVW35201201-201409

sub16475-28140

main16475-37011i2ZRFXE..ZVW35201410-201503

sub16475-28140

3901

8431

G9010ARADIATOR ASSY

mainG901047040iZVW35201201-201506

G9010BCUSHION, INVERTER RADIATOR

main16716-37010×2iZVW35201201-201506

G9031ABRACKET SUB-ASSY, HV WATER PUMP

mainG903147010iZVW35201201-201506

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904052010iZVW35201201-201506

G9142BRACKET, HYBRID WATER PUMP, NO.2

mainG914247010iZVW35201201-201506

G9208WIRE SUB-ASSY, INVERTER

mainG920847080iZVW35201201-201506

G9225KHOSE, INVERTER COOLING, NO.1

mainG922547021iZVW35201201-201506

G9226AHOSE, INVERTER COOLING, NO.2

mainG922647020iZVW35201201-201506

G9227AHOSE, INVERTER COOLING, NO.3

mainG922747020iZVW35201201-201506

G9229AHOSE, INVERTER COOLING, NO.5

mainG922947020iZVW35201201-201506

G922KCONNECTOR, HYBRID WATER HOSE

mainG922K47011×2iZVW35201201-201506

G9236AHOSE, INVERTER COOLING, NO.6

mainG923647031iZVW35201201-201506

G92A0ATANK ASSY, INVERTER RESERVE

mainG92A047010iZVW35201201-201409

mainG92A047011iZVW35201410-201503

9046621001

main90466-21001

9046621004

main90466-21004

9046721010

main90467-21010

9046922001

main90469-22001

9167180635

main91671-80635

9167180820

main91671-80820

9167380622

main91673-80622

9415180840

main94151-80840

24 parts on this diagram · 1 diagram in section
