AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-47121iZVW35201201-201506

89173ASENSOR, AIRBAG, FRONT RH

main89173-79025iZVW35201201-201506

89174ASENSOR, AIRBAG, FRONT LH

main89173-79025iZVW35201201-201506

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-75010iZVW35201201-201506

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-75010iZVW35201201-201506

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-75020iZVW35201201-201506

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-75020iZVW35201201-201506

9011908C89

main90119-08C89

9155380618

main91553-80618

91553A0625

main91553-A0625

9415180600

main94151-80600

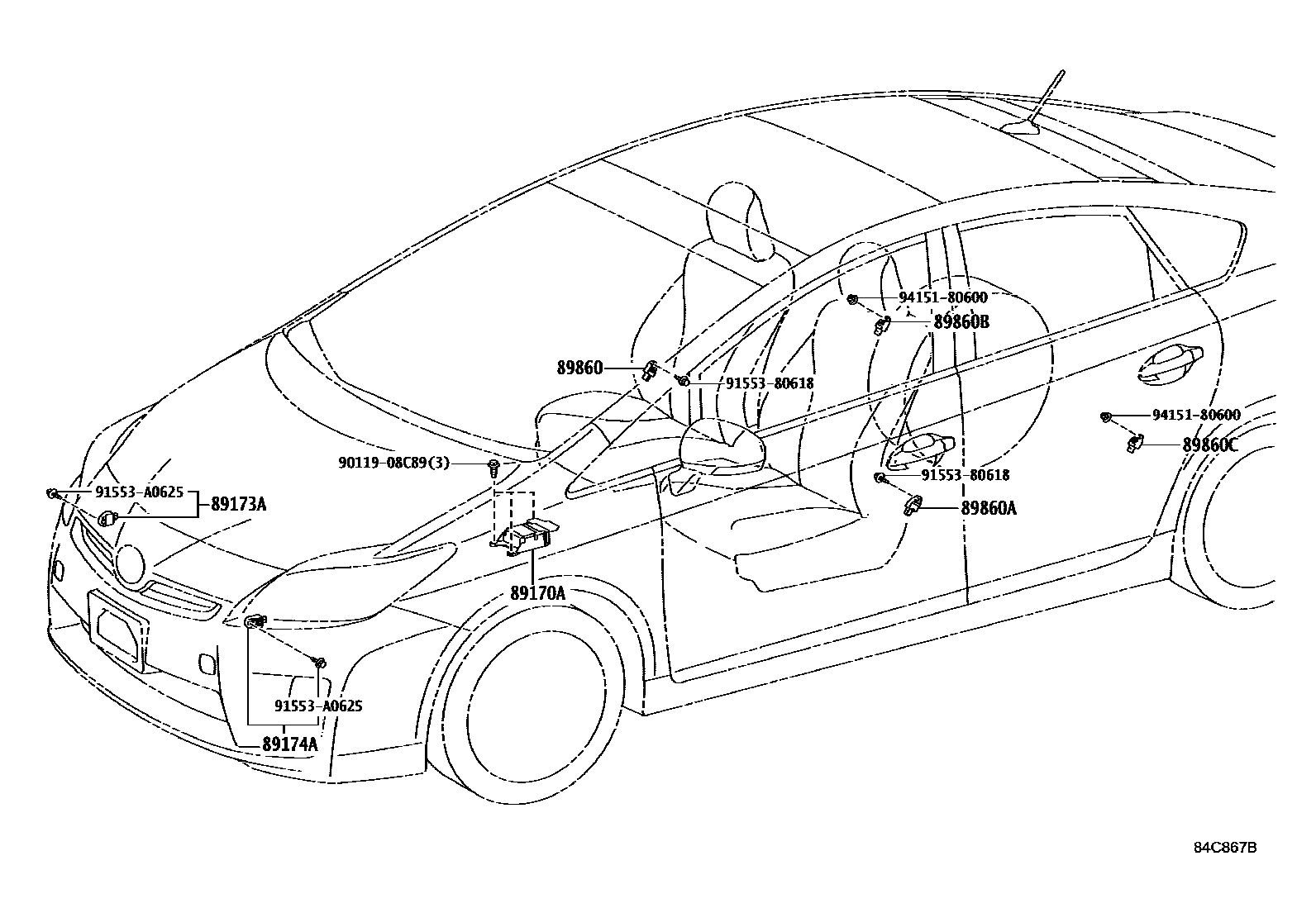

11 parts on this diagram · 1 diagram in section
