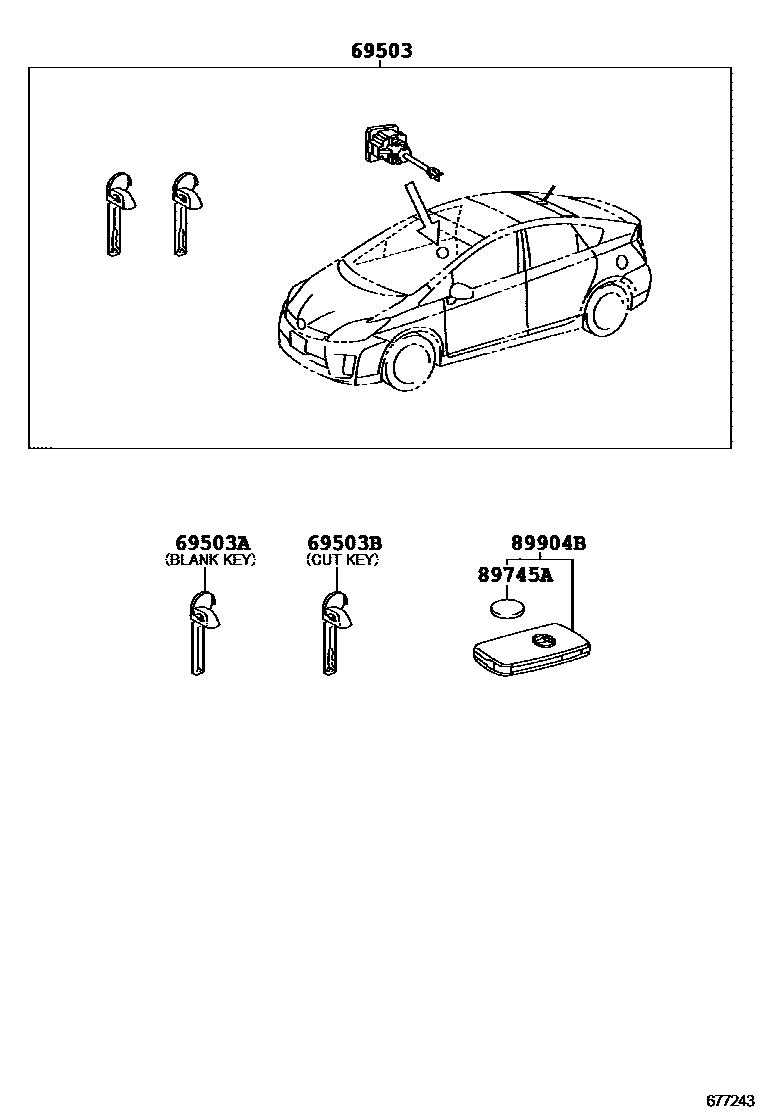

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-47130iZVW35201201-201506

69503AKEY, BLANK

main69515-52120iZVW35201201-201506

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-52110×2iZVW35201201-201506

MASTER KEY,W(*68)

89745ABATTERY, TRANSMITTER

main89745-52020iZVW35201201-201506

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-47150×2iZVW35201201-201506

5 parts on this diagram · 1 diagram in section
