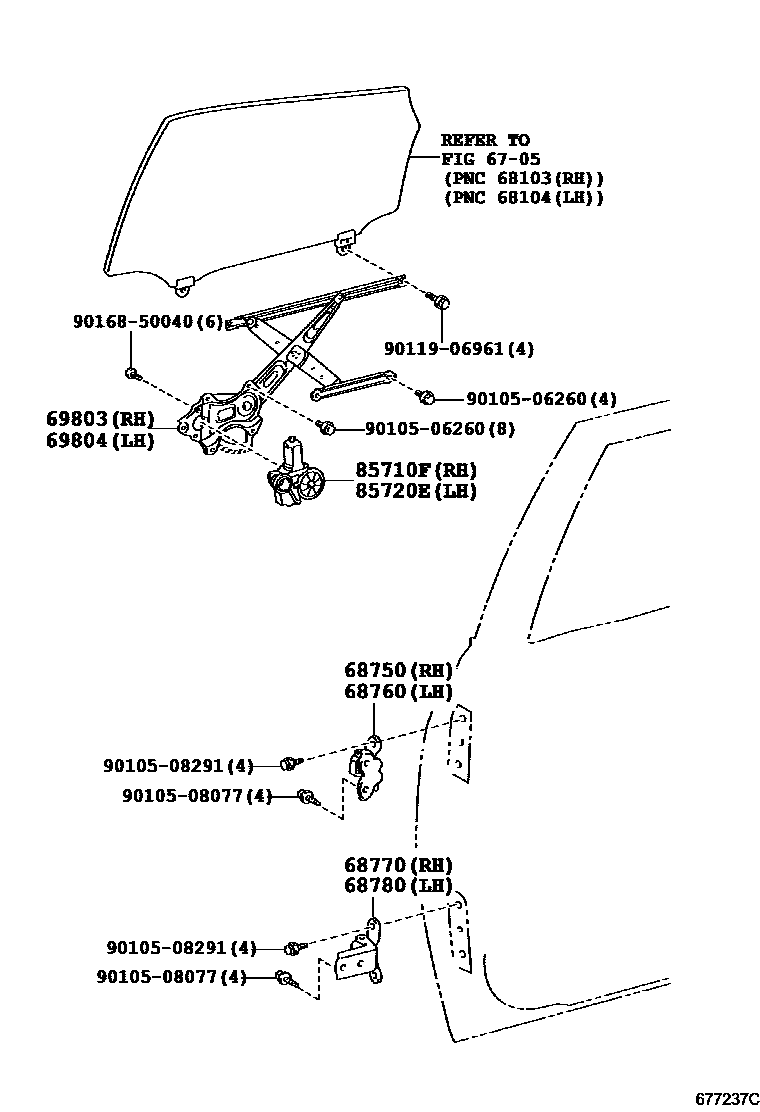

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iZVW35201201-201205

main68750-20122iZVW35201206-201506

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iZVW35201201-201205

main68760-20122iZVW35201206-201506

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZVW35201201-201506

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZVW35201201-201506

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-52070iZVW35201201-201506

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-52070iZVW35201201-201506

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-47090iZVW35201201-201208

main85710-47120iZVW35201209-201312

main85710-47130iZVW35201401-201506

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-47090iZVW35201201-201208

main85720-47120iZVW35201209-201312

main85720-47130iZVW35201401-201506

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
