SIDE MEMBER
5701
58745PROTECTOR, QUARTER PANEL, FRONT RH
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61205RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH
61211RAIL, ROOF SIDE, OUTER RH
61217DRAIL, ROOF SIDE, OUTER NO.4 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61623DEXTENSION, QUARTER PANEL, FRONT RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61691DREINFORCE, REAR SEAT BACK LOCK STRIKER, RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61733APANEL, ROOF SIDE, INNER FRONT RH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61777DRETAINER, BACK DOOR SIDE STOPPER, RH
61824PLATE, NOISE CONTROL, NO.1
62152BPAD, COWL SIDE SILENCER, NO.2
NO.1
NO.2
62554BPAD, PILLAR, NO.4
65637LINER, REAR WHEEL HOUSE, RH
68981ARETAINER, BACK DOOR STAY, RH
9017906308
main90179-06308
9046706206C0
main90467-06206C0
9046708186C0
main90467-08186C0
91641K0816
main91641-K0816
9167380820
main91673-80820

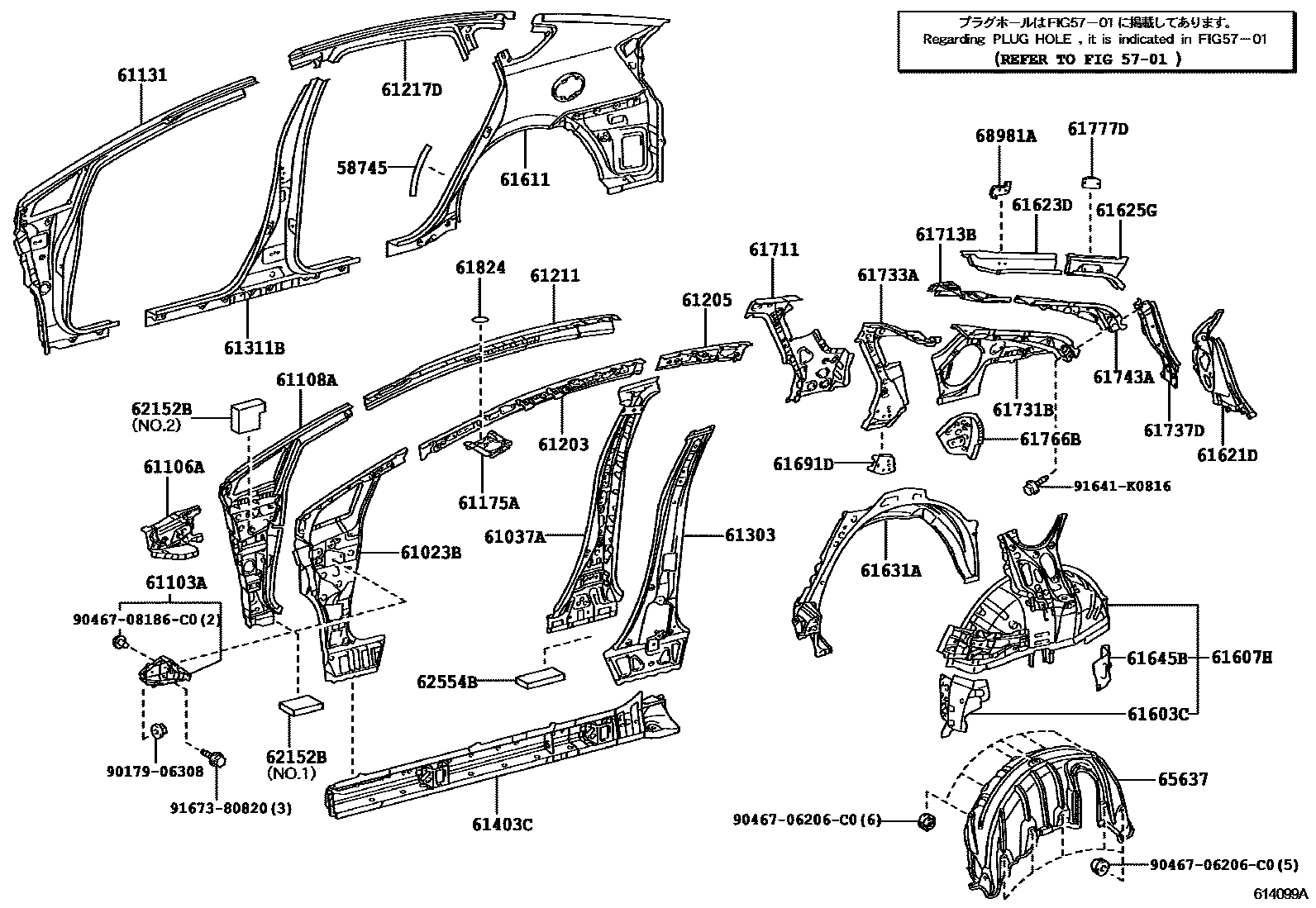

43 parts on this diagram · 2 diagrams in section
