RADIATOR GRILLE

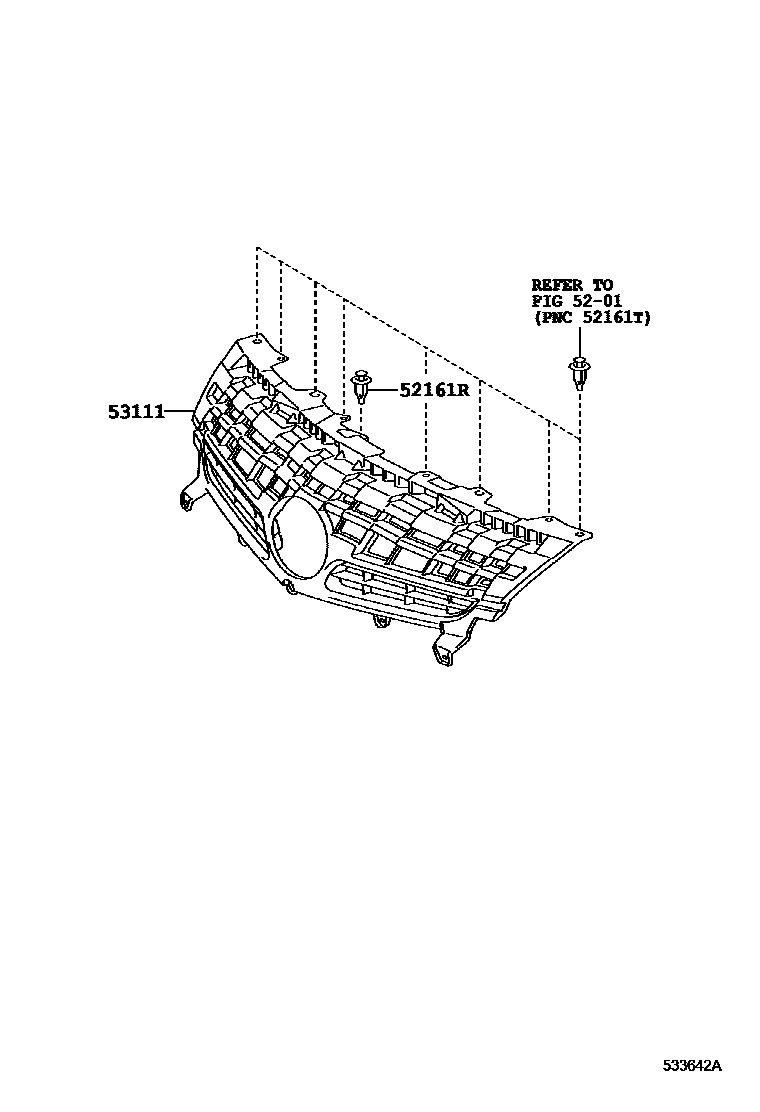

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161RPIECE, FRONT BUMPER

main52161-16010i201201-201506

53111GRILLE, RADIATOR

main53111-47040i201201-201506

NO PAINT REQ.

3 parts on this diagram · 1 diagram in section
