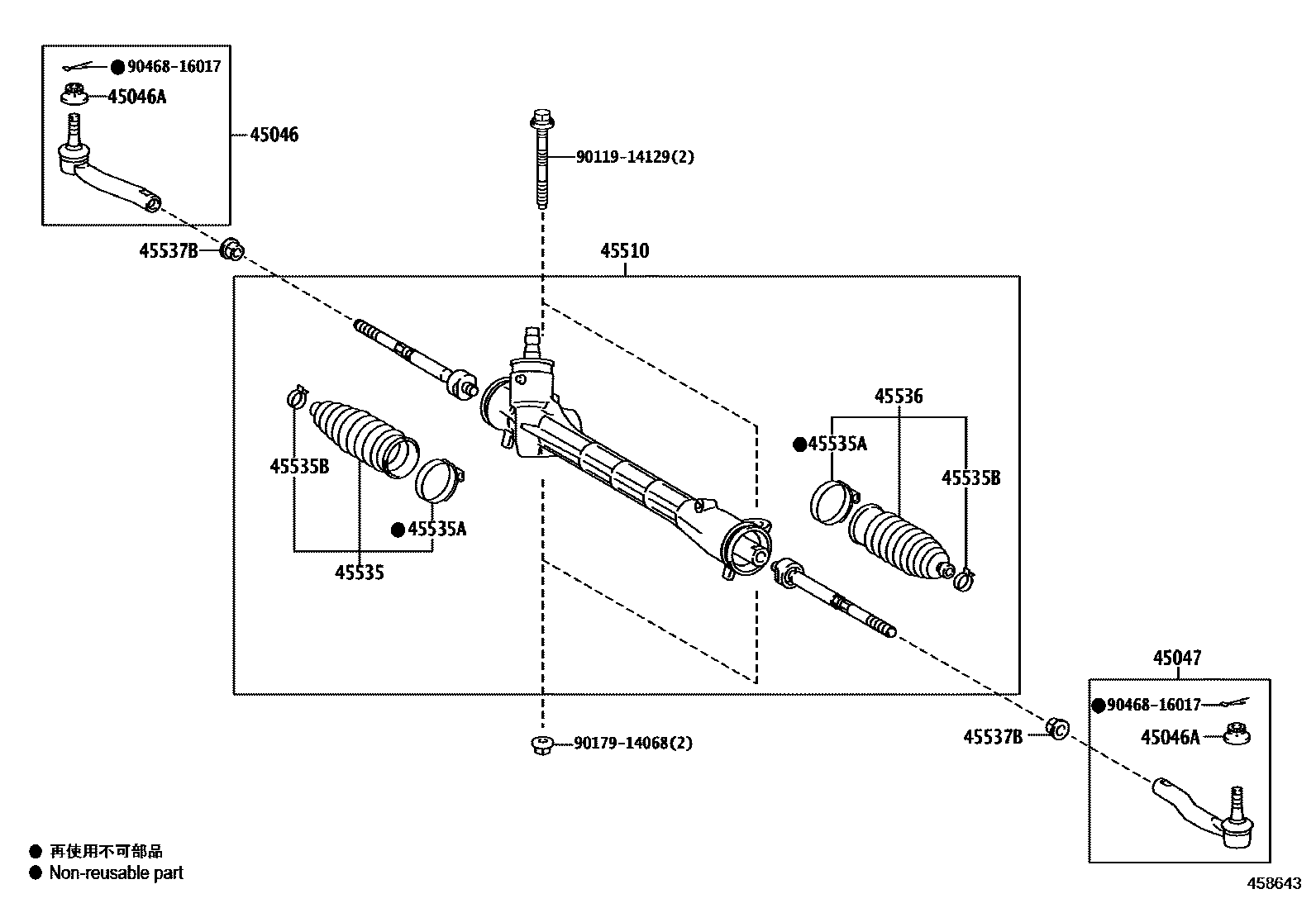

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49225iZVW35201201-201506

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014×2iZVW35201201-201506

45047END SUB-ASSY, TIE ROD, LH

main45047-49165iZVW35201201-201506

45510GEAR ASSY, STEERING

main45510-47070iZVW35201201-201506

45535BOOT, STEERING RACK, NO.1

main45535-49015iZVW35201201-201506

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010×2iZVW35201201-201506

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZVW35201201-201506

45536BOOT, STEERING RACK, NO.2

main45535-49015iZVW35201201-201506

45537BNUT, RACK END LOCK

main90179-14019×2iZVW35201201-201506

9011914129

main90119-14129

9017914068

main90179-14068

9046816017

main90468-16017

12 parts on this diagram · 1 diagram in section
