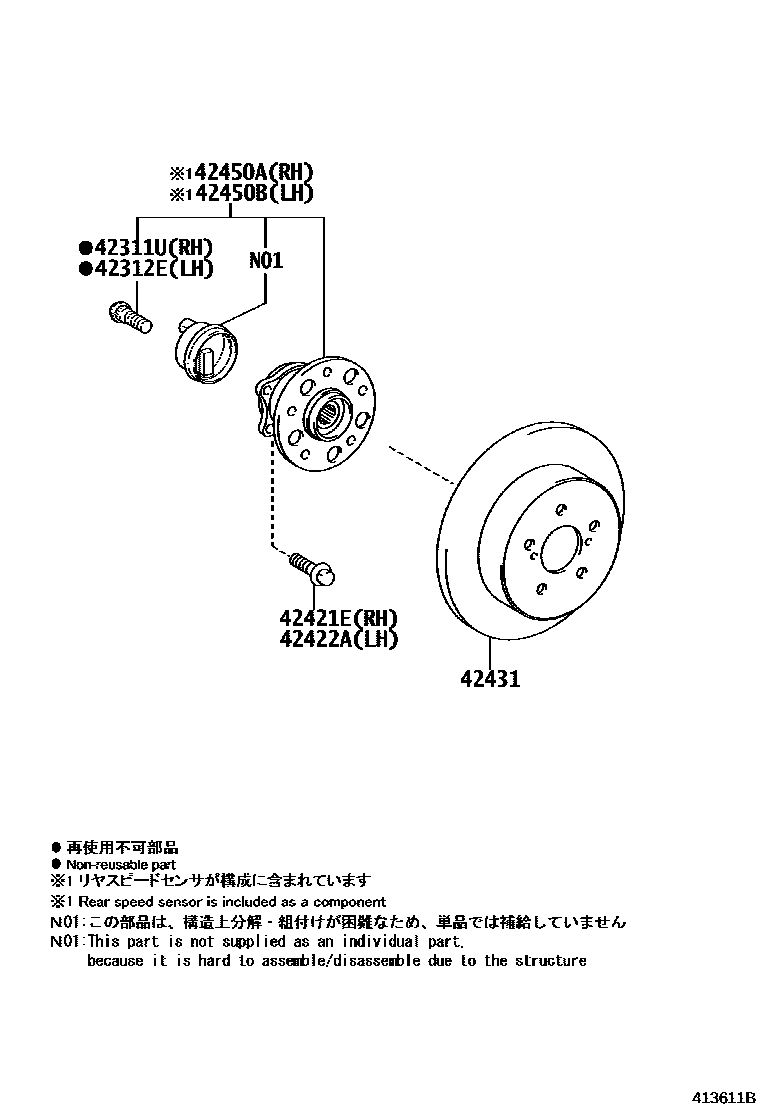

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZVW35201201-201506

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZVW35201201-201506

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iZVW35201201-201506

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iZVW35201201-201506

42431DISC, REAR

main42431-12310×2iZVW35201201-201506

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-47040iZVW35201201-201506

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-47040iZVW35201201-201506

7 parts on this diagram · 1 diagram in section
