HORN

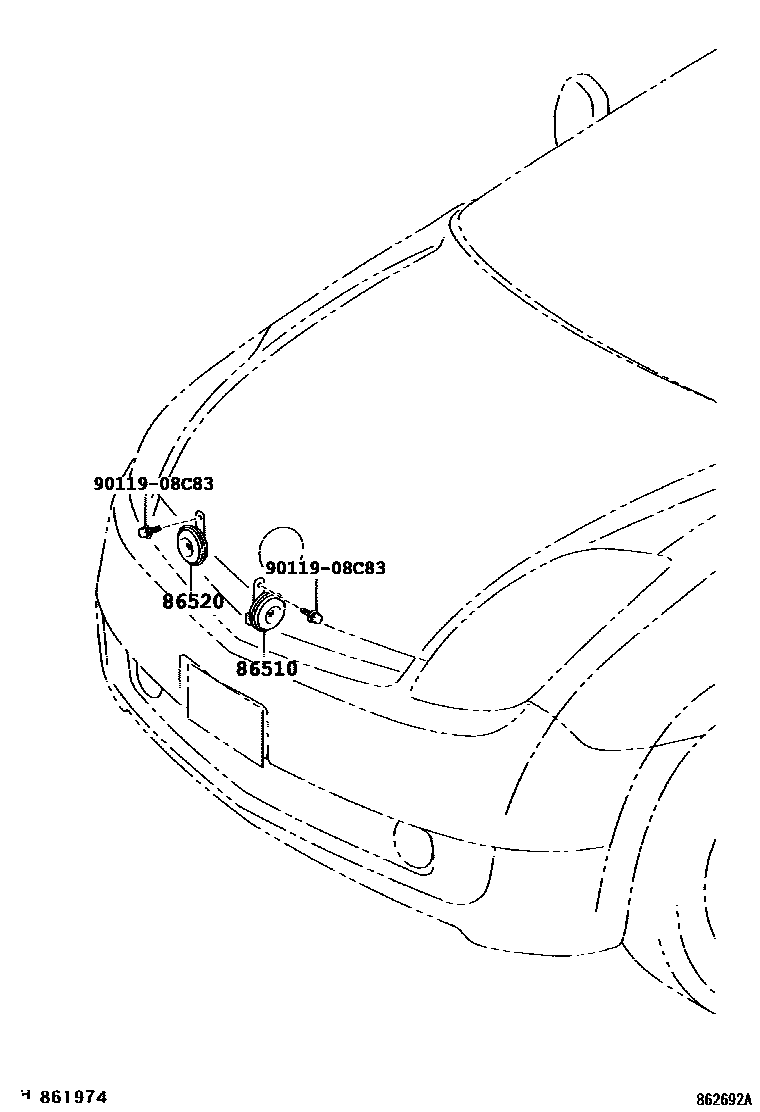

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-06101i200709

main86510-33170i200511-200608

main86510-33171i200609-200709

86520HORN ASSY, LOW PITCHED

main86520-06091i200709

main86520-35160i200511-200608

main86520-35161i200609-200709

9011908C83

main90119-08C83

3 parts on this diagram · 1 diagram in section
