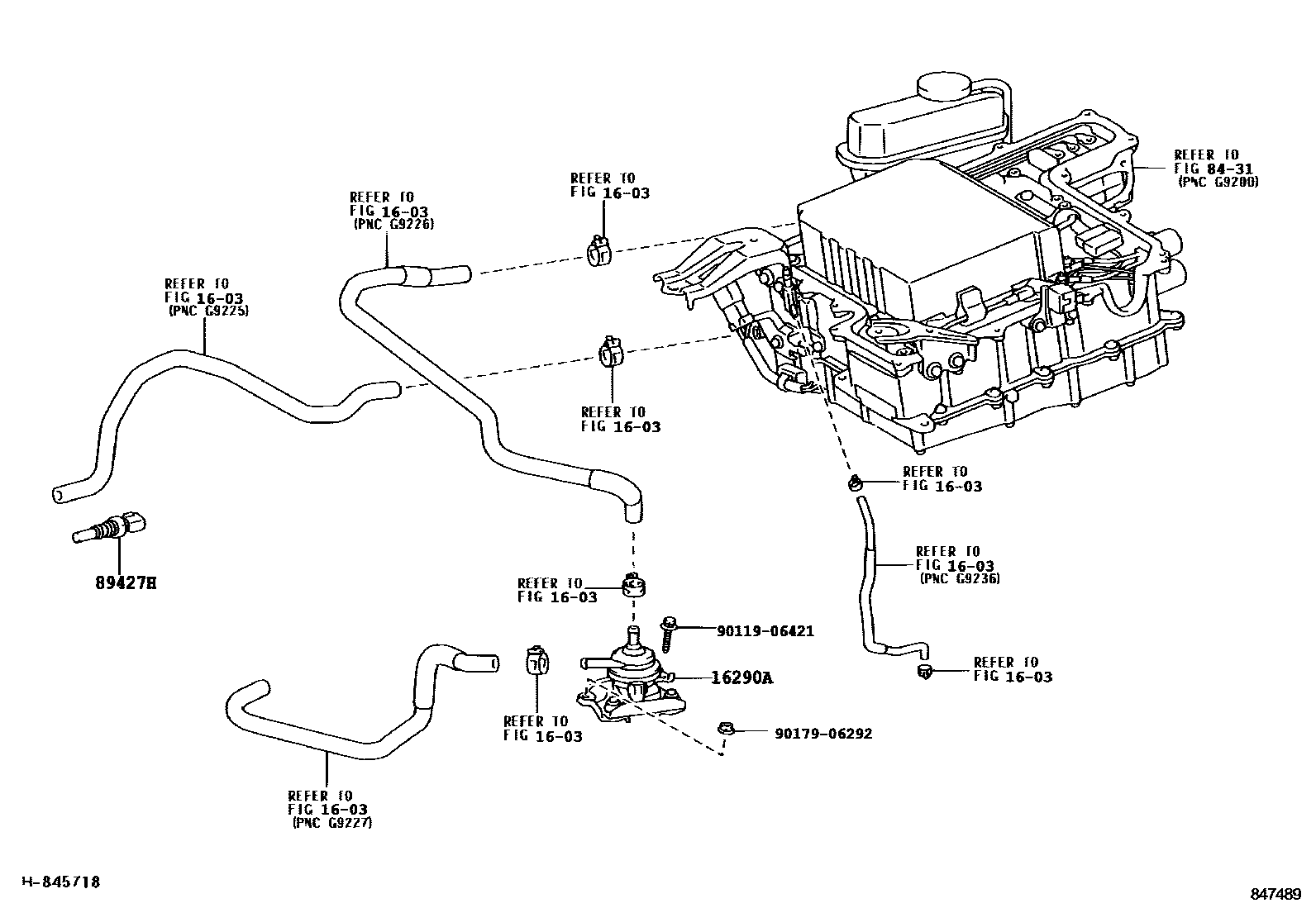

INVERTER COOLING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16290APUMP ASSY, WATER W/MOTOR & BRACKET

mainG902047030i1NZFXE..NHW20200511-200704

mainG902047031i1NZFXE..NHW20200705

8431HEV INVERTER

→ Go to FIG 84-31

89427HSWITCH, TEMPERATURE (FOR RADIATOR FAN)

main89427-47010iNHW20200511-200904

9011906421

main90119-06421

9017906292

main90179-06292

6 parts on this diagram · 1 diagram in section
