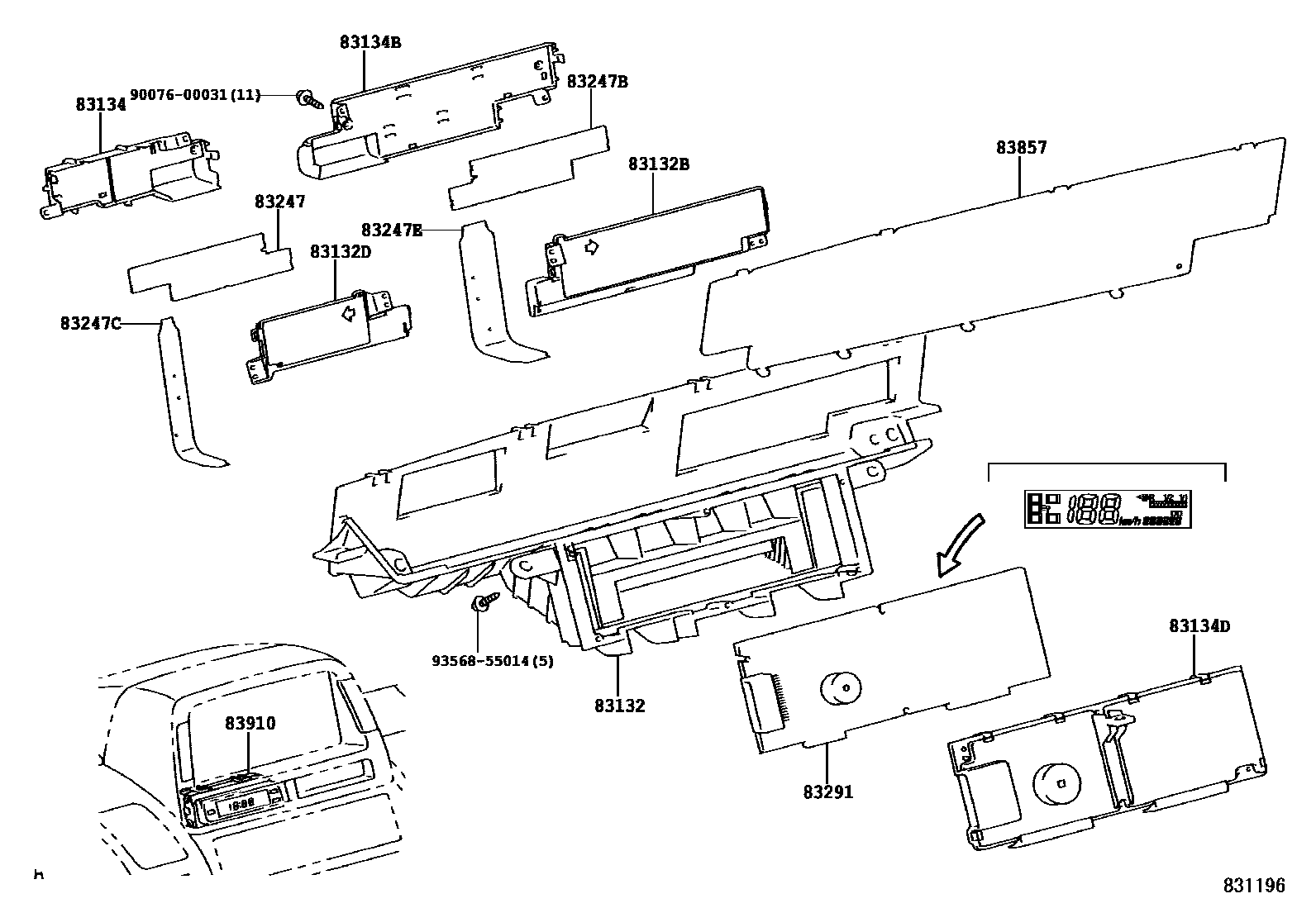

METER

83132CASE, COMBINATION METER

main83841-47130iNHW20200511-200701

83132BCASE, COMBINATION METER NO.3

main83841-47250iNHW20200511-200701

83132DCASE, COMBINATION METER, NO.2

main83842-47120iNHW20200511-200701

83134COVER, COMBINATION METER, NO.1

main83821-47100iNHW20200511-200701

83134BCOVER, COMBINATION METER, NO.2

main83822-47100iNHW20200511-200701

83134DCOVER, COMBINATION METER, NO.3

main83823-47100iNHW20200511-200701

83247PLATE, METER CIRCUIT

main83861-47250iNHW20200511-200701

83247BPLATE, METER CIRCUIT, NO.2

main83862-47250iNHW20200511-200701

83247CPLATE, MATER CIRCUIT, NO.3

main83863-47100iNHW20200511-200701

83247EPLATE, MATER CIRCUIT, NO.4

main83864-47100iNHW20200511-200701

83291COMPUTER, COMBINATION METER

main83291-47210iNHW20200511-200702

main83291-47211iNHW20200702

83857REFLECTOR, COMBINATION METER, NO.1

main83857-47100iNHW20200511-200701

83910CLOCK ASSY

main83910-47040iNHW20200511

9007600031

main90076-00031

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
