Toyota PRIUS (CHINA)223 — INTERIOR LAMP

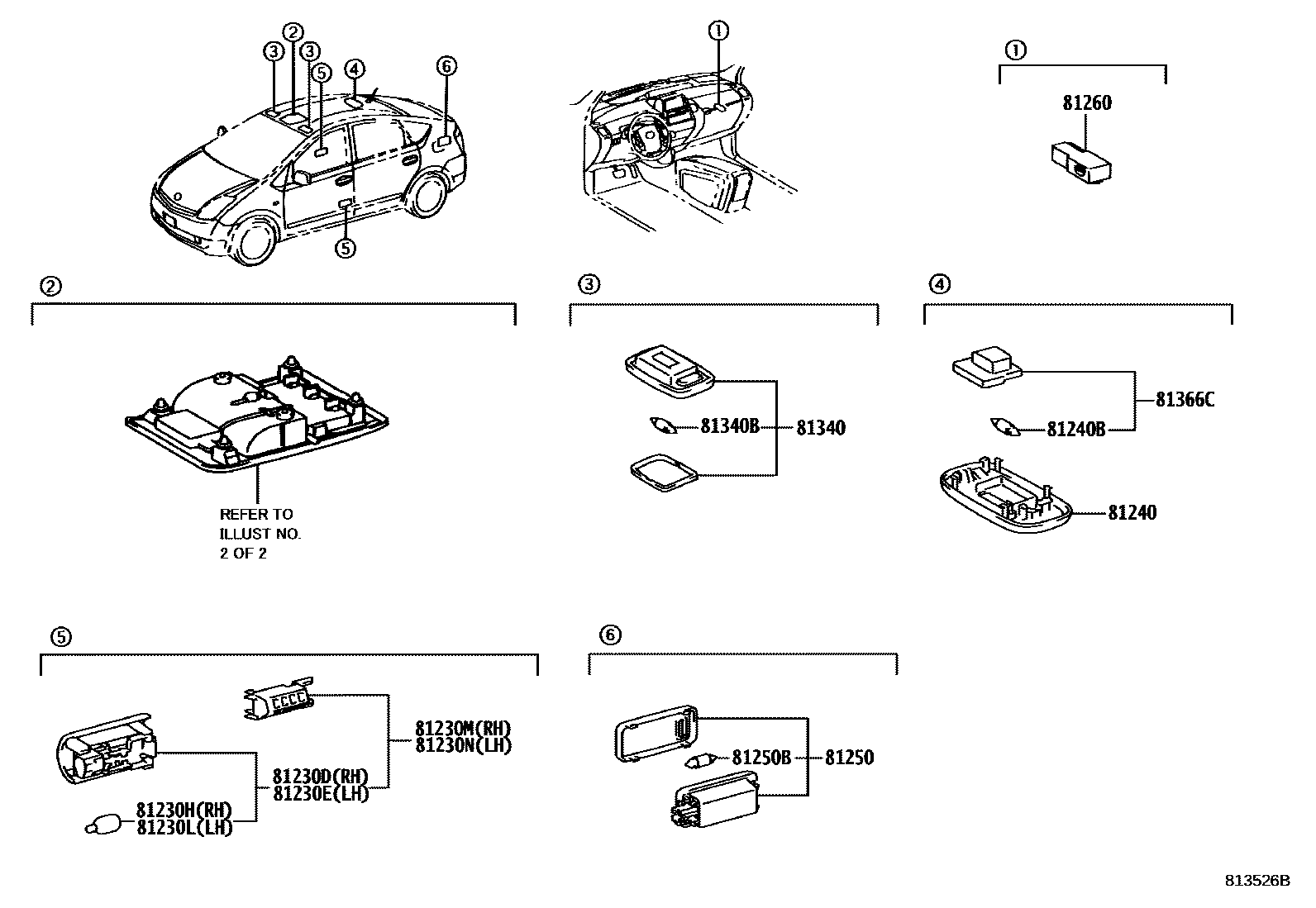

Parts diagram

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

81230MLAMP ASSY, COURTESY, RH

81230NLAMP ASSY, COURTESY, LH

81240LAMP ASSY, ROOM, NO.1

81240BBULB, ROOM LAMP, NO.1

81250LAMP ASSY, ROOM, NO.2

81250BBULB, ROOM LAMP, NO.2

81260LAMP ASSY, GLOVE BOX

81340LAMP ASSY, VANITY

81340BBULB (FOR VANITY LAMP)

81366CBASE, ROOM LAMP SWITCH

14 parts on this diagram · 2 diagrams in section

INTERIOR LAMP for Toyota PRIUS (CHINA)223

This section contains 19 genuine Toyota parts for the INTERIOR LAMP system of the Toyota PRIUS (CHINA)223. Key components include: LAMP ASSY, FRONT DOOR COURTESY, RH, LAMP ASSY, FRONT DOOR COURTESY, LH, BULB(FOR FRONT DOOR COURTESY LAMP RH), BULB(FOR FRONT DOOR COURTESY LAMP LH), LAMP ASSY, COURTESY, RH.
