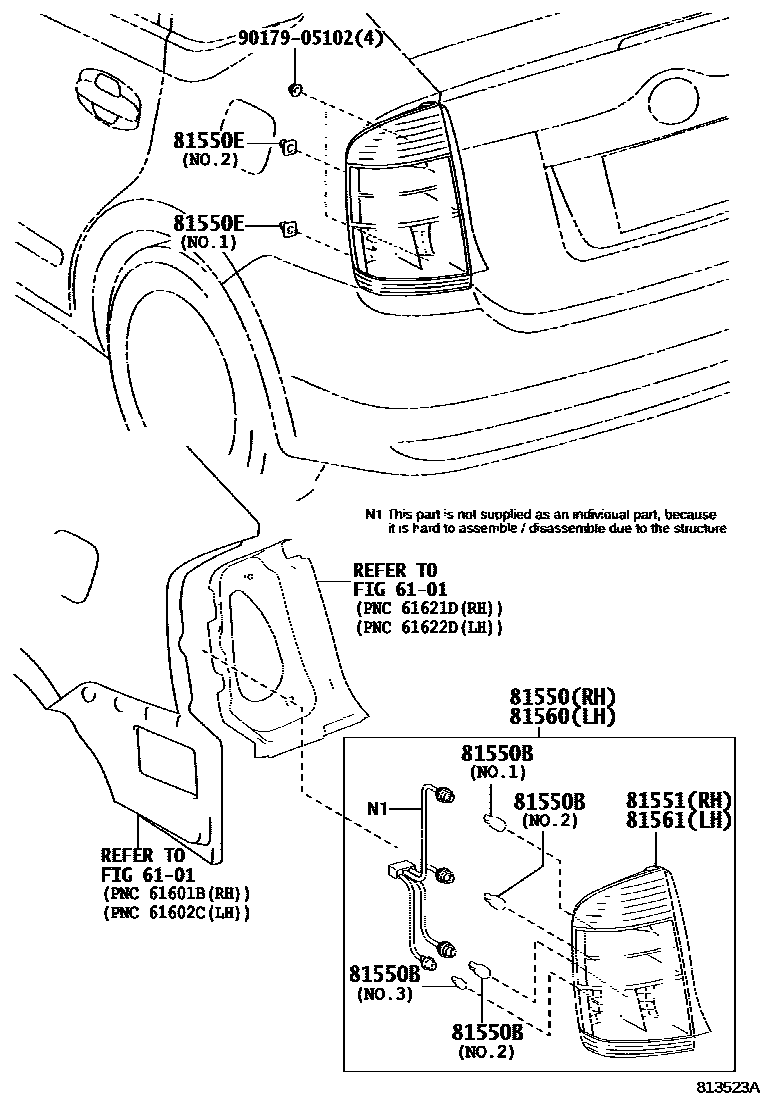

REAR COMBINATION LAMP

6101SIDE MEMBER

→ Go to FIG 61-01

81550LAMP ASSY, REAR COMBINATION, RH

main81550-47090iNHW20200511-200611

main81550-47091iNHW20200612

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×4iNHW20200511-200611

12V 21W,NO.2

main90981-15011×2iNHW20200612

12V 21W,AMBER,NO.1

main99132-12050×2iNHW20200612

12V 5W,NO.3

81550ECLIP(FOR REAR COMBINATION LAMP)

main90467-09075×2iNHW20200511

NO.1

main90467-09112×2iNHW20200511

NO.2

81551LENS, REAR COMBINATION LAMP, RH

main81551-47090iNHW20200511-200611

main81551-47091iNHW20200612

81560LAMP ASSY, REAR COMBINATION, LH

main81560-47090iNHW20200511-200611

main81560-47091iNHW20200612

81561LENS, REAR COMBINATION LAMP, LH

main81561-47090iNHW20200511-200611

main81561-47091iNHW20200612

9017905102

main90179-05102

8 parts on this diagram · 1 diagram in section
