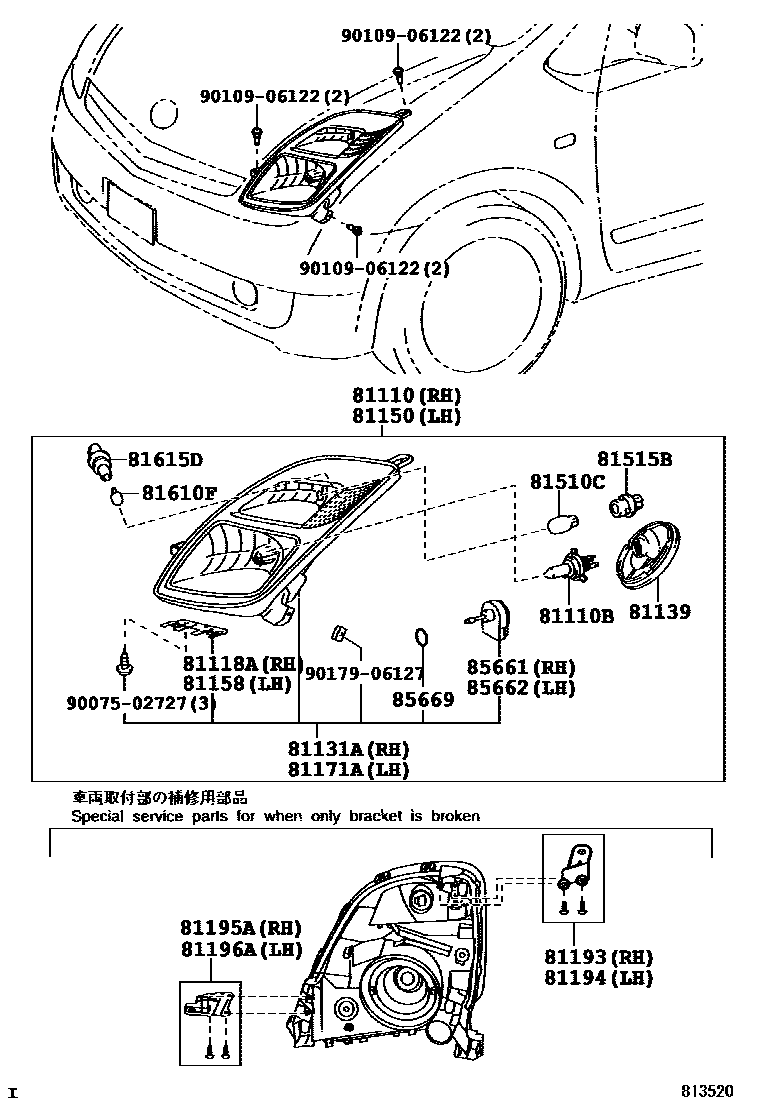

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-47180iNHW20200511-200609

main81110-47181iNHW20200610

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNHW20200511

12V 60/55W,HALOGEN

81118ABRACKET, HEADLAMP, RH

main81118-47060iNHW20200511

81131AUNIT, HEADLAMP, RH

main81130-47180iNHW20200511-200609

main81130-47181iNHW20200610

81139COVER, HEADLAMP SOCKET

main81139-47060×2iNHW20200511

81150HEADLAMP ASSY, LH

main81150-47180iNHW20200511-200609

main81150-47181iNHW20200610

81158BRACKET, HEADLAMP, LH

main81158-47060iNHW20200511

81171AUNIT, HEADLAMP, LH

main81170-47180iNHW20200511-200609

main81170-47181iNHW20200610

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-47020iNHW20200511

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-47020iNHW20200511

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-47020iNHW20200511

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-47020iNHW20200511

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNHW20200511-200609

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iNHW20200511

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNHW20200511-200609

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004×2iNHW20200511

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNHW20200511

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNHW20200511

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNHW20200511

9007502727

main90075-02727

9010906122

main90109-06122

9017906127

main90179-06127

22 parts on this diagram · 1 diagram in section
