ARMREST & VISOR

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-47081iNHW20200511-200904

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-47071iNHW20200511-200904

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-47051iNHW20200511-200904

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-47051iNHW20200511-200904

74310VISOR ASSY, RH

main74310-47123-B4iNHW20200511-200904

LT.GRAY,TRIM1#

74320VISOR ASSY, LH

main74320-47102-B0iNHW20200511-200904

LT.GRAY,TRIM1#

74348HOLDER, VISOR

main74348-12040-B0×2iNHW20200511-200904

LT.GRAY,TRIM1#

74610AGRIP SUB-ASSY, ASSIST

main74610-52010-B1×2iNHW20200511-200904

GRAY,TRIM1#,REAR

main74610-68010-B1×2iNHW20200511-200904

GRAY,TRIM1#,FRONT

74612COVER, ASSIST GRIP

main74612-68010-B1×8iNHW20200511-200904

GRAY,TRIM1#

74811BHANDLE, DOOR PULL

main74811-12060-B3×4iNHW20200511-200904

MD.GRAY,TRIM1#

9015250027

main90152-50027

9046710203

main90467-10203

9356855016

main93568-55016

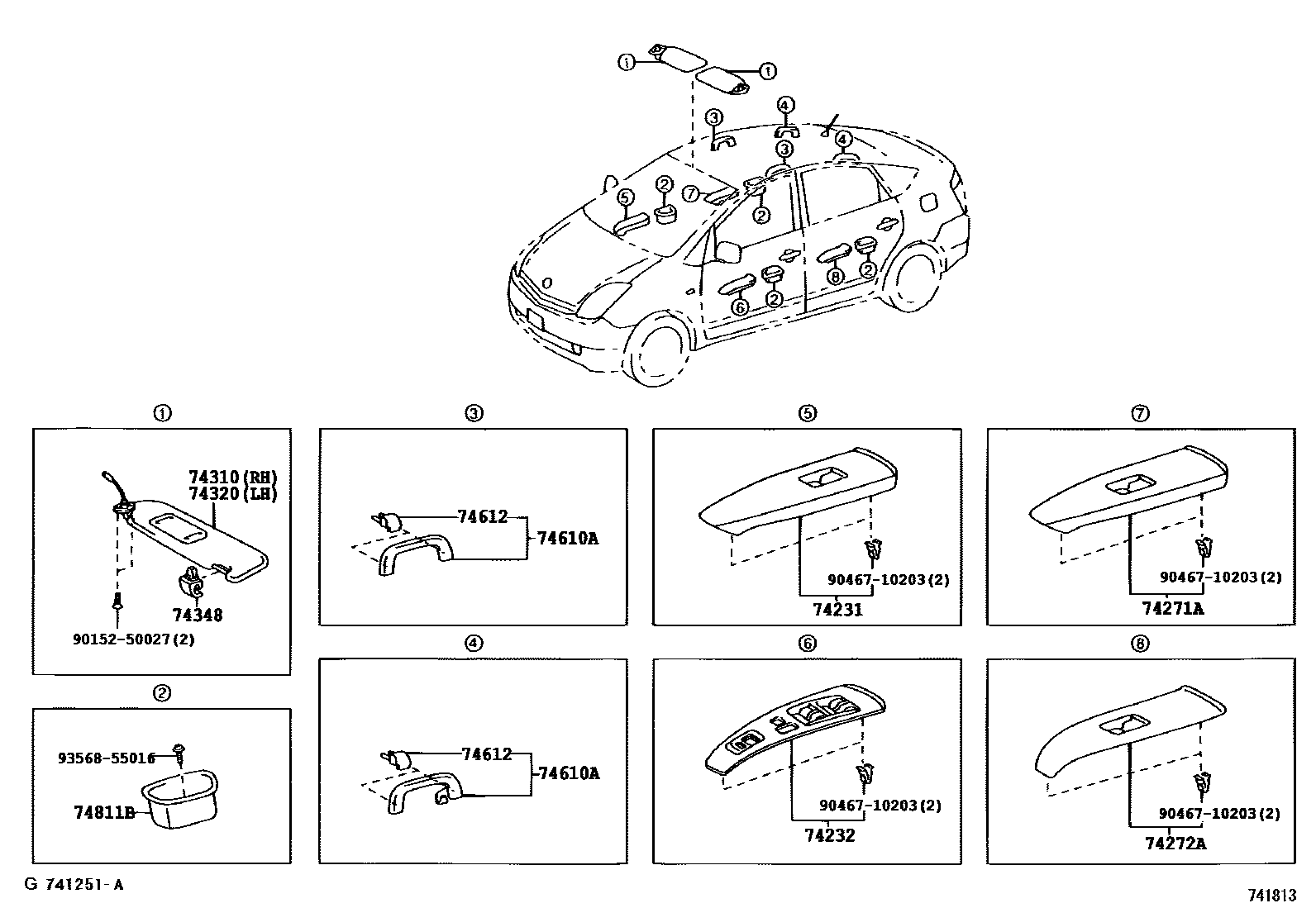

13 parts on this diagram · 1 diagram in section
