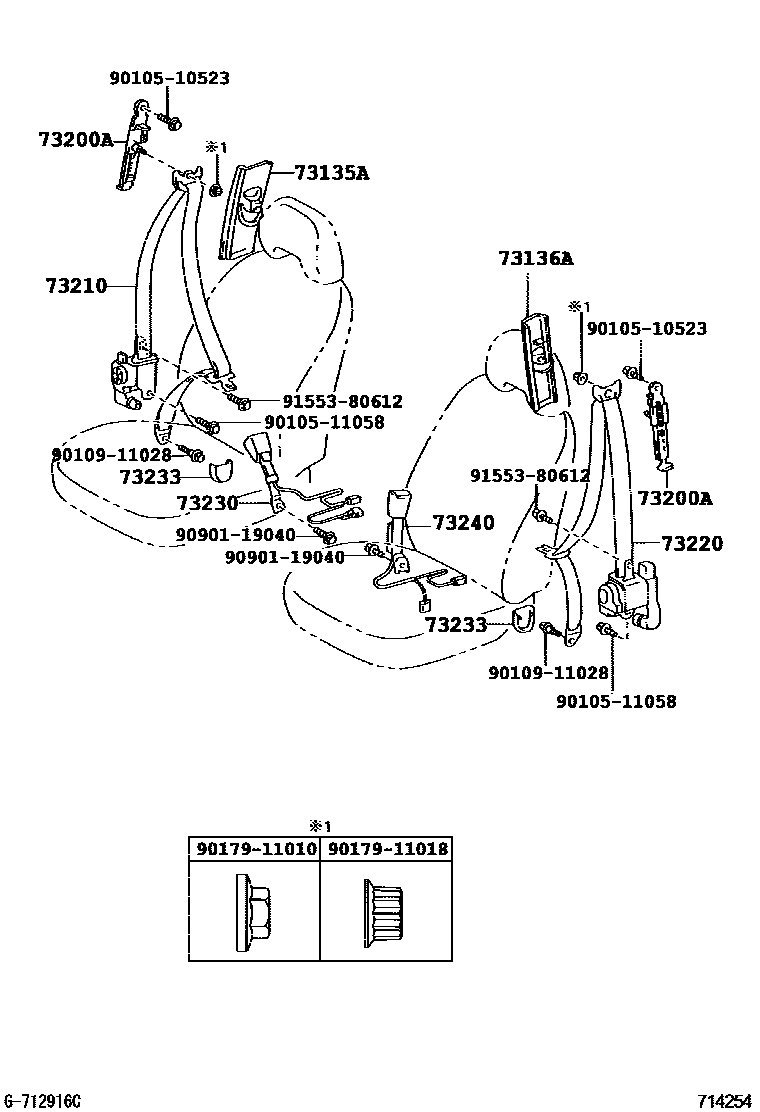

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73023-33010-B2iNHW20200511-200904

GRAY,TRIM1#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73024-33010-B2iNHW20200511-200904

GRAY,TRIM1#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-51020×2iNHW20200511

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47081-B0iNHW20200511-200904

GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47071-B0iNHW20200511-200904

GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73240-47041-B0iNHW20200511-200904

MD.GRAY,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-P2×2iNHW20200511-200904

MD.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-47051-B0iNHW20200511-200904

MD.GRAY,TRIM1#

9010510523

main90105-10523

9010511058

main90105-11058

9010911028

main90109-11028

9017911010

main90179-11010

9017911018

main90179-11018

9090119040

main90901-19040

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
