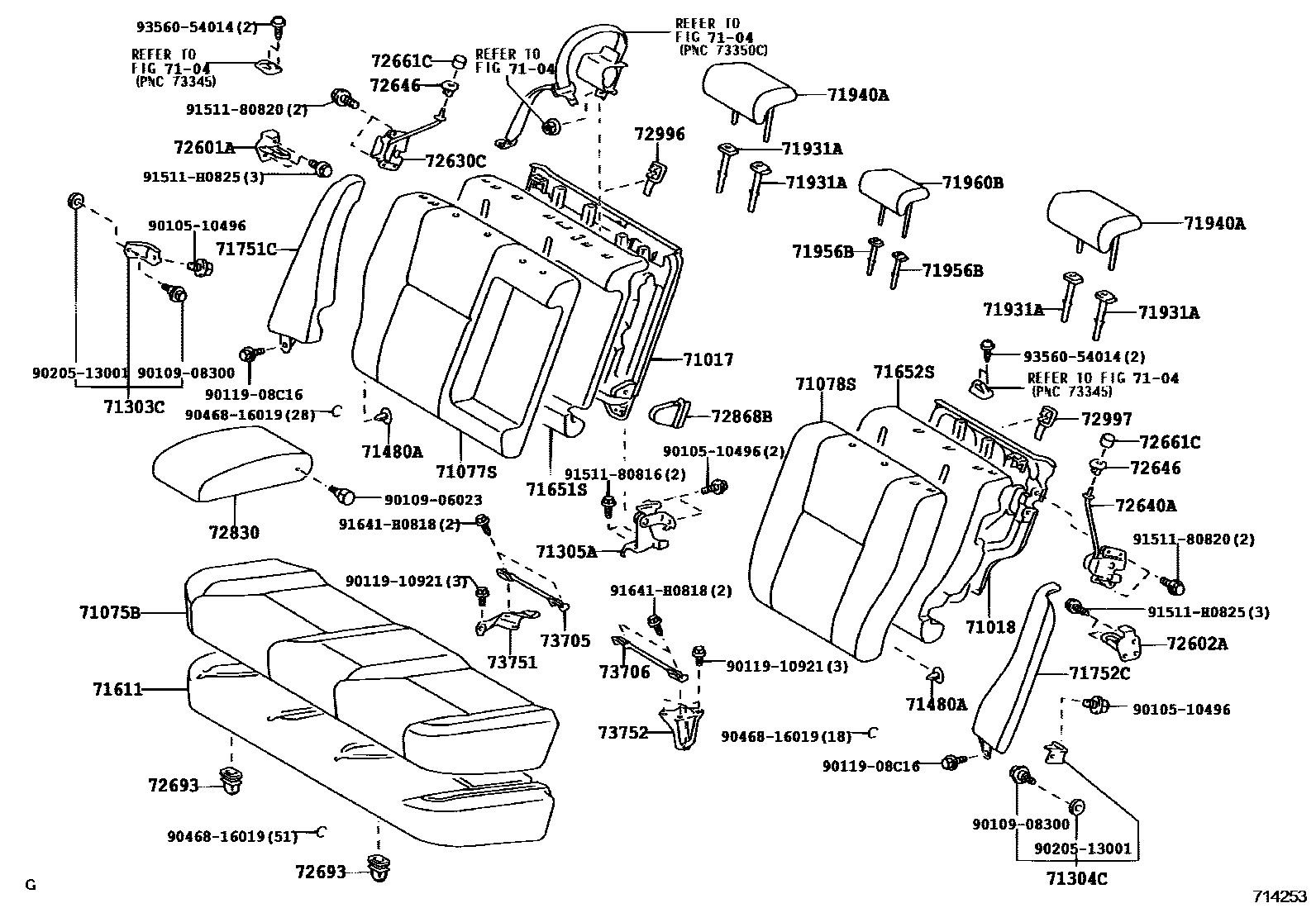

REAR SEAT & SEAT TRACK

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-47070iNHW20200511

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-47040iNHW20200511

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-47110-B3supersedes 71075-47100-B1iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-47180-B3supersedes 71077-47220-B0iNHW20200511-200610

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

main71077-47230-B0supersedes 71077-47220-B0iNHW20200611-200904

SEAT COVER MATERIAL-LEATHER,MEDIUM GRAY,TRIM1#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-47110-B3supersedes 71078-47140-B0iNHW20200511-200610

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

main71078-47150-B0supersedes 71078-47140-B0iNHW20200611-200904

SEAT COVER MATERIAL-LEATHER,MEDIUM GRAY,TRIM1#

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-47010iNHW20200511

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-47010iNHW20200511

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47020iNHW20200511

71480ACLIP (FOR REAR SEATBACK)

main90467-11021×18iNHW20200511

71611PAD, REAR SEAT CUSHION

main71503-47040iNHW20200511

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-47040iNHW20200511

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-47040iNHW20200511

71751CFRAME, REAR SIDE SEATBACK, RH

main71751-47040-B1supersedes 71751-47021-B2iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71752CFRAME, REAR SIDE SEATBACK, LH

main71752-47040-B1supersedes 71752-47021-B2iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71931ASUPPORT, REAR SEAT HEADREST

main71930-42020-B6×2iNHW20200511-200706

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#

main71930-52030-B7×2iNHW20200707-200904

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#

main71931-42020-B6×2iNHW20200511-200904

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

71940AHEADREST ASSY, REAR SEAT

main71940-47100-B3×2supersedes 71940-47090-B1iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71956BSUPPORT, REAR SEAT HEADREST

main71956-47010-B8iNHW20200511-200904

W/O(LOCK),MD.GRAY,TRIM1#

main71970-47010-B7iNHW20200511-200904

W(LOCK),MD.GRAY,TRIM1#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-47050-B3supersedes 71960-47040-B0iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

72601ASTRIKER SUB-ASSY, REAR SEATBACK LOOK, RH

main72601-47020iNHW20200511

72602ASTRIKER SUB-ASSY, REAR SEATBACK LOCK, LH

main72602-47010iNHW20200511

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47020iNHW20200511

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47020iNHW20200511

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-33020-B7×2iNHW20200511-200904

MD.GRAY,TRIM1#

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-13030-B7×2iNHW20200511-200904

MD.GRAY,TRIM1#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-12080×2iNHW20200511

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-47060-B3supersedes 72830-47050-B1iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

72868BCOVER, CENTER ARMREST HINGE

main72868-47010-B0iNHW20200511-200904

MD.GRAY,TRIM1#

72996COVER, REAR SEATBACK, RH

main72996-60110-B0iNHW20200511-200904

MD.GRAY,TRIM1#

72997COVER, REAR SEATBACK, LH

main72996-60110-B0iNHW20200511-200904

MD.GRAY,TRIM1#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-47030iNHW20200511

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-47030iNHW20200511

73751BRACKET, CRS ANCHOR, RH

main73751-47010iNHW20200511

73752BRACKET, CRS ANCHOR, LH

main73752-47010iNHW20200511

9010510496

main90105-10496

9010906023

main90109-06023

9010908300

main90109-08300

9011908C16

main90119-08C16

9011910921

main90119-10921

9020513001

main90205-13001

9046816019

main90468-16019

9151180816

main91511-80816

9151180820

main91511-80820

91511H0825

main91511-H0825

91641H0818

main91641-H0818

9356054014

main93560-54014

46 parts on this diagram · 1 diagram in section
