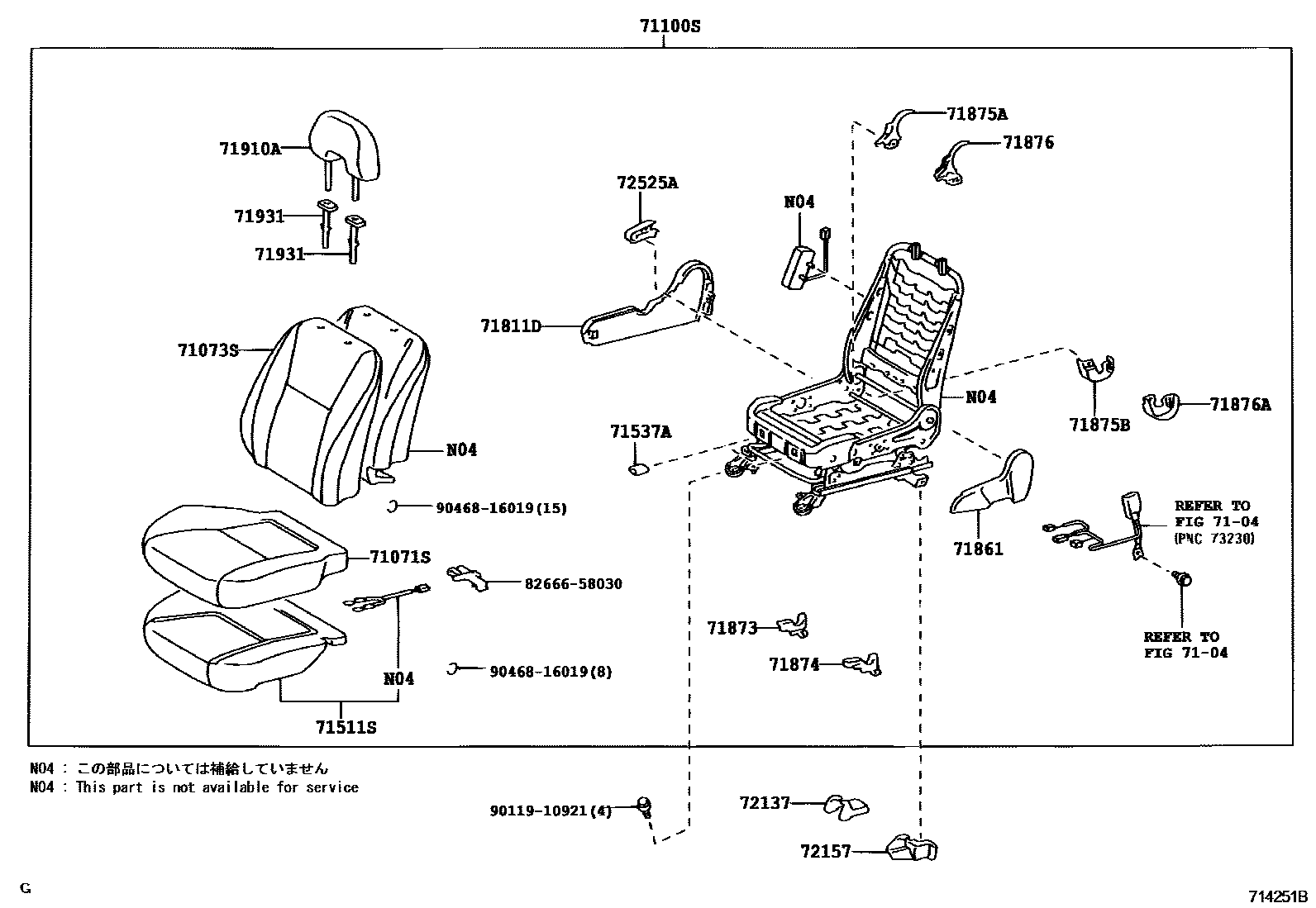

FRONT SEAT & SEAT TRACK

0001 1RH SEAT 0002 1LH SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-47200-B3supersedes 71071-47170-B1iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-47150-B2supersedes 71073-47240-B0iNHW20200511-200805

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

main71073-47250-B0supersedes 71073-47240-B0iNHW20200805-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71100SSEAT ASSY, FRONT RH

main71100-47390-B3supersedes 71100-47440-B0iNHW20200511-200610

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

main71100-47450-B0supersedes 71100-47440-B0iNHW20200611-200904

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-47040iNHW20200511

71537APROTECTOR, FRONT SEAT CUSHION

main71537-26010×4iNHW20200511

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52140-B1iNHW20200511-200904

MD.GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52100-B1iNHW20200511-200904

MD.GRAY,TRIM1#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-21010-B0iNHW20200511-200804

MD.GRAY,TRIM1#,RH SEAT

main71873-52040-B1iNHW20200805-200806

MD.GRAY,TRIM1#,RH SEAT

main71873-68010-B1iNHW20200806-200904

MD.GRAY,TRIM1#,RH SEAT

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-21010-B0iNHW20200511-200904

MD.GRAY,TRIM1#,RH SEAT

main71874-52050-B1iNHW20200805-200806

MD.GRAY,TRIM1#,LH SEAT

main71874-68010-B1iNHW20200806-200904

MD.GRAY,TRIM1#,LH SEAT

71875ACOVER, RECLINING ADJUSTER INSIDE, RH

main71875-52030-B2×2iNHW20200511-200904

MD.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-58060×2iNHW20200511-200904

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-52030-B2×2iNHW20200511-200904

MD.GRAY,TRIM1#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060×2iNHW20200511-200904

71910AHEADREST ASSY, FRONT SEAT

main71910-47090-B3×2supersedes 71910-47080-B1iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,MD.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-42020-B6×2iNHW20200511-200706

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#

main71930-52030-B7×2iNHW20200707-200904

W(LOCK)&W(BUTTON),MD.GRAY,TRIM1#

main71931-42020-B6×2iNHW20200511-200904

W(LOCK)&W/O(BUTTON),MD.GRAY,TRIM1#

72137COVER, SEAT TRACK, OUTER RH

main72137-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

72157COVER, SEAT TRACK BRACKET, INNER

main72157-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-58030-B2iNHW20200511-200904

MD.GRAY,TRIM1#

8266658030HOLDER, CONNECTOR

main82666-58030

9011910921

main90119-10921

9046816019

main90468-16019

22 parts on this diagram · 2 diagrams in section
