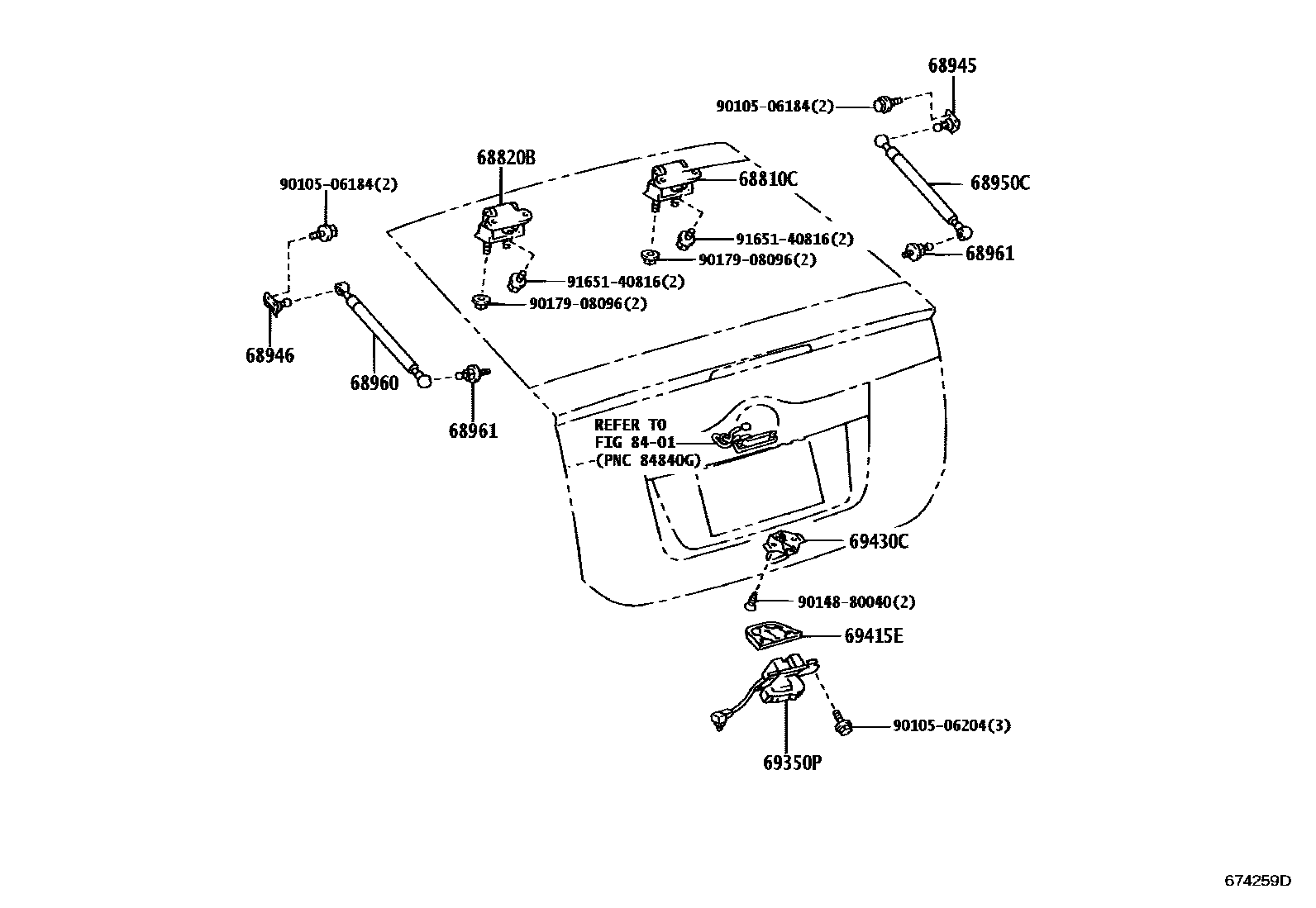

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-47010iNHW20200511-200904

68820BHINGE ASSY, BACK DOOR, LH

main68810-47010iNHW20200511

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-12030iNHW20200511

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-12030iNHW20200511

68950CSTAY ASSY, BACK DOOR, RH

main68950-0W430iNHW20200511-200707

main68950-0W431iNHW20200708

68960STAY ASSY, BACK DOOR, LH

main68960-0W430iNHW20200511-200707

main68960-0W431iNHW20200708

68961BOLT, BACK DOOR STAY

main68961-20140×2iNHW20200511

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-47010iNHW20200511-200904

69415ECOVER, BACK DOOR LOCK STRIKER

main69415-47010iNHW20200511

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-53010iNHW20200511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

9010506204

main90105-06204

9014880040

main90148-80040

9017908096

main90179-08096

9165140816

main91651-40816

16 parts on this diagram · 1 diagram in section
