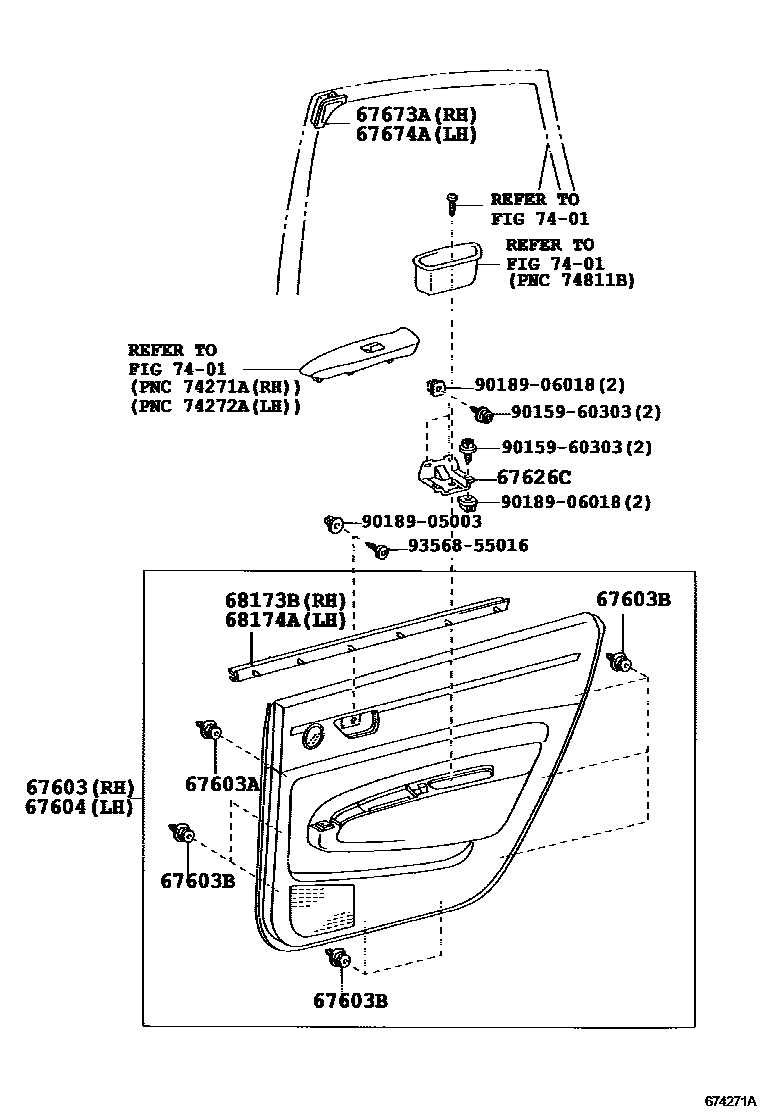

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-47210-C0supersedes 67630-47200-C0iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main67771-16080×2iNHW20200511

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-10161×14iNHW20200511

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-47210-C0supersedes 67640-47200-C0iNHW20200511-200904

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM1#

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-47010×2iNHW20200511

67673AGARNISH, REAR DOOR FRAME, RH

main67673-48010iNHW20200511

67674AGARNISH, REAR DOOR FRAME, LH

main67674-48010iNHW20200511

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-47030iNHW20200511-200904

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-47030iNHW20200511-200904

7401ARMREST & VISOR

→ Go to FIG 74-01

9015960303

main90159-60303

9018905003

main90189-05003

9018906018

main90189-06018

9356855016

main93568-55016

14 parts on this diagram · 2 diagrams in section
