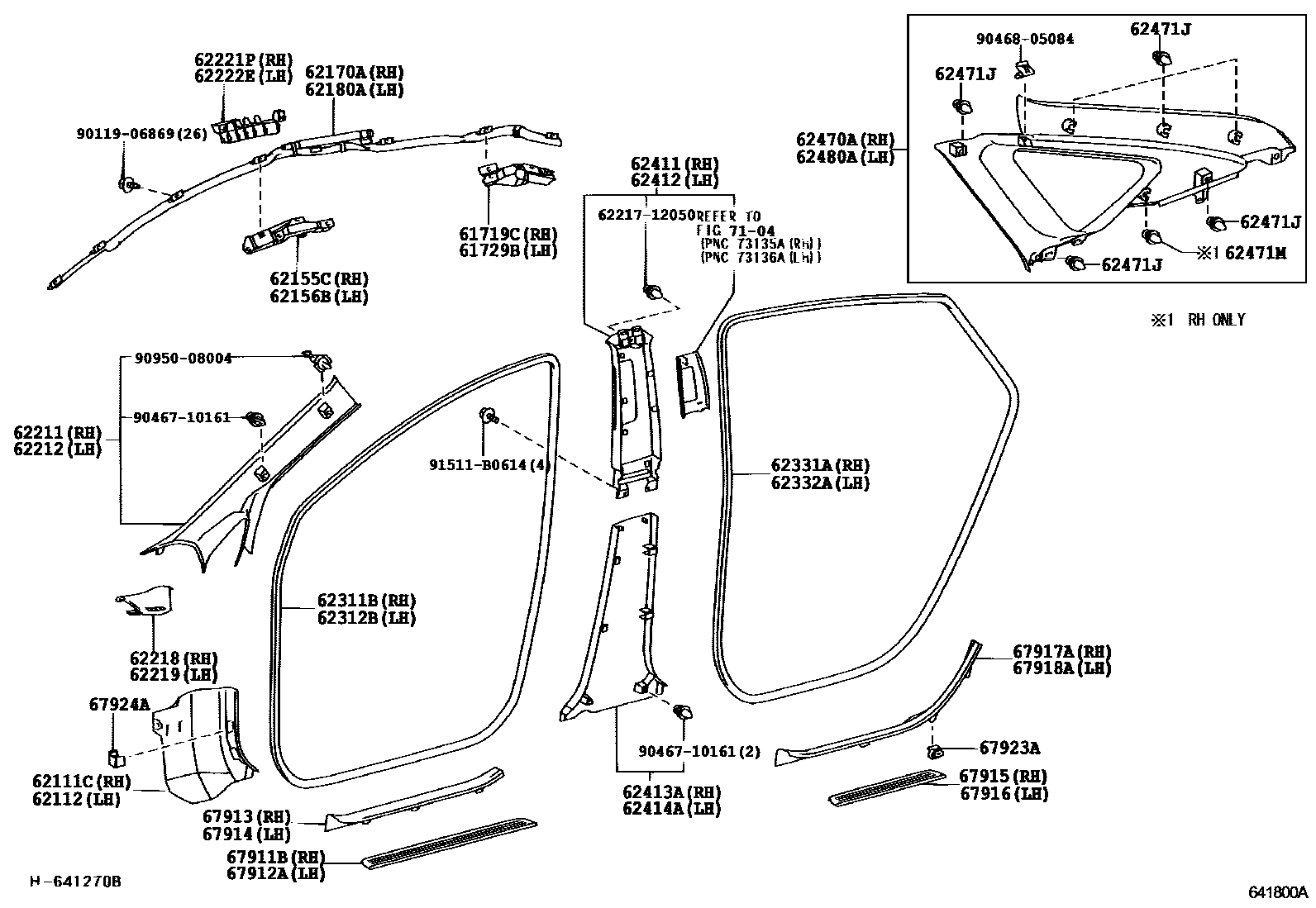

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-47020iNHW20200511

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-47010iNHW20200511

62111CBOARD, COWL SIDE TRIM, RH

main62111-47050-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-47070-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-47010iNHW20200511

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-47010iNHW20200511

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-47010iNHW20200511

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-47010iNHW20200511

62211GARNISH, FRONT PILLAR, RH

main62210-47060-B0iNHW20200511-200904

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62220-47060-B0iNHW20200511-200904

LT.GRAY,TRIM1#

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-47030-B0iNHW20200511-200904

LT.GRAY,TRIM1#

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-47030-B0iNHW20200511-200904

LT.GRAY,TRIM1#

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-47040iNHW20200511

62222ESPACER, FRONT PILLAR, NO.1 LH

main62222-47030iNHW20200511

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-47020-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-47020-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-47020-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-47020-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62411GARNISH, CENTER PILLAR, RH

main62410-47050-B0iNHW20200511-200802

LT.GRAY,TRIM1#

main62410-47050-B1iNHW20200802-200904

GRAY,TRIM1#

62412GARNISH, CENTER PILLAR, LH

main62420-47050-B0iNHW20200511-200802

LT.GRAY,TRIM1#

main62420-47050-B1iNHW20200802-200904

GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-47060-B0iNHW20200511-200904

GRAY,TRIM1#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×12iNHW20200511

62471MCLIP

main62217-13010iNHW20200511

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-47040-B0iNHW20200511-200904

GRAY,TRIM1#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-47020iNHW20200511

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-47020iNHW20200511

67913PLATE, FRONT DOOR SCUFF, RH

main67913-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-47020iNHW20200511

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67915-47020iNHW20200511

67917APLATE, REAR DOOR SCUFF, RH

main67917-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-47030-B0iNHW20200511-200904

MD.GRAY,TRIM1#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-20090×4iNHW20200511

GOLD

main67923-47030×2iNHW20200511

WHITE

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-46010×4iNHW20200511

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6221712050COVER, RAIL ROOF SIDE, INNER CENTER

main62217-12050

9011906869

main90119-06869

9046710161

main90467-10161

9046805084

main90468-05084

9095008004

main90950-08004

91511B0614

main91511-B0614

43 parts on this diagram · 1 diagram in section
