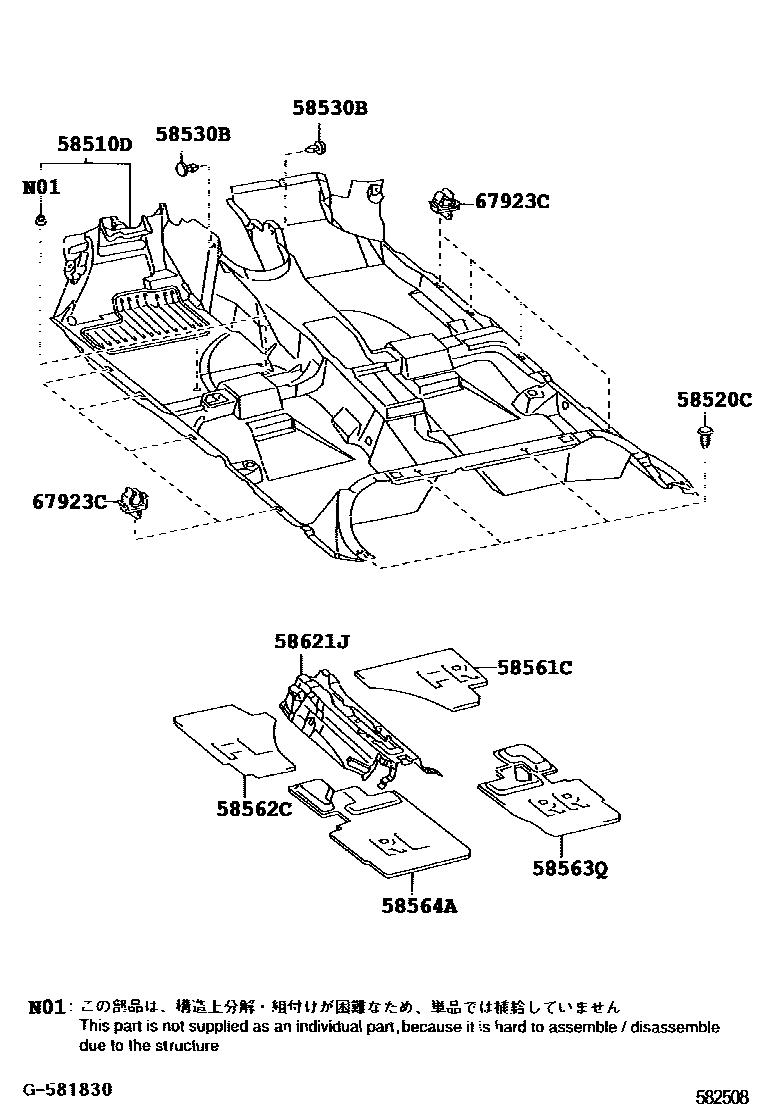

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-47200-B0iNHW20200511-200904

MD.GRAY,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×4iNHW20200511-200904

DK.GRAY,TRIM1#

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09110-B3×2iNHW20200511-200904

DK.GRAY,TRIM1#

58561CSILENCER, FRONT FLOOR, NO.1

main58561-47030iNHW20200511

58562CSILENCER, FRONT FLOOR, NO.2

main58562-47030iNHW20200511

58563QSILENCER, FRONT FLOOR, NO.3

main58563-47020iNHW20200511

58564ASILENCER, FRONT FLOOR, NO.4

main58564-47020iNHW20200511

58621JSILENCER, CENTER CONSOLE, NO.1

main58621-47010iNHW20200511

67923CCLAMP, DOOR SCUFF PLATE, NO.1

main67923-20080×8iNHW20200511

9 parts on this diagram · 1 diagram in section
