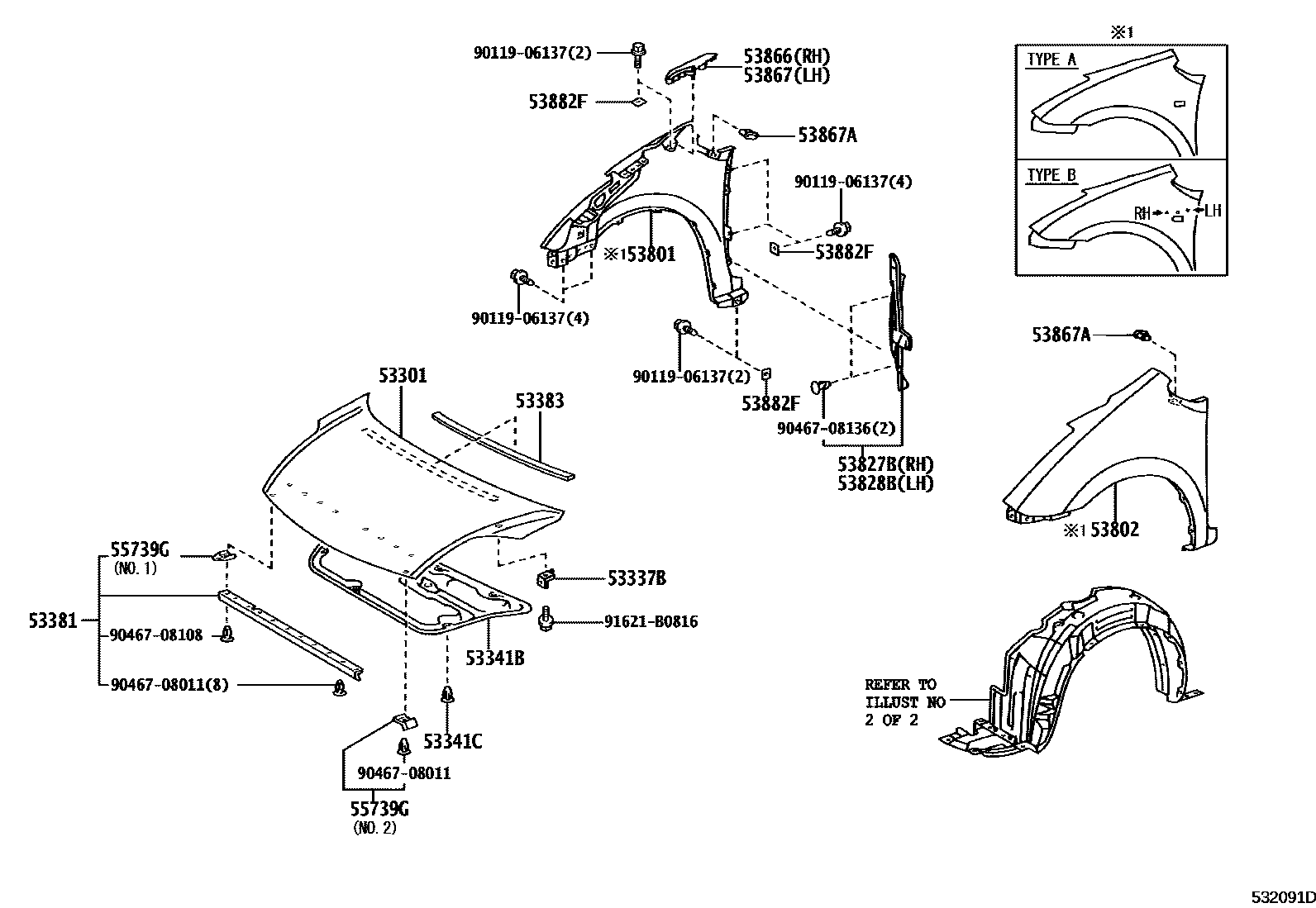

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-47030iNHW20200511-200904

53337BBRACKET, HOOD STAY

main53337-47010iNHW20200511

53341BINSULATOR, HOOD

main53341-47010iNHW20200511

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNHW20200511

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-47020iNHW20200511

53383SEAL, HOOD TO COWL TOP

main53383-47050iNHW20200511-200611

53801FENDER SUB-ASSY, FRONT RH

main53801-47010iNHW20200511-200612

TYPE A

main53801-47011iNHW20200612-200904

TYPE B

53802FENDER SUB-ASSY, FRONT LH

main53802-47010iNHW20200511-200612

TYPE A

main53802-47011iNHW20200612-200904

TYPE B

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-47010iNHW20200511-200704

main53827-47020iNHW20200705

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47010iNHW20200511-200704

main53828-47020iNHW20200705

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-47010iNHW20200511

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-47010iNHW20200511

53867ARETAINER, FRONT FENDER

main53867-47020iNHW20200511

53882FSEAL, FRONT FENDER

main53882-16030iNHW20200511

55739GSTOPPER, HOOD

main55739-47020iNHW20200511

NO.2

main55739-47030iNHW20200511

NO.1

9011906137

main90119-06137

9046708011

main90467-08011

9046708108

main90467-08108

9046708136

main90467-08136

91621B0816

main91621-B0816

20 parts on this diagram · 2 diagrams in section
