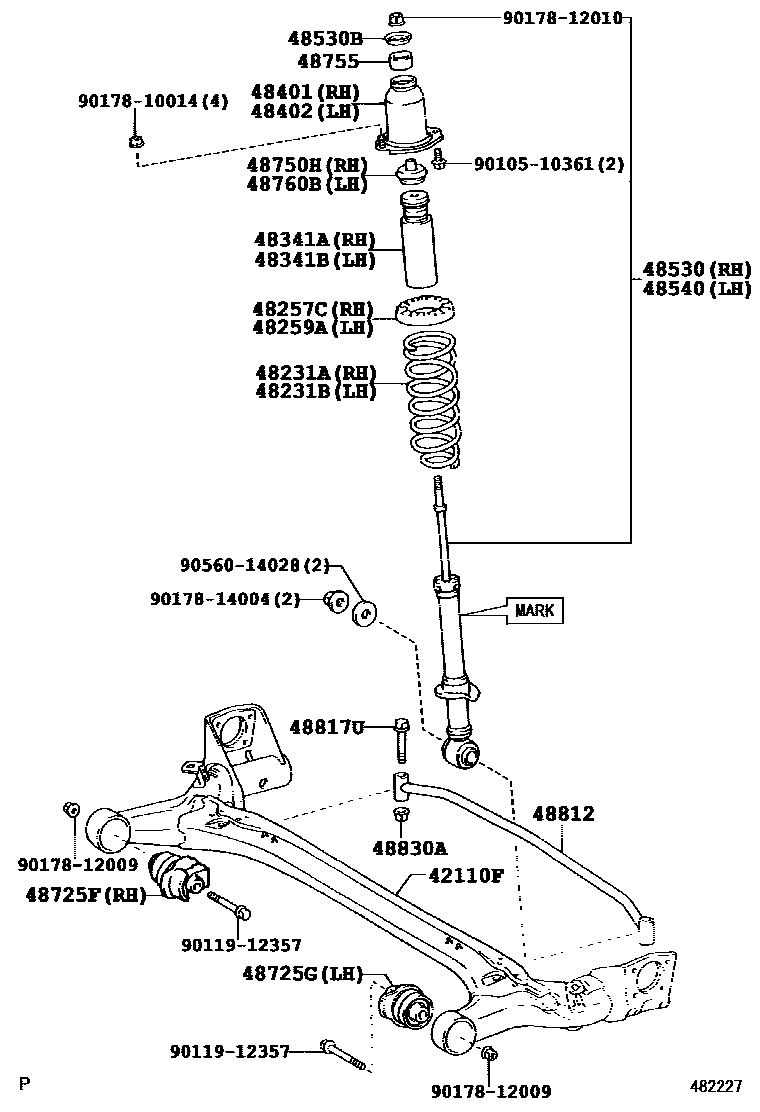

REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-47061
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-47061
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48812BAR, STABILIZER, REAR
48817UBOLT(FOR REAR STABILIZER)
48830ANUT(FOR REAR STABILIZER LINK)
9010510361
main90105-10361
9011912357
main90119-12357
9017810014
main90178-10014
9017812009
main90178-12009
9017814004
main90178-14004
9056014028
main90560-14028
26 parts on this diagram · 1 diagram in section
