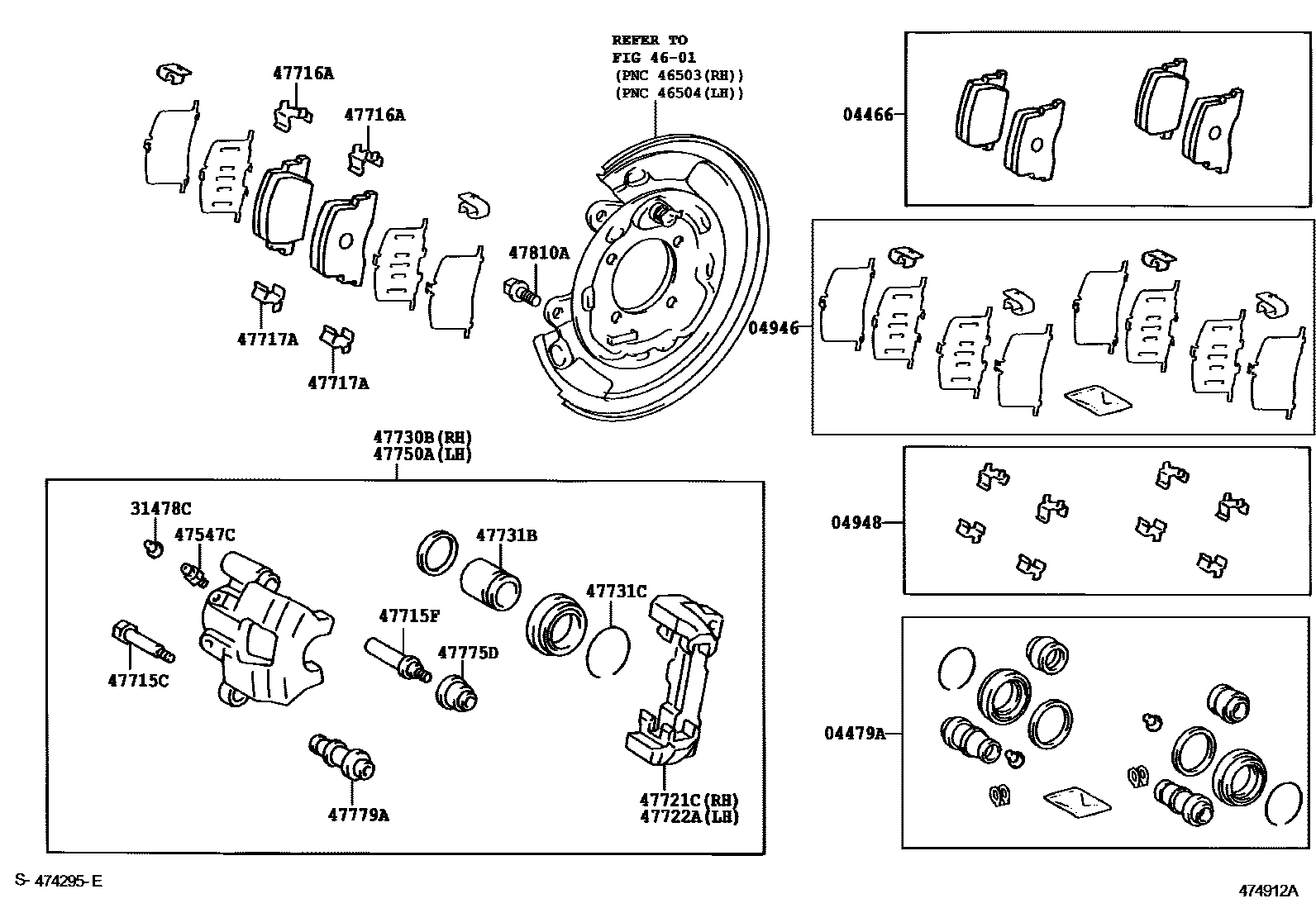

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47010iNHW20200511-200904

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-33110iNHW20200511-200904

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47010iNHW20200511-200904

04948FITTING KIT, DISC BRAKE, REAR

main04948-32040iNHW20200511-200904

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iNHW20200511-200904

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iNHW20200511

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-32020×2iNHW20200511-200904

47715FPIN, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47715-32030×2iNHW20200511-200904

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32060×4iNHW20200511

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32060×4iNHW20200511

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-32150iNHW20200511-200904

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-32150iNHW20200511-200904

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-21030iNHW20200511

47731BPISTON, REAR DISC BRAKE

main47731-33040×2iNHW20200511

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43003×2iNHW20200511

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-21030iNHW20200511

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050×2iNHW20200511-200904

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32030×2iNHW20200511

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379×4iNHW20200511

20 parts on this diagram · 1 diagram in section
