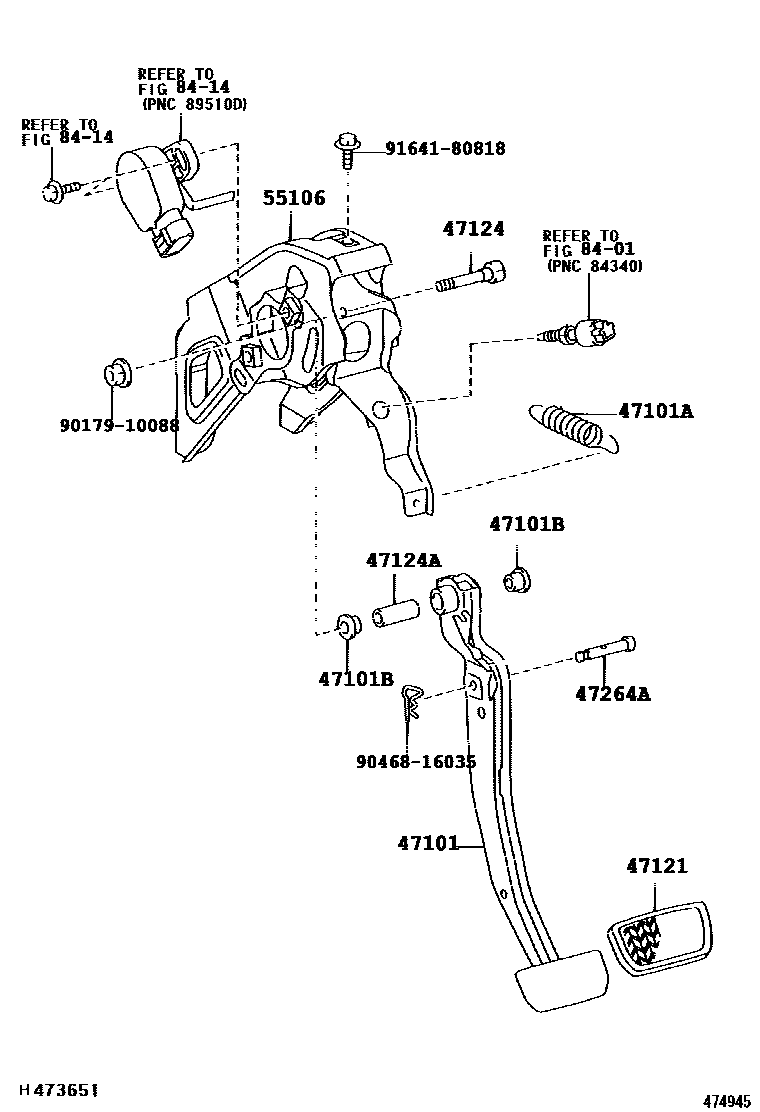

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-47050iNHW20200511

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-16027iNHW20200511

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iNHW20200511

47121PAD, BRAKE PEDAL

main47121-52010iNHW20200511

47124SHAFT, BRAKE PEDAL

main90101-10015iNHW20200511

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNHW20200511

47264APIN(FOR PUSH ROD)

main47148-47020iNHW20200511

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-47050iNHW20200511-200904

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9017910088

main90179-10088

9046816035

main90468-16035

9164180818

main91641-80818

13 parts on this diagram · 1 diagram in section
