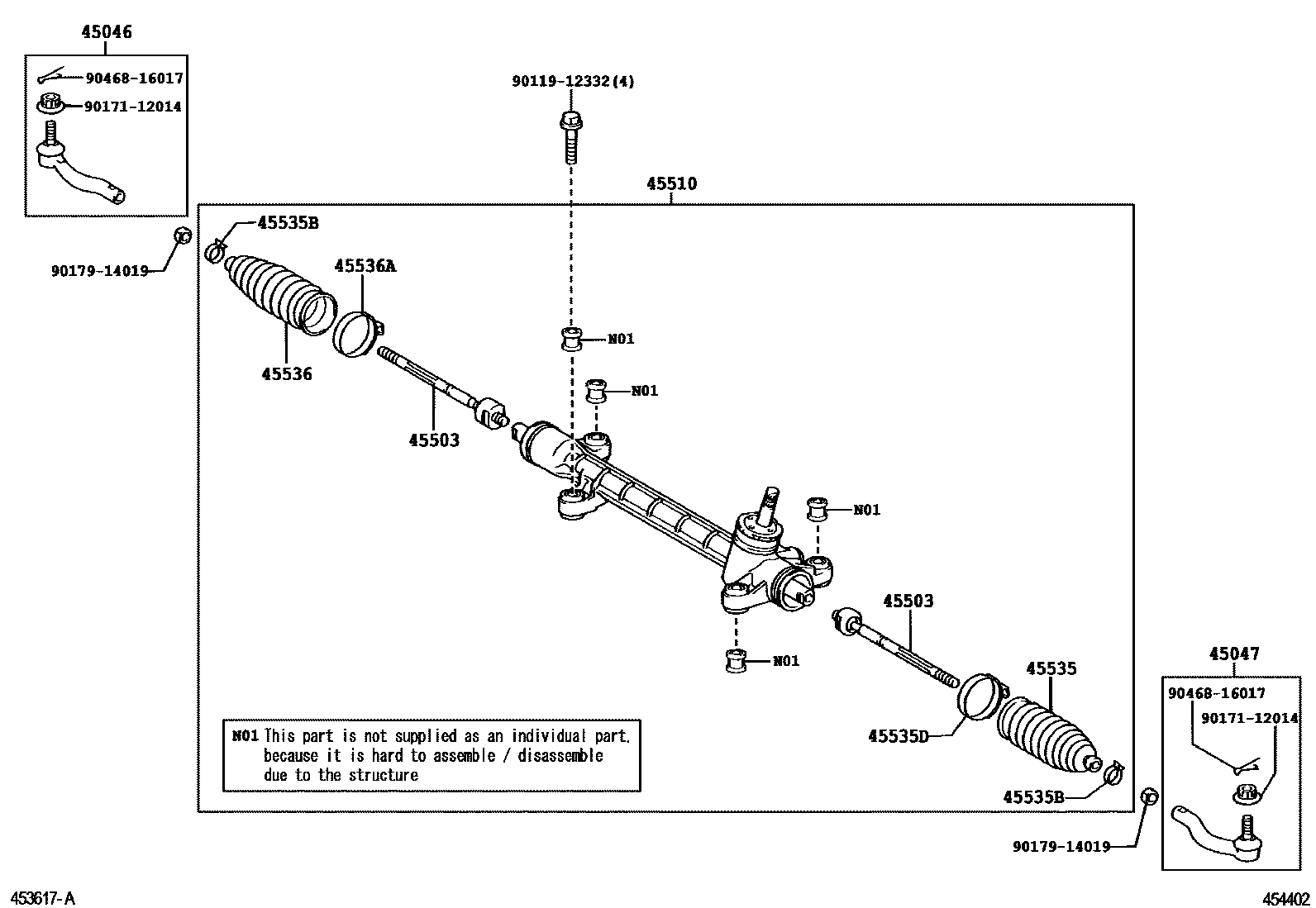

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49145iNHW20200511

45047END SUB-ASSY, TIE ROD, LH

main45047-49075iNHW20200511

45503END SUB-ASSY, STEERING RACK

main45503-47030×2iNHW20200511

45510GEAR ASSY, STEERING

main45510-47030iNHW20200511

45535BOOT, STEERING RACK, NO.1

main45535-52060iNHW20200511

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iNHW20200511

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-58008iNHW20200511

45536BOOT, STEERING RACK, NO.2

main45535-52060iNHW20200511

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-58008iNHW20200511

9011912332

main90119-12332

9017112014

main90171-12014

9017914019

main90179-14019

9046816017

main90468-16017

13 parts on this diagram · 1 diagram in section
