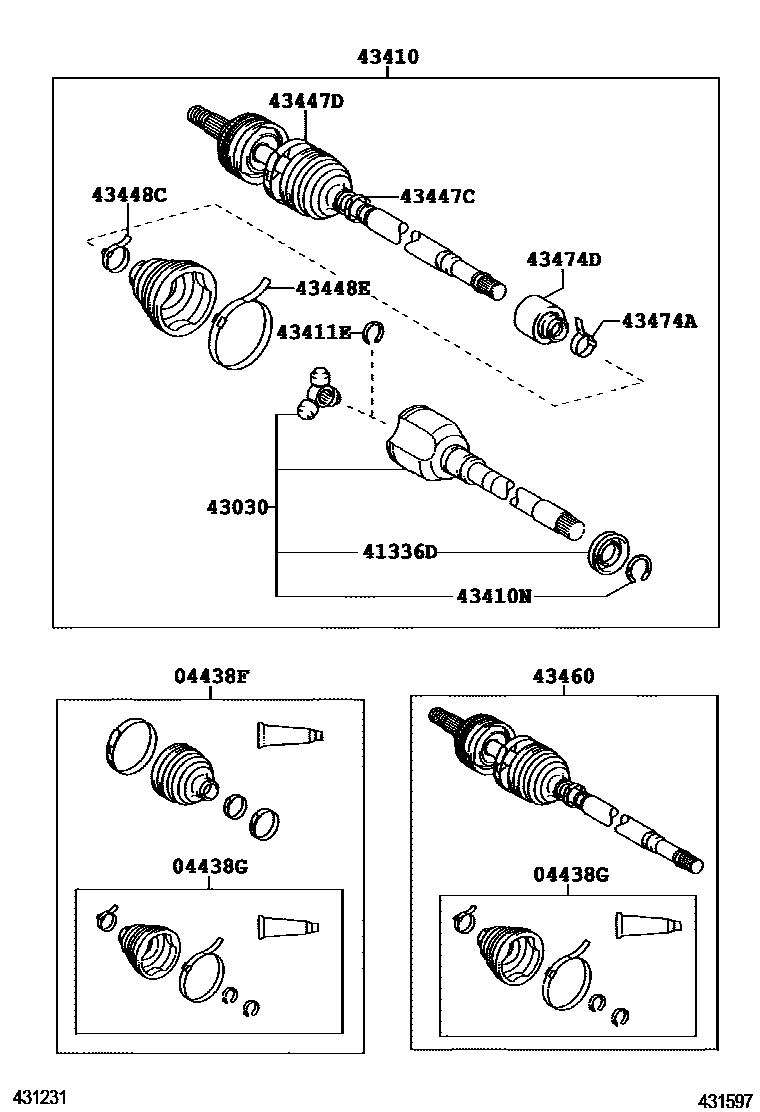

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-47020iNHW20200511-200603

main04427-47030iNHW20200604

sub04427-47031

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47020iNHW20200511

sub04437-47021

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iNHW20200511

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47020iNHW20200511

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47020iNHW20200511-200904

sub43410-47021

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-27005iNHW20200511

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22001iNHW20200511

sub90520-22029

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52110iNHW20200511

sub42345-52260

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-52100iNHW20200511

sub42345-52250

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01078iNHW20200511

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01146iNHW20200511

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49385iNHW20200511

sub43460-49386

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-14010iNHW20200511

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-52030iNHW20200511

14 parts on this diagram · 2 diagrams in section
