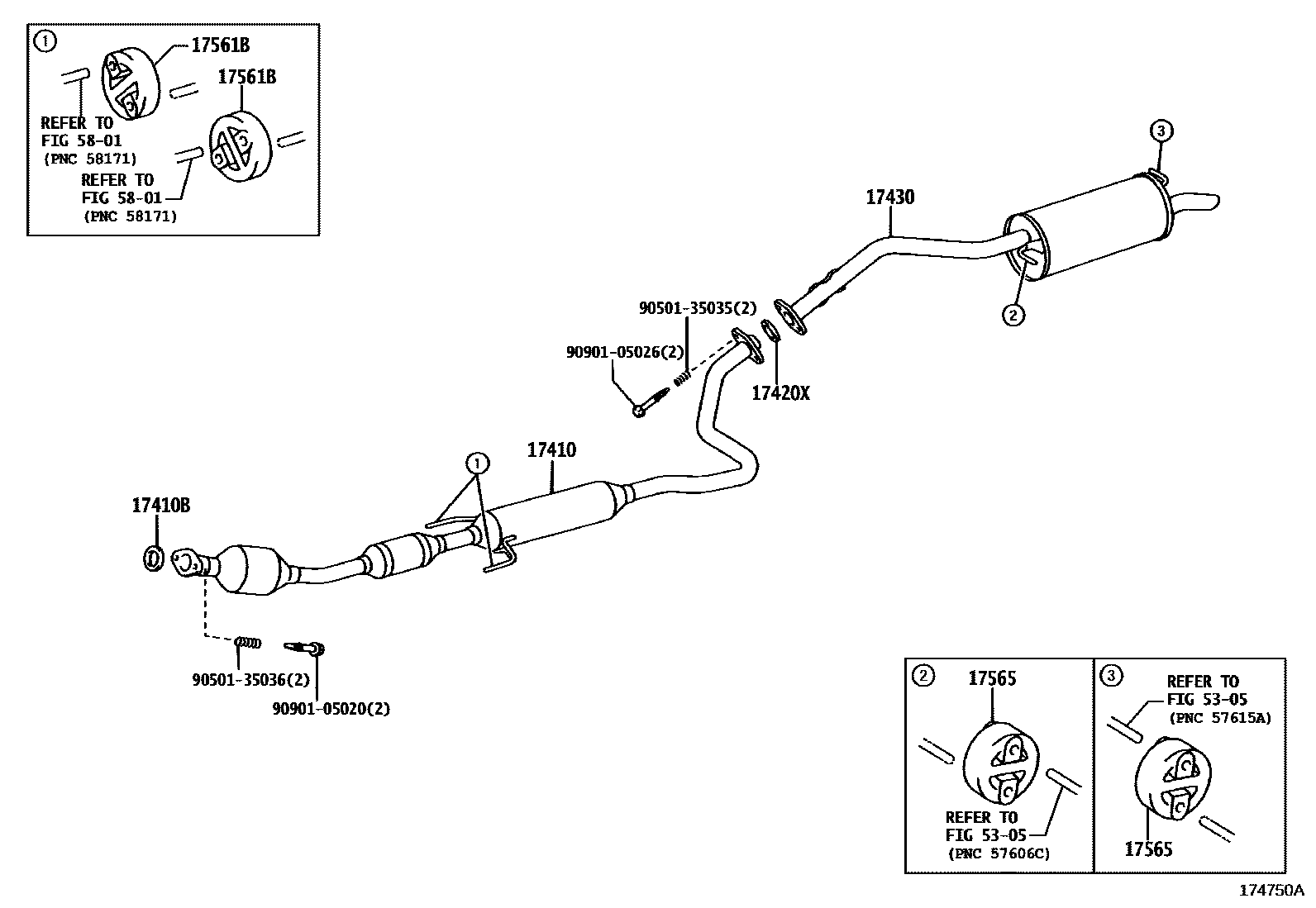

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-21490i1NZFXE..NHW20200511-200707

*114=TOYOTA/GD3EA6/Y

main17410-21A10i1NZFXE..NHW20200707

17410BGASKET, EXHAUST PIPE

main17451-21060i1NZFXE..NHW20200511

17420XGASKET, EXHAUST PIPE, CENTER

main17451-23010i1NZFXE..NHW20200511

17430PIPE ASSY, EXHAUST, TAIL

main17430-21580i1NZFXE..NHW20200511-200707

main17430-21770i1NZFXE..NHW20200707

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-0D070×2i1NZFXE..NHW20200701

main17565-22030×2i1NZFXE..NHW20200511-200612

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D080×2i1NZFXE..NHW20200701

main17565-28010×2i1NZFXE..NHW20200511-200612

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

12 parts on this diagram · 1 diagram in section
