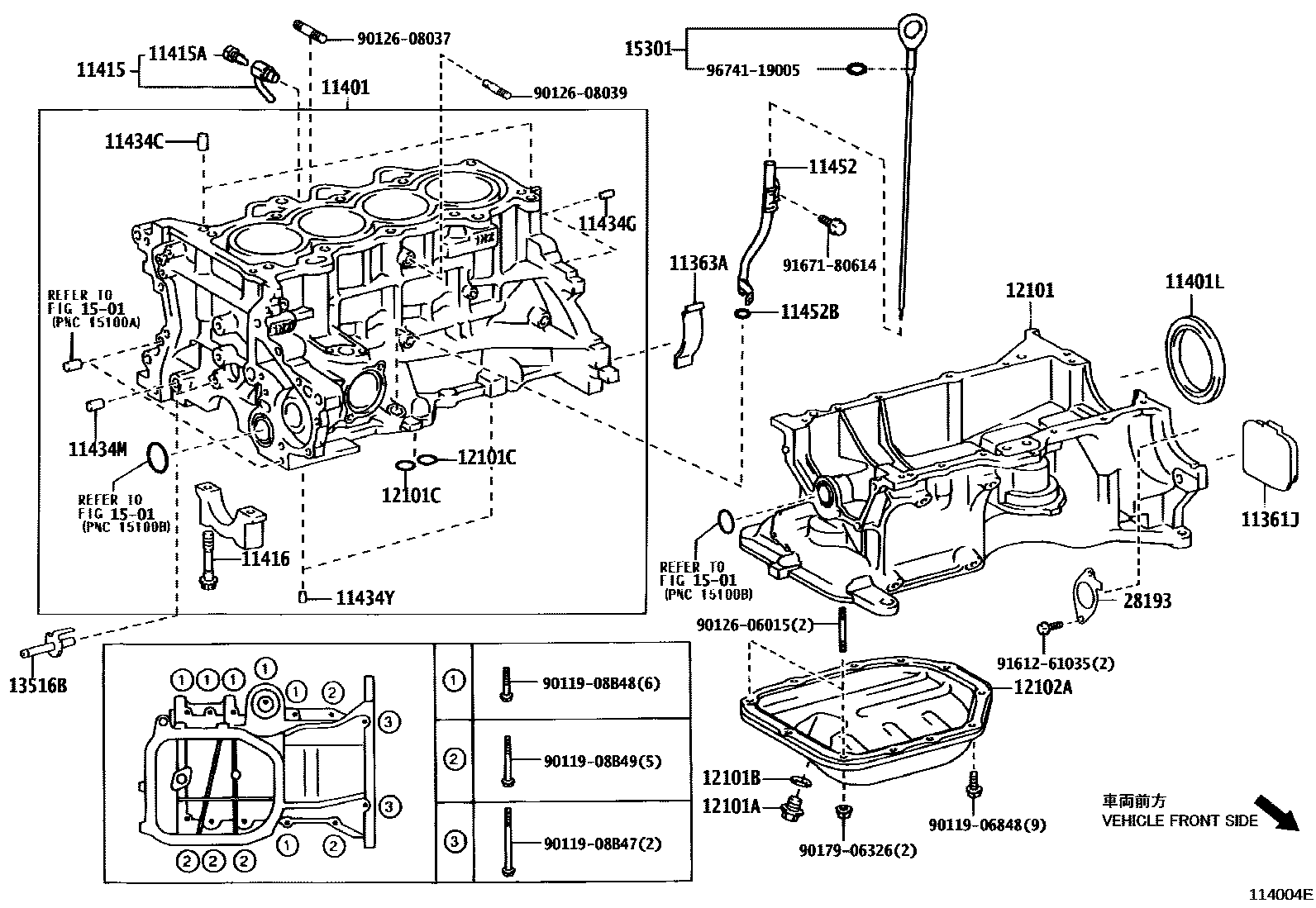

CYLINDER BLOCK

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-21011i1NZFXE..NHW20200511

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-21010i1NZFXE..NHW20200511

11401BLOCK SUB-ASSY, CYLINDER

main11401-29855i1NZFXE..NHW20200511-200812

main11401-29856i1NZFXE..NHW20200812

11401LSEAL, ENGINE REAR OIL

main90311-75016i1NZFXE..NHW20200511

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09107i1NZFXE..NHW20200511

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1NZFXE..NHW20200511

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02125×10i1NZFXE..NHW20200511

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×2i1NZFXE..NHW20200511

L=18,OD=8

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i1NZFXE..NHW20200511

11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)

main90250-10030i1NZFXE..NHW20200511

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120×2i1NZFXE..NHW20200511

11452GUIDE, OIL LEVEL GAGE

main11452-21021i1NZFXE..NHW20200511

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1NZFXE..NHW20200511

12101PAN SUB-ASSY, OIL

main12111-21051i1NZFXE..NHW20200511-200904

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1NZFXE..NHW20200511

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NZFXE..NHW20200511

12101CRING, O(FOR OIL PAN)

main96722-24020×2i1NZFXE..NHW20200511

12102APAN SUB-ASSY, OIL, NO.2

main12102-21010i1NZFXE..NHW20200511

13516BJET, OIL

main13516-21010i1NZFXE..NHW20200511

1501ENGINE OIL PUMP

→ Go to FIG 15-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-21020i1NZFXE..NHW20200511

28193INSULATOR, STARTER HOLE

main28193-21010i1NZFXE..NHW20200511

9011906848

main90119-06848

9011908B47

main90119-08B47

9011908B48

main90119-08B48

9011908B49

main90119-08B49

9012606015

main90126-06015

9012608037

main90126-08037

9012608039

main90126-08039

9017906326

main90179-06326

9161261035

main91612-61035

9167180614

main91671-80614

9674119005

main96741-19005

33 parts on this diagram · 1 diagram in section
