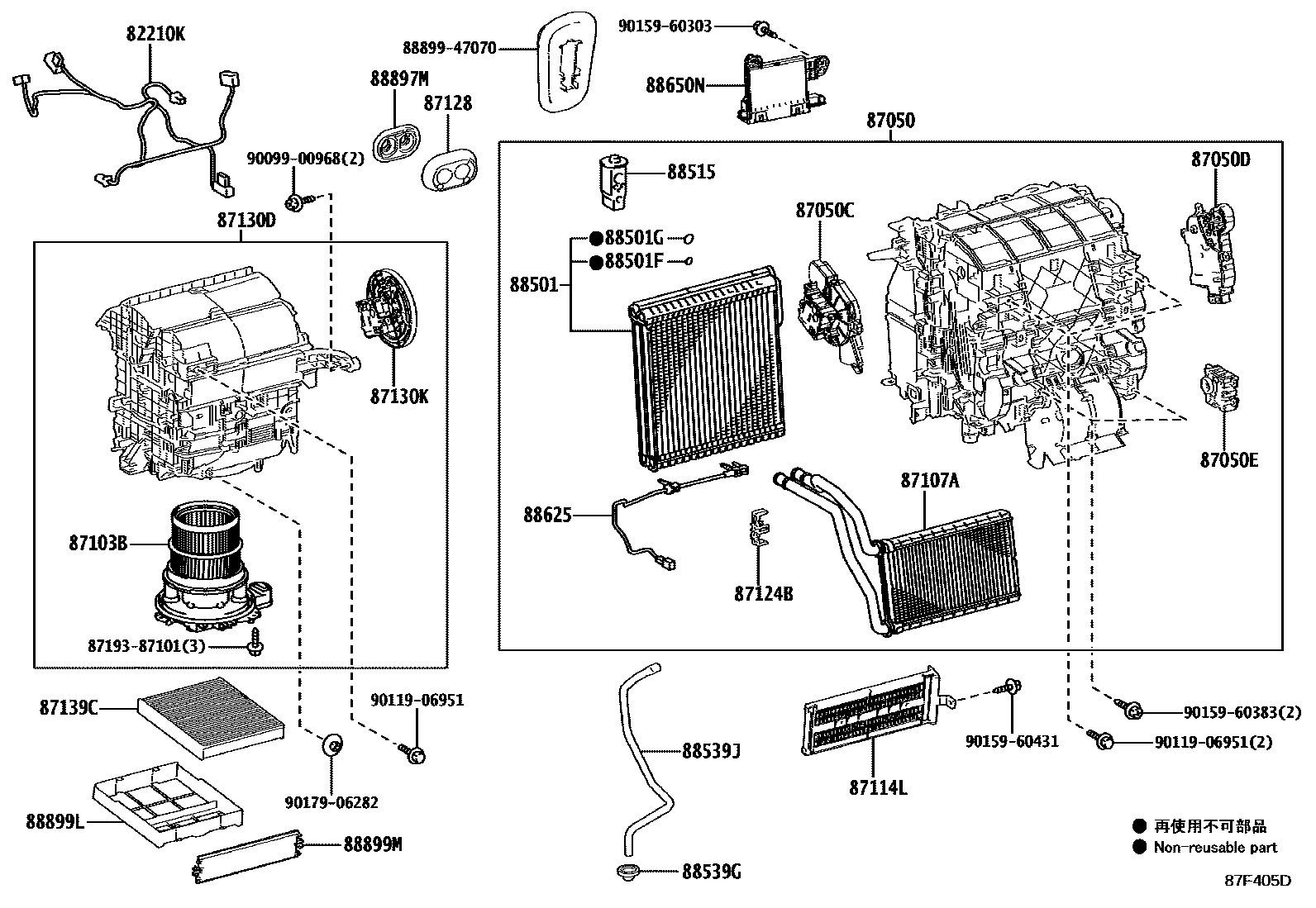

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-47020iZVW50..ARL201511-201812

main82212-47030iZVW50..GCC201511-201812

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47300iZVW50..ARL201511-201812

main87050-47330iZVW50..GCC201511-201812

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-28230iZVW50..ARL201511-201812

main87106-48240iZVW50..GCC201511-201812

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-47180iZVW50201511-201812

87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3

main87106-47190iZVW50..ARL201511-201812

main87106-47200iZVW50..GCC201511-201812

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-42130iZVW50202007

main87103-58070iZVW50..ARL201812-202007

main87103-58080iZVW50..GCC201511-201812

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-47070iZVW50..ARL201812

main87107-47080iZVW50..GCC201812-202006

87114LCOVER, HEATER, NO.2

main87114-47020iZVW50201511-201812

87124BCLAMP, HEATER

main87124-33070iZVW50201511-201812

87128GROMMET, HEATER

main87128-28020iZVW50201511-201812

87130DBLOWER ASSY

main87130-42480iZVW50202007

main87130-47290iZVW50..GCC201706-201812

main87130-47300iZVW50..ARL201812-202007

main87130-58091iZVW50..ARL201511-201705

main87130-58101iZVW50..GCC201511-201705

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iZVW50..ARL201511-201812

main87106-58050iZVW50..GCC201511-201812

87139CFILTER, CLEAN AIR

main87139-28020iZVW50201511-201812

POLLEN FILTER,OE PART

main87139-58010iZVW50201511-201812

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47090iZVW50201511-201812

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iZVW50201511-201812

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iZVW50201511-201812

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-30800iZVW50201812

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iZVW50..GCC201812-202006

88539JHOSE, DRAIN COOLER

main88539-47050iZVW50..ARL201812

main88539-47060iZVW50..GCC201511-201812

88625THERMISTOR, COOLER, NO.1

main88620-28060iZVW50201511-201812

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-47350iZVW50201608-201701

main88650-47351iZVW50201702-201710

main88650-47490iZVW50201511-201607

main88650-47520iZVW50201711-201812

main88650-47580iZVW50201812-202007

main88650-47670iZVW50202007-202106

main88650-47770iZVW50202106

main88650-47360iZVW50..ARL201608-201701

SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION)

main88650-47361iZVW50..ARL201702-201710

SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION)

main88650-47510iZVW50..ARL201511-201607

SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION)

main88650-47530iZVW50..ARL201711-201812

SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION)

88897MGROMMET (FOR HEATER PIPE)

main87128-28010iZVW50..GCC201812-202006

88899LPARTS, COOLING UNIT

main88899-47090iZVW50201511-201812

88899MPLATE, COVER(FOR AIR FILTER)

main88899-28620iZVW50201511-201706

main88899-47120iZVW50201707-201812

8719387101

main87193-87101

8889947070COVER, EVAPORATOR

main88899-47070

9009900968

main90099-00968

9011906951

main90119-06951

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

32 parts on this diagram · 2 diagrams in section
