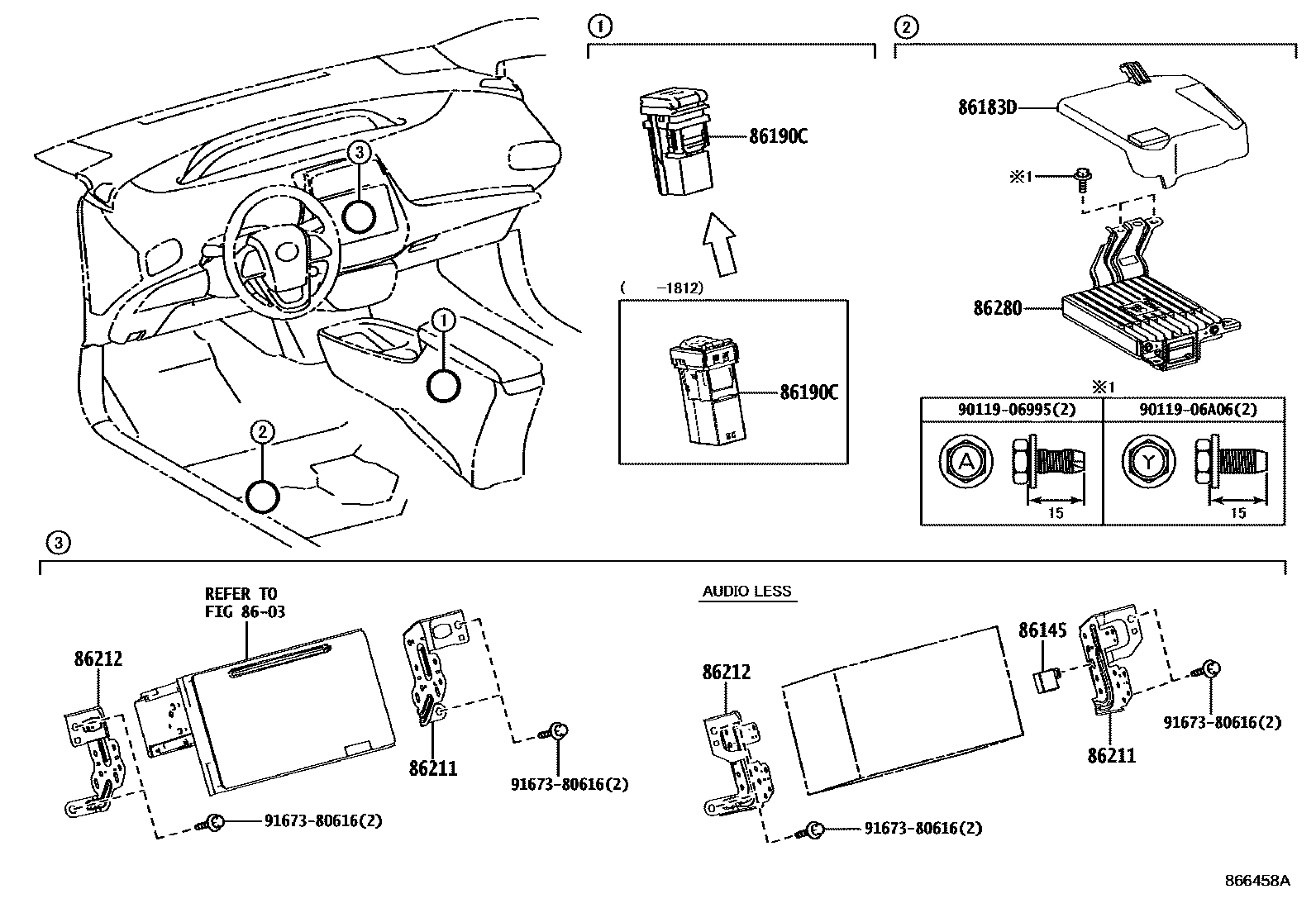

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86145CONNECTOR, ANTENNA MALE

main86145-52010iZVW50..GCC201608-201812

DECONTENT PACKAGE

86183DCOVER, AUDIO AMPLIFIER

main86183-12020iZVW50201812

main86183-47120iZVW50; ZVW50..GCC201511-201812

DECONTENT PACKAGE

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12040supersedes 86190-48080iZVW50201812-202007

main86190-42030iZVW50202007-202008

main86190-42031iZVW50202009

main86190-42040iZVW50..ARL201511-201812

main86190-48080iZVW50..GCC201511-201812

DECONTENT PACKAGE

86211BRACKET, RADIO, NO.1

main86211-47130iZVW50201511-201812

main86211-47140iZVW50..GCC201608-201812

DECONTENT PACKAGE

86212BRACKET, RADIO, NO.2

main86212-47130iZVW50201511-201812

main86212-47140iZVW50..GCC201812-202006

DECONTENT PACKAGE

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-47050iZVW50; ZVW50..GCC201511-201710

DECONTENT PACKAGE

main86280-47051iZVW50; ZVW50..GCC201711-201812

DECONTENT PACKAGE

main86280-47100iZVW50201812

9011906995

main90119-06995

9011906A06

main90119-06A06

9167380616

main91673-80616

10 parts on this diagram · 3 diagrams in section
