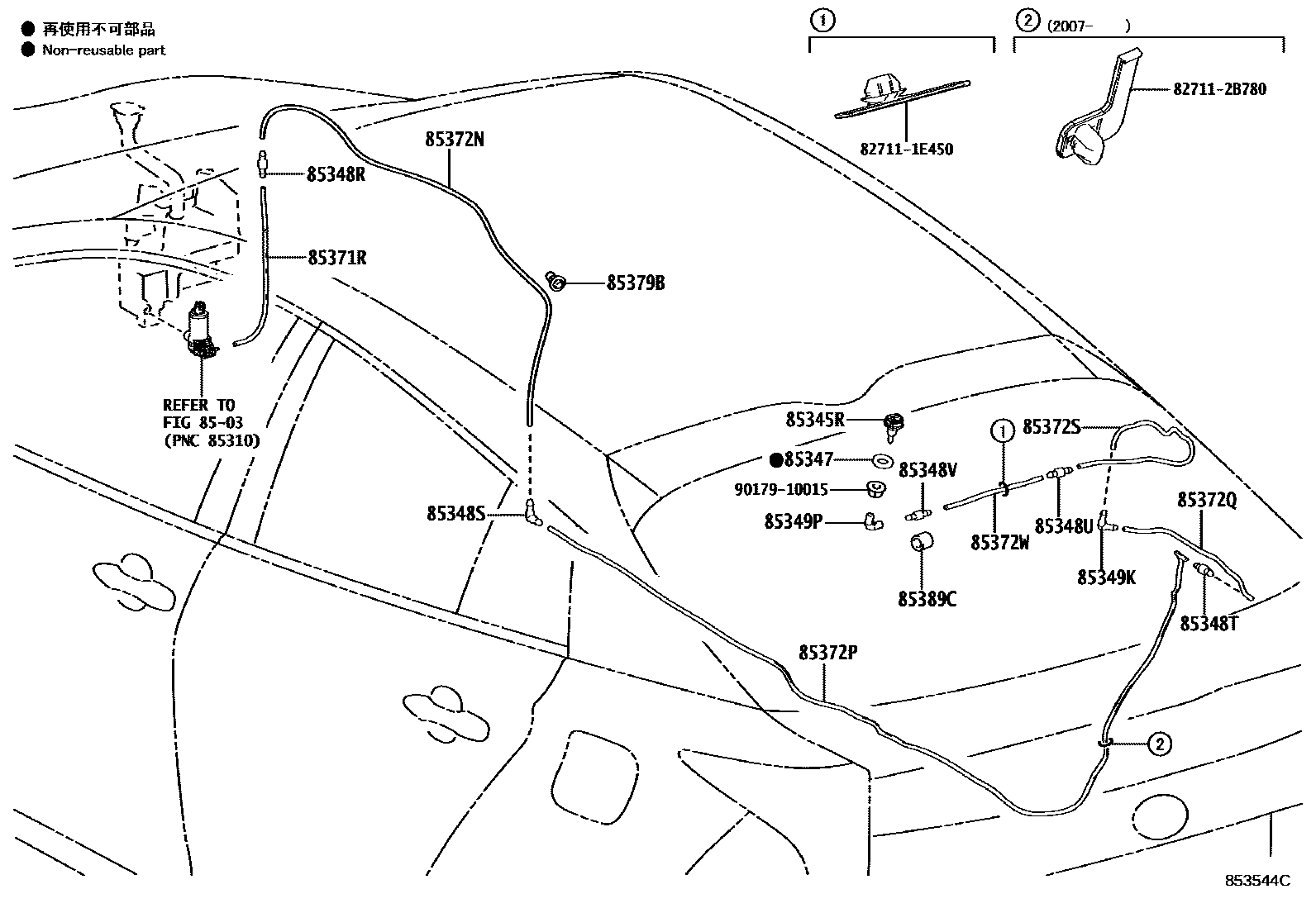

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85347PACKING, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=350
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1355
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2660
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=340
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=510
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=200
85379BGROMMET, WASHER, A
85389CPROTECTOR, WASHER
827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E450
827112B780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B780
9017910015
main90179-10015
21 parts on this diagram · 1 diagram in section
